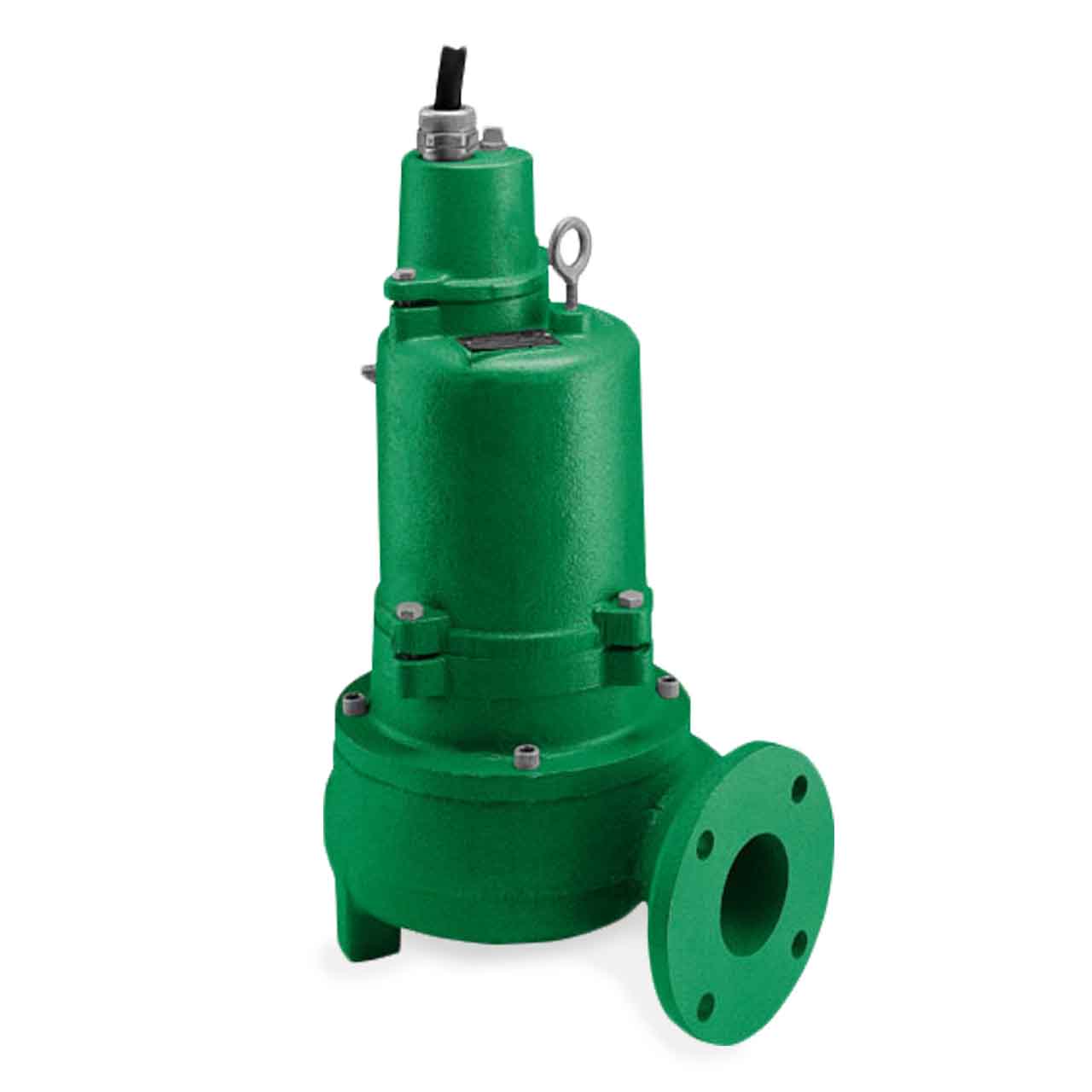

Myers 3WHV20M4-21 Submersible Sewage Pump 2.0 HP 230V 1PH 35' Cord

Myers 3WHV20M4-21 Submersible Sewage Pump 2.0 HP 230V 1PH 35' Cord

Usually ships within 4 weeks

SKU : MYR3WHV20M4-21

In Stock Quantity:0

:
Brand : Myers
$5,696.00 USD
Shipping calculated at checkout.

Description


Myers 3WHV Series Sewage Pump Descriptions

The 3WHV Series Solids Handling Wastewater Pumps are primarily designed for light and medium commercial applications such as schools, industrial and treatment plants, restaurants and motels among others.

This pump can be installed on legs (vertical discharge) or with a quick-disconnect slide rail system. Its ability to handle 2-1/2 inch spherical solids makes it ideal for most light to medium commercial installations.

Myers 3WHV Series Sewage Pump Applications

Designed for Light and Medium Commercial Applications

Myers 3WHV Series Sewage Pump Features

  • Cable Entry System: Provides Double Seal Protection. Cable Jacket Sealed by Compression Fitting. Individual Wires Sealed by Epoxy Potting.
  • Stainless Steel Shaft: Prevents Deflection from Impeller Radial Loads when Pump Operates at Heads Higher than Peak Efficiency Range.
  • Single Shaft Seals: Protect Motor.
  • Pump-Out Vanes: Help Keep Trash from Seal, Reduce Pressure at Seal Faces.
  • Horizontal Discharge Volute Case: 3" Flanged.
  • Vertical Discharge Volute Case: Includes Support Legs. 3" Flanged.
  • Two-Vane Rounded Port Impellers: Handles Solids with Ease at High Operating Efficiencies.
  • Modified Constant Velocity Volute: Offers Quiet Operation, Low Radial Loads Over Extended Portion of Performance Curve.
  • Oil Filled Motor: Maximum Heat Dissipation and Constant Bearing Lubrication.

Specifications

Myers 3WHV20M4-21 Series Sewage Pump Specifications

  • VOLTAGE: 1ø, 230V, 60Hz
  • HORSEPOWER: 2.0 HP
  • AMP DRAW (full load): 12
  • MOTOR TYPE: Enclosed, Oil Cooled Induction
  • RPM: 1750
  • MAXIMUM HEAD: up to 31'
  • MAXIMUM CAPACITY: up to 350 GPM
  • SWITCH TYPE: Manual
  • MINIMUM SUMP DIAMETER: Duplex 60"
  • DISCHARGE PIPE SIZE: 3.0" Flanged, Horizontal
  • MAXIMUM SOLIDS HANDLING SIZE: 2.5"
  • IMPELLER TYPE: Ductile Iron, Enclosed 2-Vane
  • IMPELLER DIAMETER: 6.00"
  • CORD LENGTH: 35'Type SOOW W
  • BODY CONSTRUCTION: Cast Iron, Class 30, ASTM A48
  • MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
  • CONTROL PANEL REQUIRED

Myers 3WHV Series Sewage Pump Performance Curve


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Myers 3WHV/V3WHV Series Sewage Pump Product Resources


Download Myers 3WHV/V3WHV Sewage Pump Data Sheet

Download Myers 3WHV/V3WHV Sewage Pump Specifications

Download Myers 3WHV/V3WHV Sewage Pump Owners Manual

Download Myers 3WHV/V3WHV Sewage Pump Parts List
