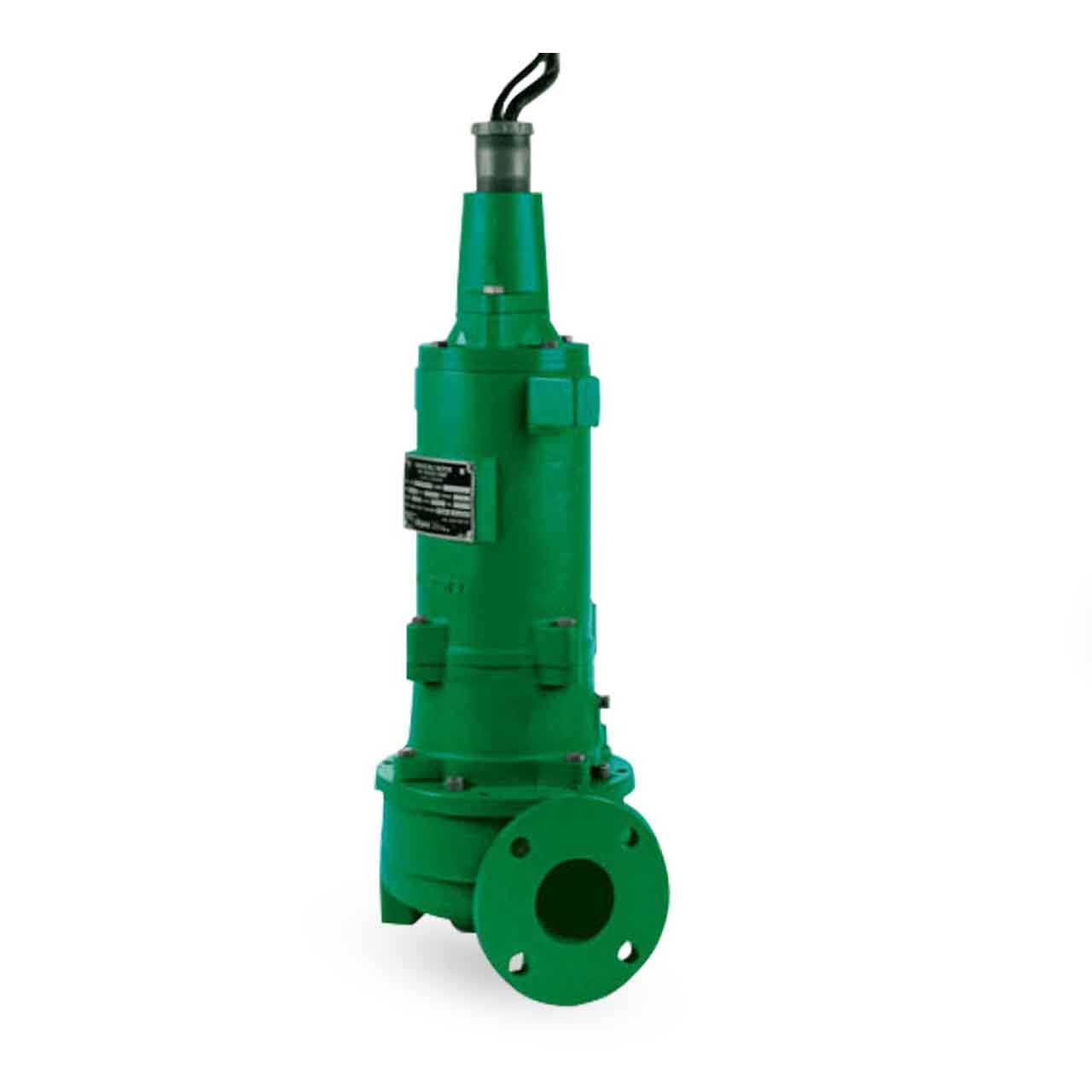

Myers Model 3V/3VX Submersible Wastewater Pump Description

The Myers 3V and 3VX (hazardous location) Submersible Wastewater Pumps pass a full 2-1/2" spherical solid and are the ideal choice when selecting a pump for your next application. Myers rounded port 2-vane enclosed impeller prevents solids from binding or clogging and offer high operating efficiencies to cut your pumping costs. The 3V Series modified constant velocity volute case provides smooth operation over an extended portion of the performance curve for extended seal and bearing life. For use in municipal lift stations, treatment plants and industrial waste applications.

Myers Model 3V/3VX Submersible Wastewater Pump Typical Application

• Municipal Lift Stations
• Treatment Plants
• Industrial Waste Applications

Myers Model 3V/3VX Submersible Wastewater Pump Features

• Cable Entry System Provides Double Seal Protection, Cable Jacket Sealed by Compression Grommet and Individual Wires Sealed by Epoxy Potting.
• Heat Sensor Protects Motor from Burnout Due to Excessive Heat from any Overload Condition. Automatically Resets when Motor has Cooled.
• Motor Stator Heat Shrunk into Housing for Perfect Alignment and Best Heat Transfer. Oil-Filled Motor Conducts Heat and Lubricates Bearings.
• Ball Bearings Upper and Lower Ball Bearings Support Shaft and Rotor and Take Axial and Radial Loads.
• Shaft Seals Double Tandem Mechanical Shaft Seals Protect Motor. Oil-Filled Seal Chamber Provides Continuous Lubrication.
• Seal Leak Probes Detect Water in Seal Housing. Activate Warning Light in Control Panel.
• Heavy 416 SST Shaft Corrosion Resistant.
• Sleeve Bearing takes Radial Shock Load; Provides Flame Path.
• Volute Case Modified Constant Velocity Volute Handles 2-1/2" Solids. 3" ANSI 125 lb. Flange.
• Brass Wear Ring Prevents Rust Buildup and Reduces Leakage and Wear. Replaceable to Restore Original Running Clearances and Pump Efficiencies.
• High Efficiency Impeller 2-Vane with Rounded Ports. Handles 2-1/2" Solids. Pump-Out Vanes Help Keep Trash from Seal; Reduce Pressure to Seal Faces.

Myers 3VX20M4-43 Submersible Wastewater Pump Technical Details

• VOLTAGE: 3ø, 460V, 60Hz
• HORSEPOWER: 2.0 HP
• AMP DRAW (full load): 3.5
• MOTOR TYPE: Oil-Filled for Maximum Heat Dissipation
• RPM: 1750
• MAXIMUM HEAD: up to 42.5'
• MAXIMUM CAPACITY: up to 310 GPM
• SWITCH TYPE: Manual
• DISCHARGE PIPE SIZE: 3.0" Horizontal
• MAXIMUM SOLIDS HANDLING SIZE: 2-1/2"
• IMPELLER TYPE: Ductile Iron, Class 65, ASTM A536, Enclosed 2-Vane
• IMPELLER DIAMETER: Varies
• CORD SIZE: 14-4; Type: SOOW, W
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
• HAZARDOUS DUTY
• CONTROL BOX REQUIRED

Myers Model 3V/3VX Submersible Wastewater Pump Curve
