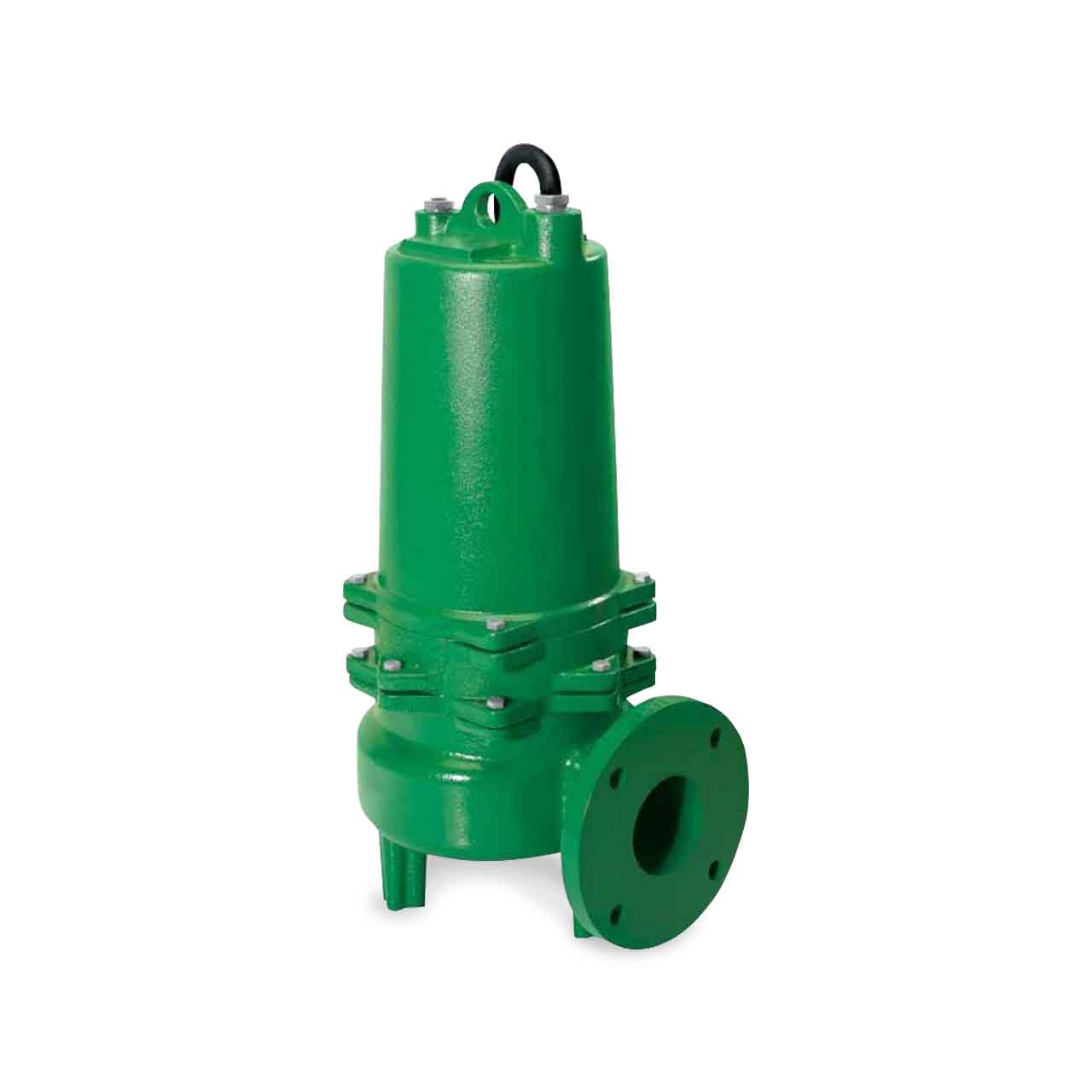

Myers 3RMW15M2-03 Submersible Vortex Wastewater Pump 1.5 HP 208V 3PH 3450 RPM 20' Cord
Myers 3RMW15M2-03 Submersible Vortex Wastewater Pump 1.5 HP 208V 3PH 3450 RPM 20' Cord
SKU : MYR3RMW15M203
In Stock Quantity:0
:
Brand
:
Regular price
$3,000.00 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Myers 3RMW Series Vortex Wastewater Pump Description
Myers 3RMW Submersible Wastewater Vortex Pumps are the right choice when difficult to pump fibrous or stringy solids are to be expected. The 3RMW series provides smooth, vibration-free operation over the entire performance curve.
Myers 3RMW Series Vortex Wastewater Pump Applications
Light and medium commercial applications
Myers 3RMW Series Vortex Wastewater Pump Features
- Motor Housing: Cast Iron for Efficient Heat Transfer and Corrosion Resistance.
- Motor: 1, 1-1/2, 2 and 3 HP Single or Three Phase, 60 Hz, 3450 RPM. 1-1/2, 2 and 3 HP Single or Three Phase, 60 Hz, 1750 RPM. Single Phase PSC Motors Have Built-In Winding Overload Protection, Oil-Cooled and Lubricated.
- Ball Bearings: Upper and Lower Ball Bearings Support Rotor and Take Radial and Thrust Loads.
- Seal Leak Probes: Detect Water Leakage in Seal Housing. Activates Warning Light (Dual Seal Models Only) .
- Pump Out Vanes: Help Keep Trash From Seal, Reduces Pressure at Seal Faces.
- Shaft Seals: Carbon and Ceramic Faces, Optional Tungsten Carbide.
- Recessed Open Vane Impeller: Ductile Iron Construction.
-
High Efficient Cast Iron Volute: Corrosion Resistant 3" Flanged Horizontal Discharge with Legs. Recessed Impeller Greatly Increases Bearing Life by Reducing Radial Load.
Operates Without Vibration or Cavitation Over Entire Performance Curve. Operates Near Shutoff Without Harming Pump. - Power and Control Cords: Jacket Sealed with Compression Fittings. Individual Wires Potted with Epoxy to Prevent Wicking in Case of Cord Damage.
Specifications
Specifications
Myers 3RMW15M2-03 Vortex Wastewater Pump Specifications
- VOLTAGE: 3ø, 208V, 60Hz
- HORSEPOWER: 1.5 HP
- AMP DRAW (full load): 8.8
- MOTOR TYPE: Enclosed, Oil Cooled Induction
- RPM: 3450
- MAXIMUM HEAD: up to 39'
- MAXIMUM CAPACITY: up to 200 GPM
- SWITCH TYPE: Manual
- MINIMUM SUMP DIAMETER: 48"
- DISCHARGE PIPE SIZE: 3.0" Flanged, Horizontal
- MAXIMUM SOLIDS HANDLING SIZE: 2.0"
- IMPELLER TYPE: Ductile Iron, Recessed, Open Vane
- IMPELLER DIAMETER: 3.50"
- CORD LENGTH: 20'
- CORD SIZE: 16-4; Type SOOW / SJOOW
- BODY CONSTRUCTION: Cast Iron, Class 30, ASTM A48
- MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
- CONTROL PANEL REQUIRED
Myers 3RMW Series Vortex Wastewater Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Myers 3RMW Series Vortex Wastewater Pump Product Resources
Download Myers 3RMW Series Vortex Wastewater Pump Data Sheet
Download Myers 3RMW Series Vortex Wastewater Pump Specifications
Download Myers 3RMW Series Vortex Wastewater Pump Owners Manual
