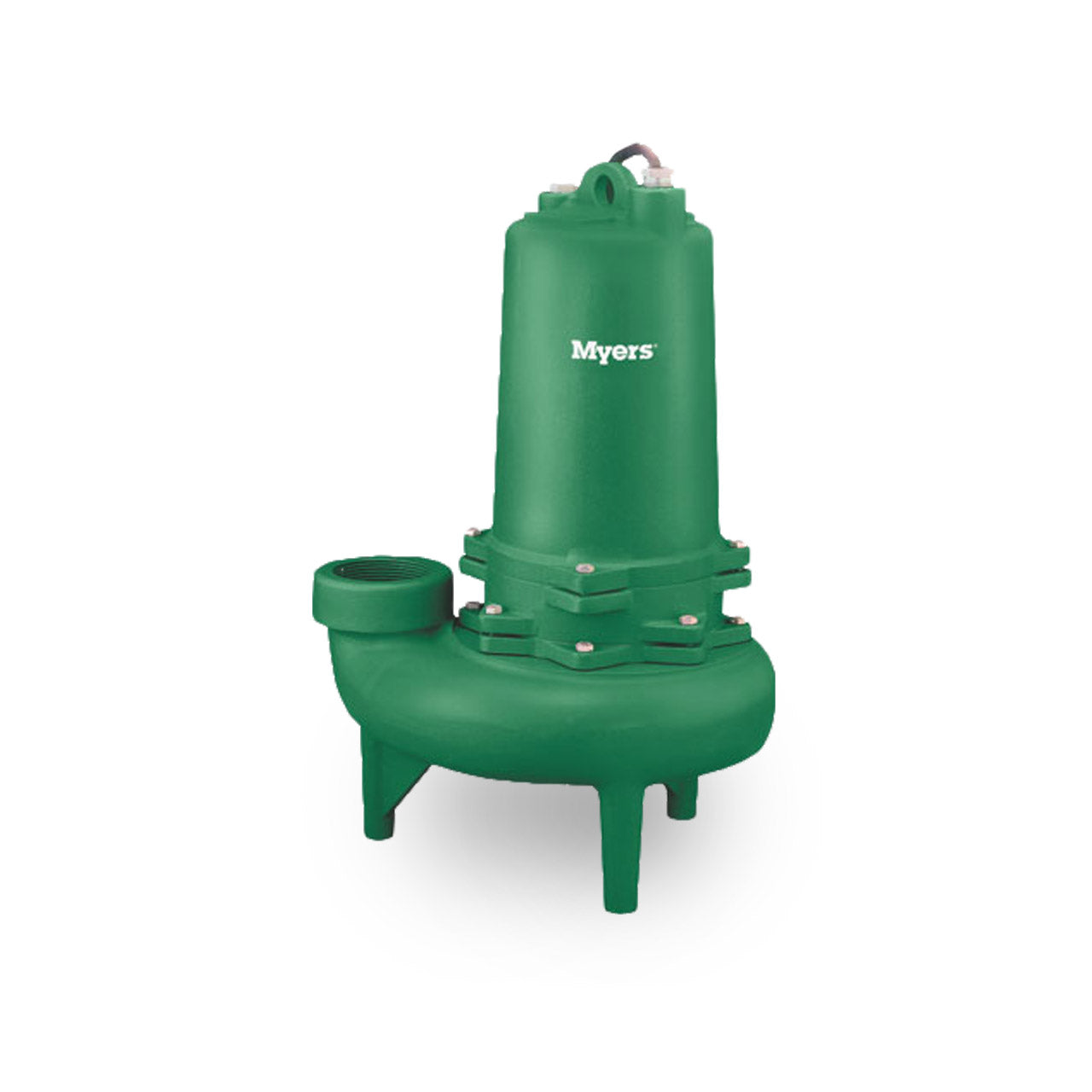

Myers 3MW20DM2-01 Sewage Pump 2.0 HP 208V 1PH 3450 RPM 20' Cord

Myers 3MW20DM2-01 Sewage Pump 2.0 HP 208V 1PH 3450 RPM 20' Cord

Usually ships within 4 weeks

SKU : MYR3MW20DM2-01

In Stock Quantity:0

:
Brand : Myers
$3,856.00 USD
Shipping calculated at checkout.

Description


Myers 3MW Series Description

The heavy-duty Myers 3MW series sewage pumps are designed for use in residential raw sewage and light commercial applications. 3MW pumps are available in single and double seal configuration. The enclosed two vane impeller provides high efficiency pumping and easily handles trashy solids normally found in sewage applications. The series is offers with vertical discharge and easily adapts to a quick-disconnect slide rail.

Myers 3MW Series Applications

  • Residential and commercial sewage/dewatering
  • High Capacity Sump
  • Effluent
  • Sewage Lift Stations

Myers 3MW Series Features

  • Two-vaned rounded port impellers.
  • Offered in two speeds
  • Hydraulic end virtually maintenance- free
  • Volute seal ring replaceable in minutes
  • Oil-filled motor for constant bearing lubrication
  • High torque, permanent split capacitor (PSC), single-phase motors; no starting switches or relays
  • Optional seal leak probe (dual seal motors only)
  • Current and temperature overload (single phase only)

Specifications

Myers 3MW Series Specifications

  • BODY CONSTRUCTION: cast iron
  • HORSEPOWER: Available in 1 to 3 HP
  • RPM: 1750 and 3450
  • MAXIMUM HEAD: up to 92' ft.
  • MAXIMUM CAPACITY: up to 330 GPM
  • SWITCH TYPE: control panel required
  • MINIMUM SUMP DIAMETER: Simplex = 30" ( 762 mm)
  • MINIMUM SUMP DIAMETER: Duplex = 48" ( 1219.2 mm)
  • DISCHARGE PIPE SIZE: 3" (101.6 mm) flanged
  • MAXIMUM SOLIDS HANDLING SIZE: 1750 RPM: 2.5" / 3450 RPM: 2.0"
  • AMP DRAW (full load): Motor and Voltage Dependent
  • CORD LENGTH: 25'; type SOOW W
  • VOLTAGE: Available in 208v/230v 1-phase OR 208v/230v/460v/575v 3-phase
  • MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
  • MOTOR: Enclosed, oil cooled induction

Myers 3MW Series Performance Curve



WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Myers 3MW Series Product Resources


Download Myers 3MW Series Brochure

Download Myers 3MW Series Installation & Service Manual

Download Myers 3MW Series Performance Data Sheet

Download Myers 3MW Series Curve Cut Sheet

Download Myers 3MW Series Typical Installation Outline

Download Myers 3MW Series Specifications Sheet

Download Myers 3MW Series Lift Out Rail Specifications

Download Myers 3MW Series 3450 RPM Rail Installation

Download Myers Submersible Solids Handling Brochure
