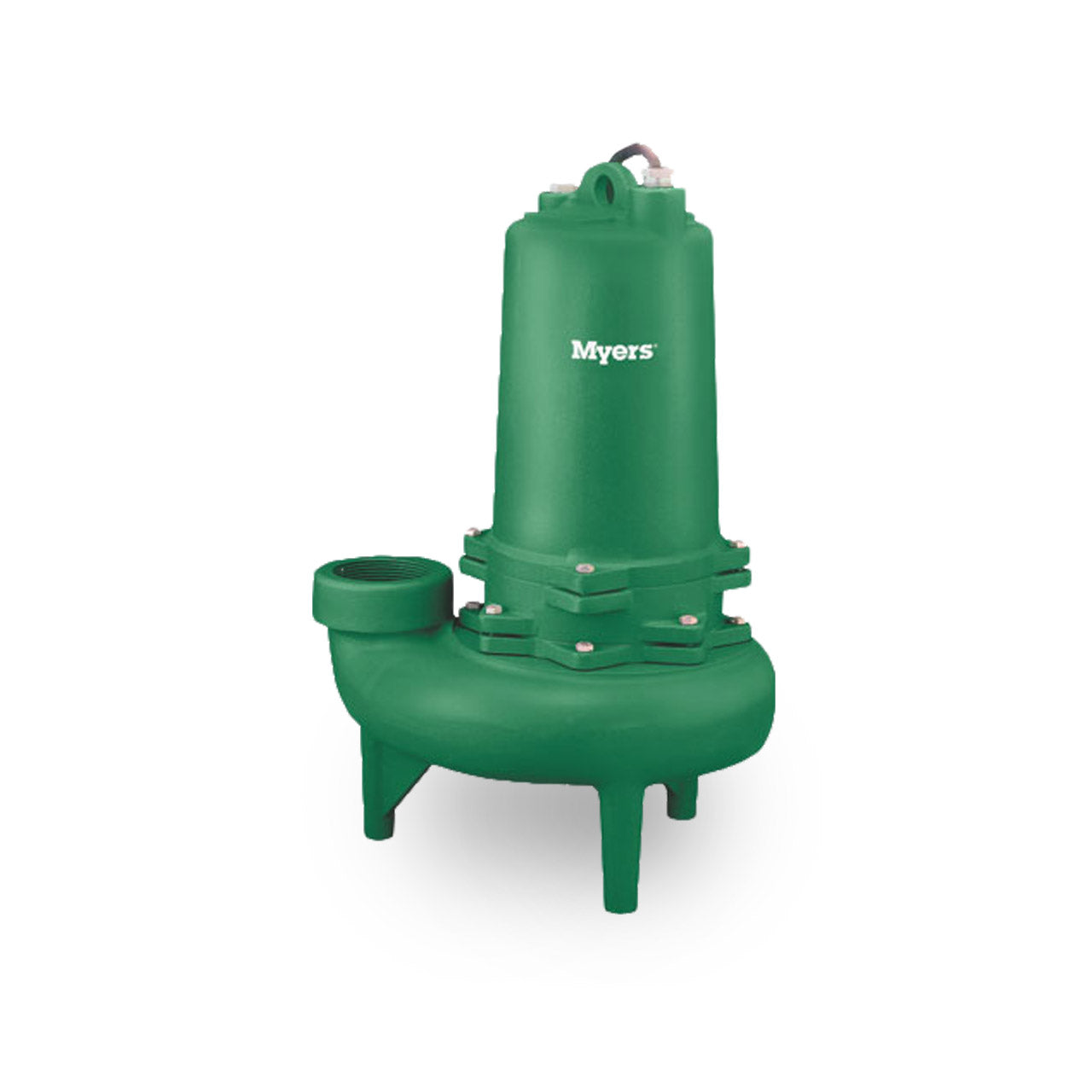

Myers 3MW Series Solids Handling Pump Description

The heavy-duty Myers 3MW Series Solids Handling Wastewater Pumps are designed for use in residential raw sewage and light commercial applications. 3MW pumps are available in single and dual seal configurations. The enclosed two-vane impeller provides high efficiency pumping and easily handles trashy solids normally found in sewage applications. This series is offered with vertical discharge and easily adapts to a quick-disconnect slide rail system.

Myers 3MW Series Solids Handling Pump Applications

• Residential and Commercial Sewage/Dewatering
• High Capacity Sump
• Effluent
• Sewage Lift Stations

Myers 3MW Series Solids Handling Pump Features

• Motor Housing: Cast Iron for Efficient Heat Transfer and Corrosion Resistance.
• Motor: 1, 1-1/2, 2 and 3 HP Single or Three Phase, 60 Hz, 3450 RPM. 1-1/2, 2 and 3 HP Single or Three Phase, 60 Hz, 1750 RPM. Single Phase PSC Motors have Built-In Winding Overload Protection, Oil-Cooled and Lubricated.
• High Efficient Cast Iron Volute: Corrosion Resistant. 3” NPT Vertical Discharge with Legs.
• Enclosed Two Vane Impeller: High Efficiency. Standard Cast Iron Construction.
• Volute/Impeller Seal Ring: Maintains High Efficiency and Reduces Recirculation. Replaceable.
• Pump Out Vanes: Help Keep Trash from Seal, Reduces Pressure at Seal Faces.
• Ball Bearings: Upper and Lower Ball Support Rotor. Take Radial and Thrust Loads.
• Power and Control Cords: Jacket Sealed with Compression Fittings. Individual Wires Potted with Epoxy to Prevent Wicking in Case of Cord Damage.
• Shaft Seals: Carbon and Ceramic Face. Dual Tandem Seals Extends Motor Life. Optional Tungsten Carbide.
• Seal Leak Probes: Optional Probes (Dual Seal Only) Detect Water Leakage in Seal Housing. Activates Warning Light.

Myers 3MW 3MW15M2-21 Solids Handling Pump Specifications

• VOLTAGE: 1ø, 230V, 60Hz
• HORSEPOWER: 1.5 HP
• AMP DRAW (full load): 12.8
• MOTOR: Enclosed, Oil Cooled Induction
• RPM: 3450
• MAXIMUM HEAD: 64’
• MAXIMUM CAPACITY: 158 GPM
• SWITCH TYPE: Manual
• MINIMUM SUMP DIAMETER: Duplex = 48"
• DISCHARGE PIPE SIZE: 3" Flanged
• MAXIMUM SOLIDS HANDLING SIZE: 2.0"
• IMPELLER TYPE: Ductile Iron, class 65 ASTM A536, Enclosed 2-Vane Impeller
• IMPELLER DIAMETER: 4.00" Standard
• CORD LENGTH: 20' Type SOOW W
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM LIQUID TEMPERATURE: 140°F (60°C)
• CONTROL BOX REQUIRED

Myers 3MW Series Solids Handling Pump Performance Curve
