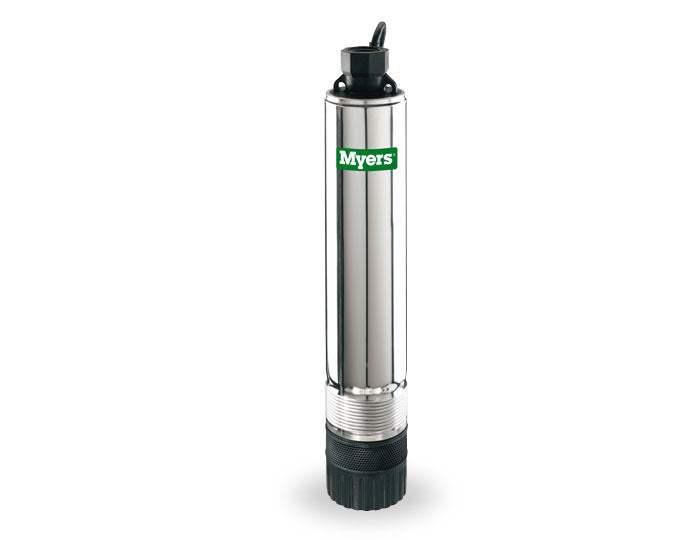

Myers 20MD05121-01 Submersible Effluent Pump 20 GPM 0.5 HP 115V 1PH 10' Cord

Myers 20MD05121-01 Submersible Effluent Pump 20 GPM 0.5 HP 115V 1PH 10' Cord

Usually ships within 2 weeks

SKU : MYR20MD05121

In Stock Quantity:0

:
Brand : Myers
$706.86 USD
Shipping calculated at checkout.

Description


Myers MD Series Submersible Effluent Pump Description

The Myers MD Series 4" Stainless Steel Sumbersible Effluent Pumps are capable of drawing down to 4-1/2" (a standard NEMA 4" only draws down to 13-1/2"). Lower amp draw reduces operating costs and extends the life of the float switch contacts. Pumped fluid flows around motor providing cooling and sound dampening. Ideal for on-site filtered and cistern applications.

Myers MD Series Submersible Effluent Pump Typical Applications

  • On-Site Filtered Effluent
  • Cistern Pumping

Myers MD Series Submersible Effluent Pump Features

  • Superior Drawdown Capability to 4-1/2" (114 mm) vs. 13-1/2" (343 mm) on a Standard NEMA 4"
  • Lower Operating Costs 25% Reduced Amp-Draw (9.5A vs. 12.7A on a Standard NEMA 4")
  • Cooler and Quieter Designed to Route Pumped Fluid Over Motor for Cooler Operation and Reduced Noise - Eliminates Need for Expensive "Flow-Inducer Sleeves"
  • Proven and Patented Field-Proven Staging System Utilizes Patented Ceramic Wear Surface and Features Industry-Exclusive "Dry-Run" Capabilities
  • Built to Last Stainless Steel and Reinforced Thermoplastic Construction; Heavy Duty, Double-Seal, Double Ball-Bearing Motor with 7/16" Stainless Steel Shaft
  • Thermal Protection Overload Protection with Automatic Reset when Motor Cools to a Safe Operating Temperature
  • Protected from Debris Self-Lubricating Nylatron® Shaft Bearing Protects Wear Surface From Sand and Abrasives
  • Serviceable Screen Field-Serviceable Composite Intake Screen - Allows up to 0.80" Solids.

Specifications

Myers 20MD05121-01 Submersible Effluent Specifications

  • VOLTAGE: 1ø, 115V, 60Hz
  • HORSEPOWER: 0.5 HP
  • AMP DRAW (full load): 9.5
  • MAXIMUM HEAD: 148’
  • MAXIMUM CAPACITY: 32 GPM
  • DISCHARGE PIPE SIZE: 1-1/4"
  • MAXIMUM SOLIDS HANDLING: 0.08"
  • CORD LENGTH: 10' Type: SJTW-A, SJTW
  • BODY CONSTRUCTION: Stainless Steel/Composite
  • MAXIMUM LIQUID TEMPERATURE: 86°F (30°C)
  • DUTY RATING: Continuous

Myers MD Series Submersible Effluent Pump Performance Data



WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Myers MD Series Submersible Effluent Pump Product Resources


Download Myers MD Series Submersible Effluent Pump Specification Data

Download Myers MD Series Submersible Effluent Pump Series Installation & Service Manual
