Myers MD Series Submersible Effluent Pump Description

The Myers MD Series 4" Stainless Steel Submersible Effluent Pumps are capable of drawing down to 4-1/2" (a standard NEMA 4" only draws down to 13-1/2"). Lower amp draw reduces operating costs and extends the life of the float switch contacts. Pumped fluid flows around motor providing cooling and sound dampening. Ideal for on-site filtered and cistern applications.

Myers MD Series Submersible Effluent Pump Typical Applications

• On-Site Filtered Effluent
• Cistern Pumping

Myers MD Series Submersible Effluent Pump Features

• Superior Drawdown Capability to 4-1/2" (114 mm) vs. 13-1/2" (343 mm) on a Standard NEMA 4"
• Lower Operating Costs 25% Reduced Amp-Draw (9.5A vs. 12.7A on a Standard NEMA 4")
• Cooler and Quieter Designed to Route Pumped Fluid Over Motor for Cooler Operation and Reduced Noise - Eliminates Need for Expensive "Flow-Inducer Sleeves"
• Proven and Patented Field-Proven Staging System Utilizes Patented Ceramic Wear Surface and Features Industry-Exclusive "Dry-Run" Capabilities
• Built to Last Stainless Steel and Reinforced Thermoplastic Construction; Heavy Duty, Double-Seal, Double Ball-Bearing Motor with 7/16" Stainless Steel Shaft
• Thermal Protection Overload Protection with Automatic Reset when Motor Cools to a Safe Operating Temperature
• Protected from Debris Self-Lubricating Nylatron® Shaft Bearing Protects Wear Surface From Sand and Abrasives
• Serviceable Screen Field-Serviceable Composite Intake Screen - Allows up to 0.80" Solids.

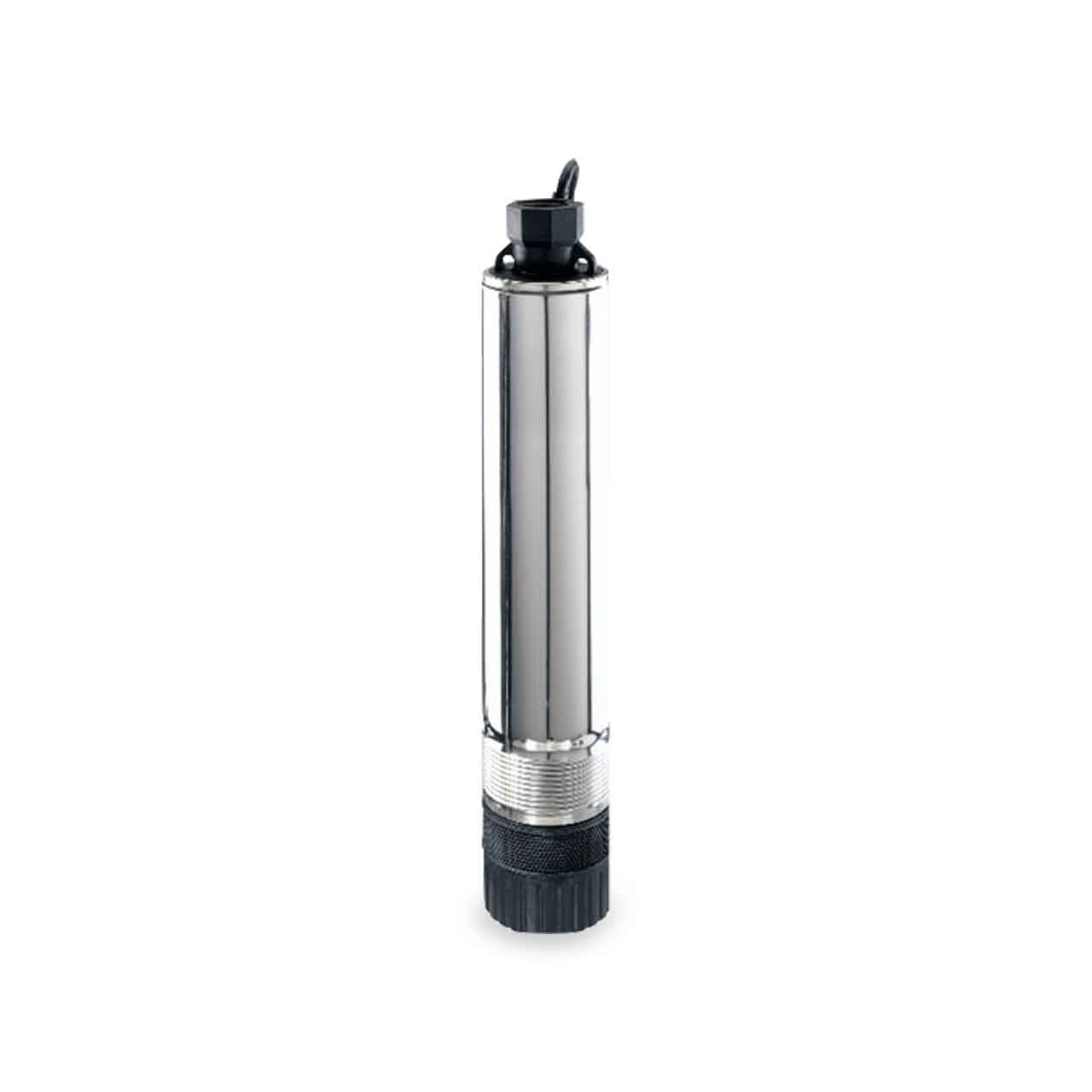

Myers 10MD05121 Submersible Effluent Pump Specifications

• VOLTAGE: 1ø, 115V, 60Hz
• HORSEPOWER: 0.5 HP
• AMP DRAW (full load): 11.0
• MAXIMUM HEAD: 230’
• MAXIMUM CAPACITY: 18 GPM
• DISCHARGE PIPE SIZE: 1-1/4"
• MAXIMUM SOLIDS HANDLING: 0.08"
• CORD LENGTH: 10' Type: SJTW-A, SJTW
• BODY CONSTRUCTION: Stainless Steel/Composite
• MAXIMUM LIQUID TEMPERATURE: 86°F (30°C)
• DUTY RATING: Continuous

Myers MD Series Submersible Effluent Pump Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Myers MD Series Submersible Effluent Pump Product Resources

Download Myers MD Series Submersible Effluent Pump Specification Data

Download Myers MD Series Submersible Effluent Pump Series Installation & Service Manual
