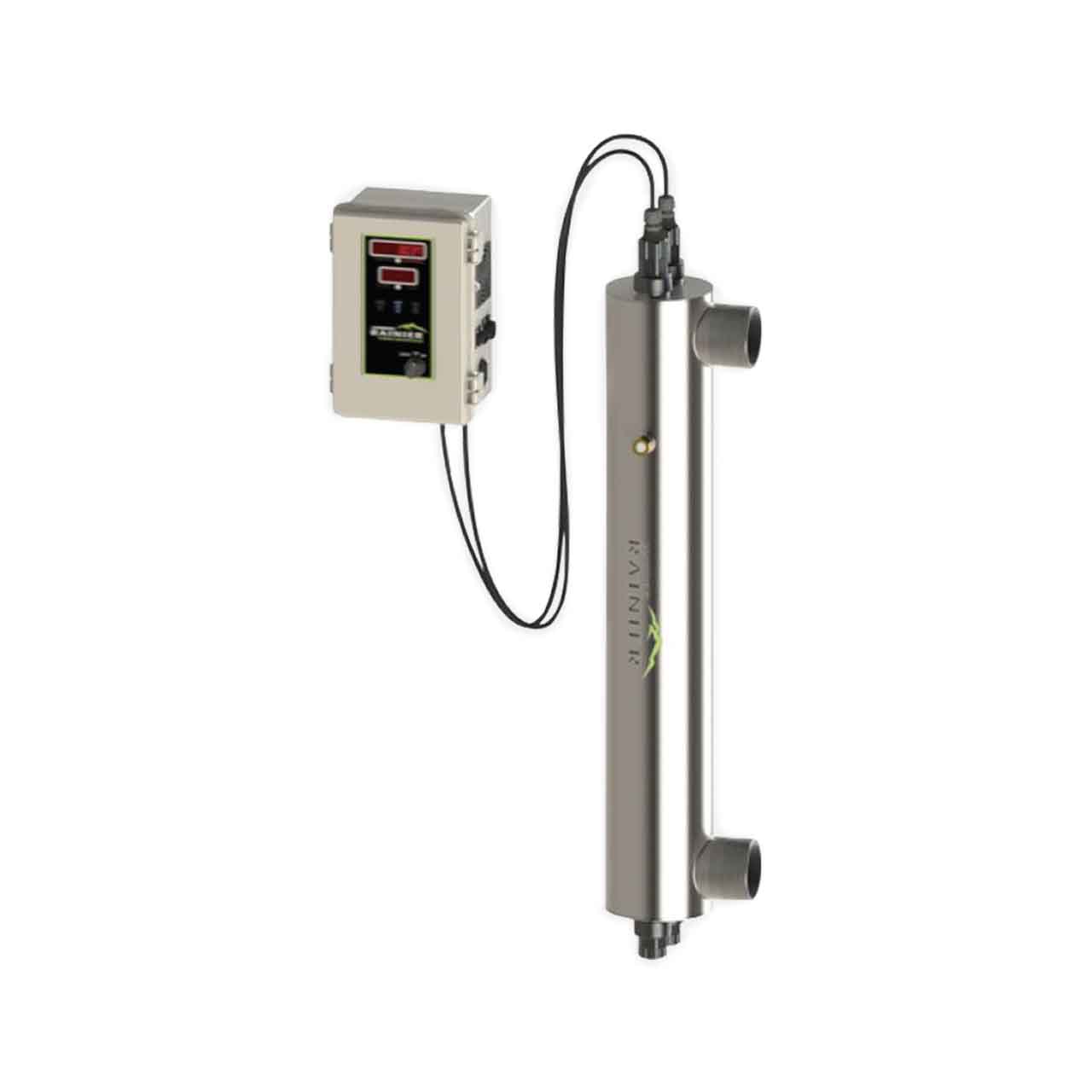

Luminor RAINIER 6.0 Light Commercial UV System

LUMINOR's RAINIER 6.0 model of UV water treatment systems is feature laden and includes a discrete 254nm Teflon™-based UV sensor and integral 4-20mA output and solenoid ready capabilities. Manufactured from 316L stainless steel, these pressure vessels are designed & manufactured to ASME standards. A bayonet style lamp connector allows for easy lamp change without the need for additional tools. For increased power density, RAINIER incorporates high quality low pressure, amalgam (LP-AM) coated UV lamps offering a consistent output over their 12,000 hour life. Monitoring is provided through an integral LED display which in addition to the UV output, displays remaining lamp life, total running hours, audible & visual lamp failure and remote-on. Whether you are looking to control microbiological (bacteria & virus) issues in both hot or cold water with UVT levels as low as 50% or to reduce TOC in industrial grade waters, RAINIER has you covered.

Luminor RAINIER 6.0 Light Commercial UV Applications:

• DISINFECTION: Choose Your Required Dose for Applications that Include Restaurants, Nursing Homes, Campgrounds, Agricultural, Food Services, Schools, Marine, ect.
• HOT WATER (HW): For Use in Hot Water Applications Including Recirculation Loops, Showers, Cooling Towers, ect., Designed for the Reduction of Legionella.
• LOW UVT (50): For Applications where Water Quality may Approach 70% UVT or Less, Choose the Low UTV Systems to Increase the Operational Performance and Reduce Nuisance Alarms.
• TOC: For the Reduction of TOC (Total Organic Carbon) using UV Lamps at 185 nm Output.

Luminor RAINIER 6.0 Light Commercial UV System Features:

• Available in 110V/60Hz or 230V/50-60Hz.
• Discrete 254nm Teflon Based UV Sensor for Continuous UV Monitoring with the Added Benefit of Anti-Fouling Materials.
• 316L Stainless Steel, Polished Reactors.
• Designed & Manufactured to ASME Pressure Vessel Standards.
• Reliable, Industry Proven Low Pressure Amalgam (LP-AM) Coated UV Lamps with Ceramic Bases for Durability, 12,000 Hour Lamp Life.
• Uniform Lamp Output in Both Hot and Cold Applications.
• Flexible Vertical or Horizontal Installation.
• User Friendly Bayonet Style Lamp Connector (quick 1/4 turn removal with no extra tools needed).
• True Gland Seal Retaining Nut with Positive Stop.
• Constant Current Electronic Ballasts in a Splash-Proof (IP-54) Case with Audible and Visual Lamp Failure Indicators.

Luminor RAINIER 6.0 Light Commercial UV System Specifications:

• System: LR6-1105, LR6-1105-HW, LR6-1105-50 & LR6-1105-TOC
• Application: POE (point-of-entry)
• Flow Rate: 110GPM (416 lpm), 64GPM (242 lpm), 36GPM (136 lpm) & 22GPM (83 lpm)
• Inlet/Outlet Port Size: 2.5” FNPT
• Electrical: 230 V
• Power Watts: 320W
• UV Lamp for LR6-1105 & LR6-1105-50: RL-720A (2 required)
• UV Lamp for LR6-1105-HW: RL-720A-HW (2 required)
• UV Lamp for LR6-1105-TOC: RL-720A-TOC (2 required)
• Quartz Sleeves: RQ-720 (2 required)
• Controller: RB-R2.2

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Luminor RAINIER 6.0 Product Resources:

Download Luminor RAINIER 6.0 Light Commercial UV System Specifications

Download Luminor RAINIER 6.0 Light Commercial Manual
