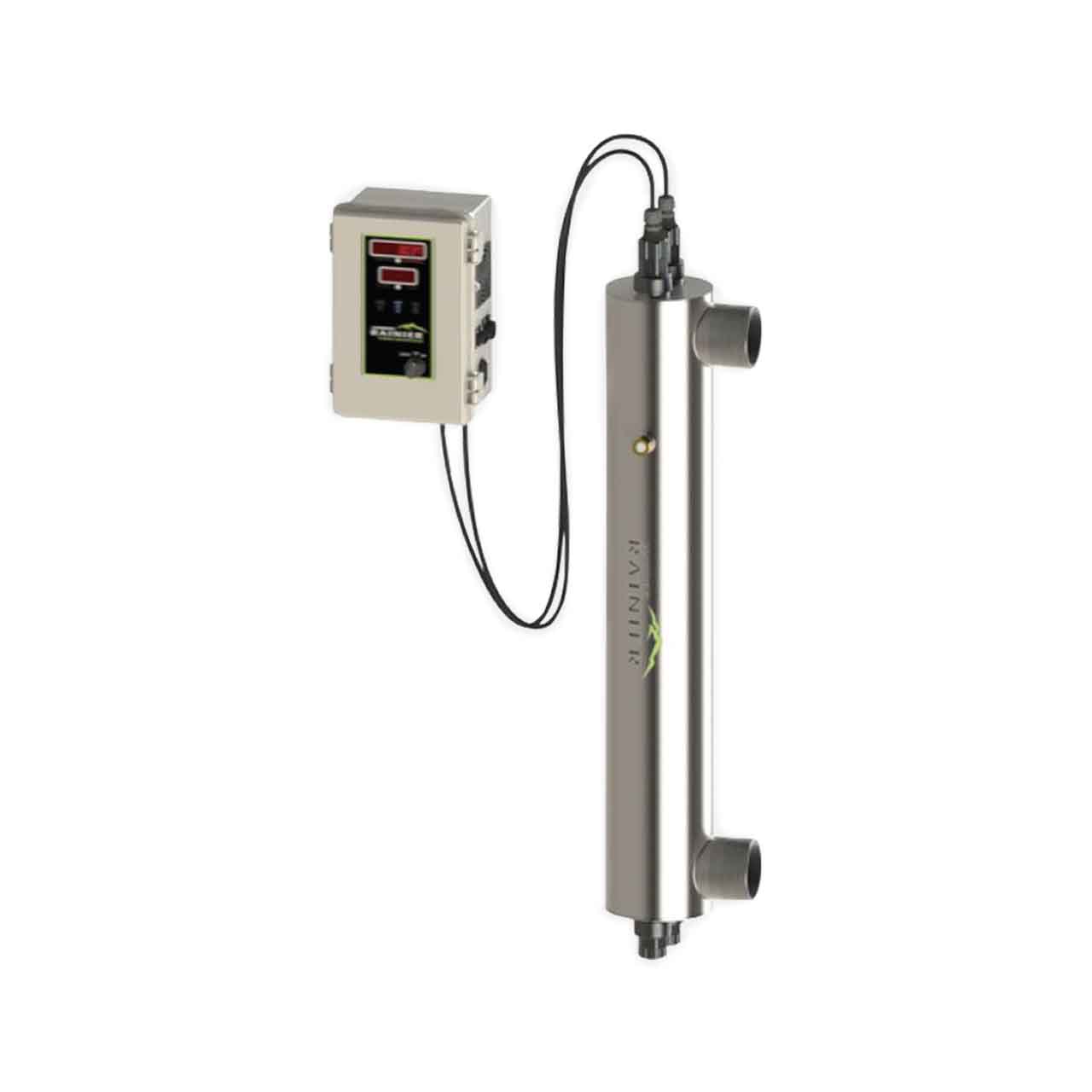

Luminor RAINIER 5.0 Light Commercial UV System

LUMINOR's RAINIER 5.0 model is a commercial water treatment system, designed with upgradeability in mind. The reactor comes with an integral UV sensor port that will accept the addition of an optional UV sensor module at a future date. If a monitor is not required, an integral visual glow plug is provided as an extra way to ensure that your UV lamp is illuminated. Manufactured from 316L stainless steel, these pressure vessels are designed & manufactured to ASME standards. A bayonet style lamp connector allows for easy lamp change without the need for additional tools. For increased power density, RAINIER incorporates high quality low pressure, amalgam (LP-AM) coated UV lamps offering a consistent output over their 12,000 hour life. Monitoring is provided through an integral LED display which outputs remaining lamp life, total running hours, audible & visual lamp failure, remote-on and solenoid ready. Whether you are looking to control microbiological (bacteria & virus) issues in both hot or cold water with UVT levels as low as 50% or to reduce TOC in industrial grade waters, RAINIER has you covered.

Luminor RAINIER 5.0 Light Commercial UV Applications:

• DISINFECTION: Choose Your Required Dose for Applications that Include Restaurants, Nursing Homes, Campgrounds, Agricultural, Food Services, Schools, Marine, ect.
• HOT WATER (HW): For Use in Hot Water Applications Including Recirculation Loops, Showers, Cooling Towers, ect., Designed for the Reduction of Legionella.
• LOW UVT (50): For Applications where Water Quality may Approach 70% UVT or Less, Choose the Low UTV Systems to Increase the Operational Performance and Reduce Nuisance Alarms.
• TOC: For the Reduction of TOC (Total Organic Carbon) using UV Lamps at 185 nm Output.

Luminor RAINIER 5.0 Light Commercial UV System Features:

• Available in 110V/60Hz or 230V/50-60Hz .
• Modular Control Panel with LED Display for UV Output, Remaining Lamp LIfe, Total Running Hours, Audible & Visual Lamp Failure, Remote On and Solenoid Ready.
• 316L Stainless Steel, Polished Reactors, with Integral Sensor Port to Allow for Sensor Upgradeability in the Future (comes standard with visual glow plug).
• Designed & Manufactured to ASME Pressure Vessel Standards.
• Reliable, Industry Proven Low Pressure Amalgam (LP-AM) Coated UV Lamps with Ceramic Bases for Durability, 12,000 Hour Lamp Life.
• Uniform Lamp Output in Both Hot and Cold Applications.
• Flexible Vertical or Horizontal Installation.
• User Friendly Bayonet Style Lamp Connector (quick 1/4 turn removal with no extra tools needed).
• True Gland Seal Retaining Nut with Positive Stop.
• Constant Current Electronic Controller in a Splash-Proof (IP-54) Case with Audible and Visual Lamp Failure Indicators.

Luminor RAINIER 5.0 Light Commercial UV System Specifications:

• System: LR5-1405, LR-1405-HW, LR-1405-50 & LR-1405-TOC
• Application: POE (point-of-entry)
• Flow Rate: 140GPM (530 lpm), 81GPM (306 lpm), 45GPM (170 lpm) & 28GPM (106 lpm)
• Inlet/Outlet Port Size: 3.0” FNPT
• Electrical: 230 V
• Power Watts: 360W
• UV Lamp for LR5-1405 & LR5-1405-50: RL-843A (2 required)
• UV Lamp for LR5-1405-HW: RL-843A-HW (2 required)
• UV Lamp for LR5-1405-TOC: RL-843A-TOC (2 required)
• Quartz Sleeves: RQ-843 (2 required)
• Controller: RB-R2.2
