Discontinued - Commercial/ Industrial/ Municipal

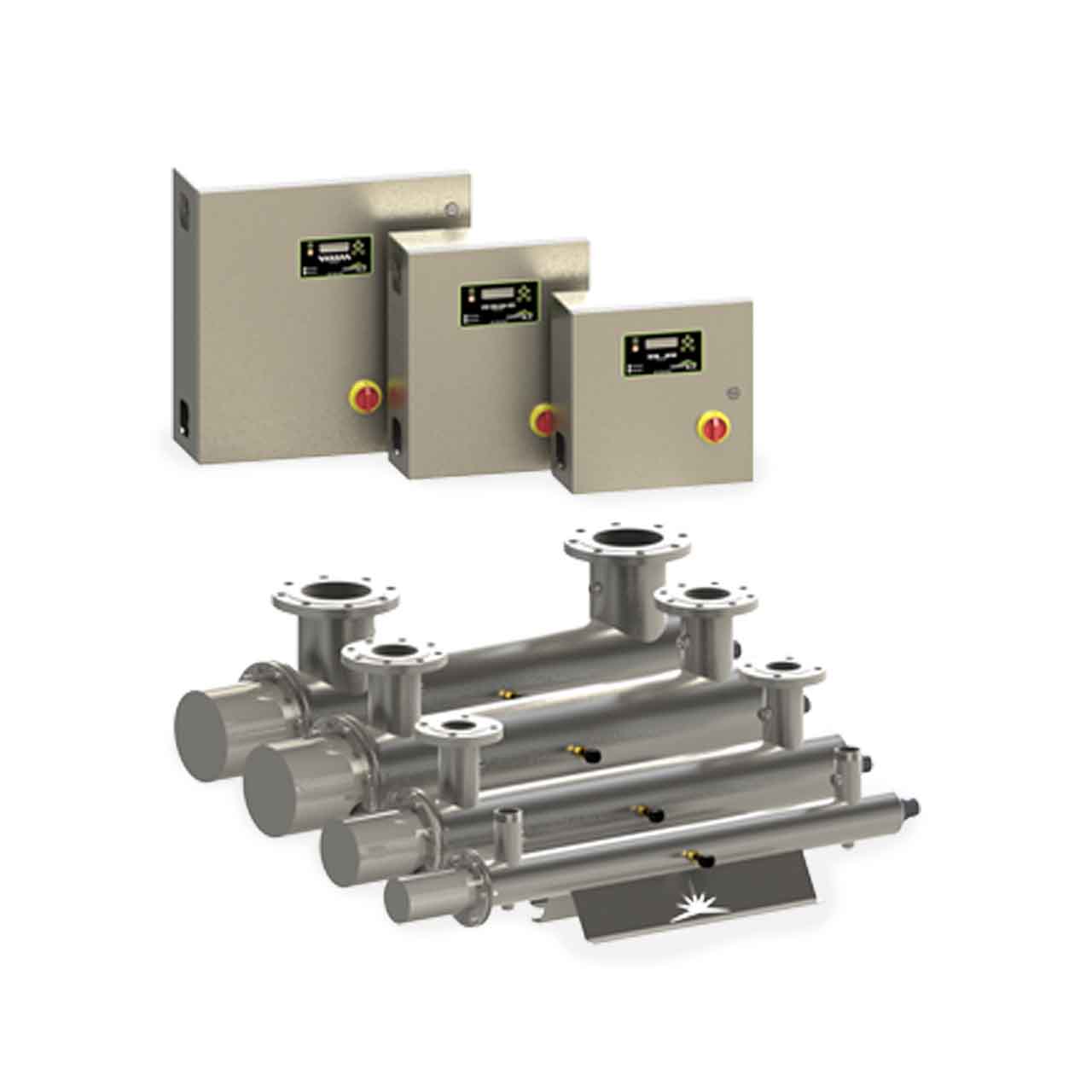

Luminor K2 6.0 Commercial UV System

LUMINOR's K2 line of disinfection systems are specifically designed and built to handle the challenging environments of process and manufacturing industries as well as pool and leisure applications.

K2 6.0 Includes a discrete 254 nm Teflon Based UV sensor to continuously monitor the V output produced by the system. Displayed on the LCD screen in either "% UV Intensity" or "mW/cm²", K2 6.0 provides the information that these demanding commercial/industrial systems require. Constructed with highly polished 316L stainless steel reactors and stainless steel enclosures, K2 6.0 uses proven low pressure amalgam (LP-AM) lamp technology for maximum power density and efficiency all in a small footprint.

Controlling microbiological (bacteria & virus) issues in water ( or other viscous fluids), including E.coli, Cryptosporidium and Giardia Lamblia is safe and simple with LUMINOR UV systems. UV does not affect the aesthetic quality of the fluid and the process does not add anything to the fluid, nor create any disinfection by-products.

Covering a wide variety of applications in both regulated and unregulated markets, K2 offers environmentally friendly disinfection at lower capital and operating costs than traditional disinfection solutions.

Luminor K2 6.0 Commercial UV Applications:

Food & Beverage, Pharmaceutical, Swimming Pools, Water Reuse, Ultrapure, Recreational Water, Aquaculture & Municipal

Luminor K2 6.0 Commercial UV System Product Features:

• Discrete 254nm Teflon Based UV Sensor (user selectable output) with 4-20mA Output and Solenoid-Ready.
• Modular 304 Stainless Steel Control Panel with LCD Display for Remaining Lamp Life, Total Running Hours, Audible & Visual Lamp Failure, Remote-On and Dry Contacts.
• 316L Stainless Steel, Polished Reactors with Flanged End-Plate.
• Designed & Manufactured to ASME Pressure Vessel Standards.
• Flow Rates Stated as 95% UVT at a Dose of 30 mJ/cm²
• User Friendly Bayonet Style Lamp Connectors (quick 1/4 turn removal with no extra tools needed).
• True Gland Seal Retaining Nuts with Positive Stop.
• Reliable, Industry Proven Low Pressure Amalgam (LP-AM) Coated UV Lamps with Ceramic Bases for Durability and a 12,000 Hour Lamp Life.
• Constant Current Electronic Ballasts.
• HOT WATER (HW): For Use in Hot Water Applications Including Recirculation Loops, Showers, Cooling Towers, ect., Designed for the Reduction of Legionella.
• TOC: For the Reduction of TOC (Total Organic Carbon) using UV Lamps at 185 nm Output.

Luminor K2 6.0 Commercial UV System Control Features:

• Discrete 254nm Teflon Based UV Sensor (visually displayed as either "% UV Intensity" or "mW/cm²")
• User Configurable "Low UV" Early Warning (visual & audible)
• 4-20mA Output for Remote Monitoring of UV Intensity.
• Individual Lamp Status Indicators (visual & audible failure indicators).
• Lamp Age Monitor (visual & audible failure indicators).
• Lamp Cycle Counter (tracks total on-off lamp cycles).
• Service time Monitor (tracks total system running time).
• Chamber Temperature Monitor (monitors high temperatures and no flow conditions).
• Panel Temperature Monitor (protects electronic circuits from extreme temperatures).
• Remote On/Off Feature (allows reactor to be controlled remotely and timed with other system components).
• Automatic Reactor Shut-Down (user configurable).
• Dry Contact Outputs.
• Minor Alarm (NO/NC)
• Major Alarm (NO/NC)
• Reactor Ready (valve control feature)(NO/NC)
• Major Alarm Output (audible & visual)
• Minor Alarm Output (audible & visual).

Luminor K2 6.0 Commercial UV System Specifications:

• System: LK6-A42, LK6-A42-HW & LK6-A42-TOC
• Application: POE (point-of-entry)
• Flow Rate: 400GPM (1500 lpm), 180GPM (681 lpm) & 80GPM (303 lpm)
• Inlet/Outlet Port Size: 4.0” Flange
• Electrical: 230 V
• Power Watts: 900W
• UV Lamp for LK6-A42: RL-1000A (4 required)
• UV Lamp for LK6-A42-HW: RL-100A-HW (4 required)
• UV Lamp for LK6-A42-TOC: RL-1000A-TOC (4 required)
• Quartz Sleeves: RQ-K2 (4 required)
• UV Sensor: RS-KUV
• Controller: RB-K22
