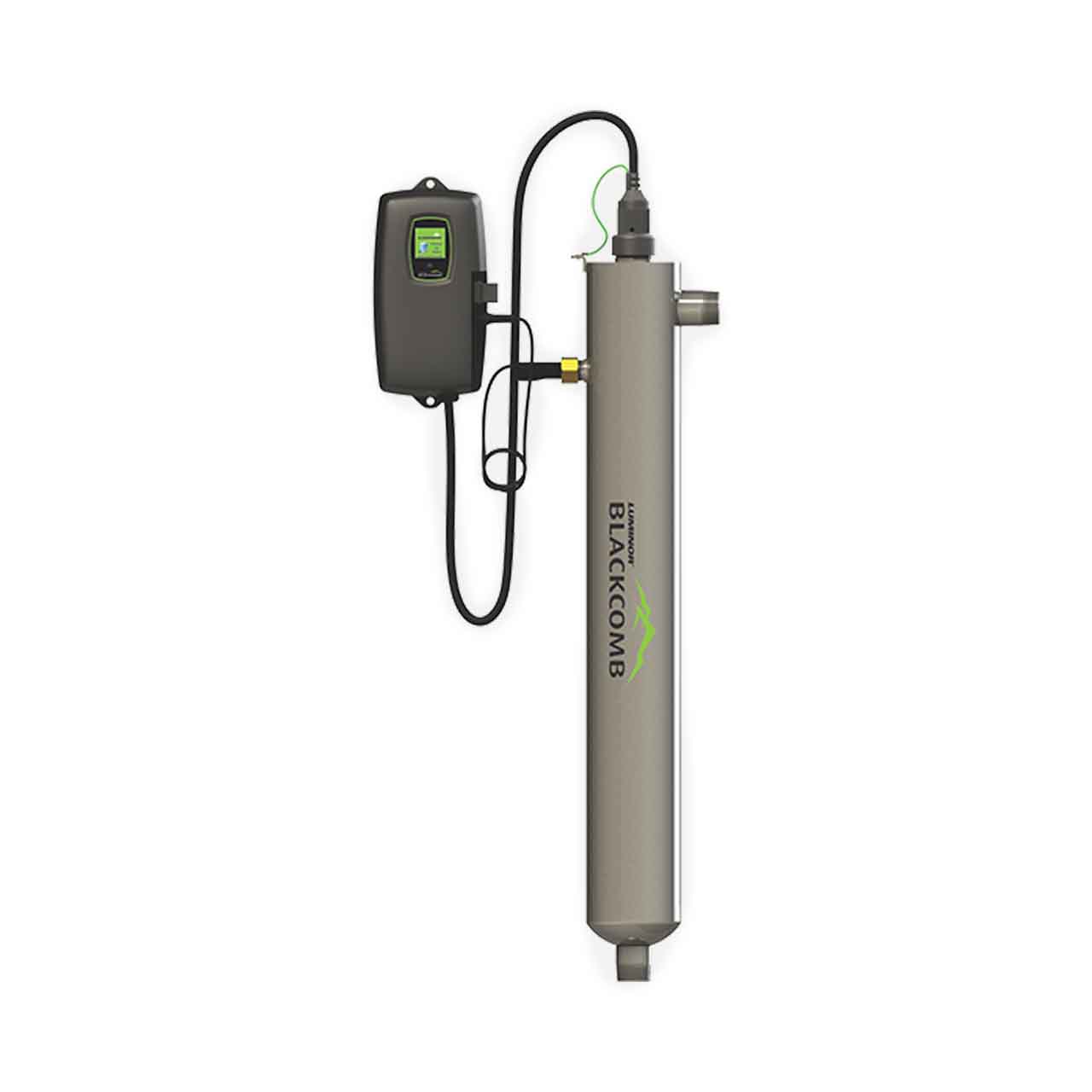

Luminor BLACKCOMB-HO 6.1 Crossover UV

For the ultimate in higher flow rates, then LUMINOR's BLACKCOMB-HO 6.1 line of "Residential Crossover" UV water treatment systems should be your choice. Installed in a large residence or in a light commercial application, continuous UV water quality monitoring is provided by the inclusion of a true 254nm discrete UV monitor. Using Teflon technology for reduced fouling, these sensors allow for the addition of a solenoid shut-off valve and a 4-20mA output allowing for remote monitoring or data logging. A colour user interface allows for easy visual identification of UV intensity, remaining lamp life and any error or fault codes as well as a monitoring of a full system diagnostic on start-up. The system even incorporates QR codes to access lamp change information and videos via web access. The controller's universal input, constant current electronic power source is housed in a splash-proof case and comes standard with a "future-proof" expandability port for future upgrades or options. Commercial grade, axial flow 316L stainless steel, single-end reactors allow for lamp change without the need to drain the reactor chamber. Reliable, industry proven, high quality low pressure, high-output (LP-HO) coated UV lamps offer a consistent output over their 10,000 hour life. Paired with LUMINOR's encrypted lamp key for increased protection and ease of use. Flow rates of 15, 38, 53, 95 & 150 lpm (5, 10, 15, 25 & 40 gpm), in both 120V or 230V applications (same UV ballast, different IEC power cord), are offered in the BLACKCOMB-HO 6.1 series of products. Also available in NSF Class B or NSF Class A.

Luminor BLACKCOMB-HO 6.1 Crossover UV Features

• Free Floating (no cable twist), Keyed-in-Place, 254nm Teflon Based UV Sensor (on 6.1 models) Continuously Measures and Displays UV Output (as a %)
• Colour Screen Controller with Lightlock for Protected Lamp Replacement, Includes QR Codes, Full Diagnostics & Warnings
• "Future Proof" Expandability Port for Future Upgrades and Options
• Axial Flow, 316L Stainless Steel Polished Reactors, Designed & Manufactured to ASME Pressure Vessel Standards
• User Friendly Bayonet Style Lamp Connector (quick 1/4 turn removal with no extra tools needed)
• Reliable, Industry Proven, Proprietary Low Pressure High-Output Coated UV Lamps with Ceramic Bases for Durability and Long Life (10,000 hours)
• Constant Current Electronic Controller (one controller for all LPHO units) in a Splash Proof Case, Fully Potted Ballast Virtually Eliminates Common Water Damage Issue
• Full Customization Available as an Option (language, home screen, phone number, QR codes, ect.)

Luminor BLACKCOMB-HO 6.1 Crossover UV Specifications

• System: LBH6-102
• Application: POE (point-of-entry)
• Flow Rate: 10 US GPM (37.9 lpm)
• Inlet/Outlet Port Size: 3/4” MNPT
• Electrical: 230 V
• Power Watts: 36W
• U.V. Lamps: RL-330HO
• Quartz Sleeves: RQ-330
• Lamp & Sleeve Combo: RLQ-330HO
• Controller: RCHO-56.12

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Luminor BLACKCOMB-HO 6.1 Crossover UV Product Resources

Download Luminor BLACKCOMB HO 6.1 Drinking Water System Specifications

Download Luminor BLACKCOMB HO 6.1 Owners Drinking Water System Manual

Download Luminor BLACKCOMB HO 6.1 LightLock Controller Specifications
