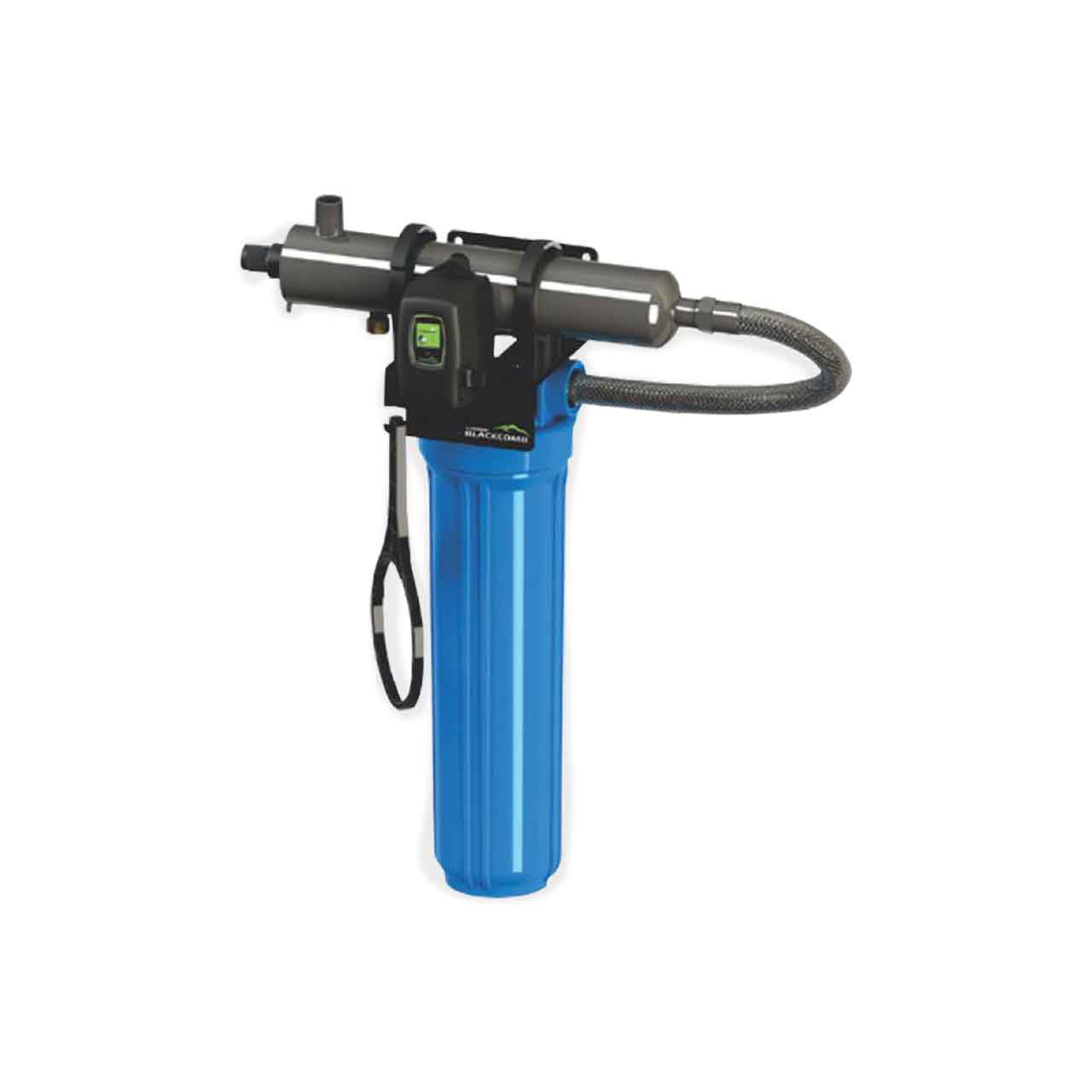

Luminor BLACKCOMB 5.1 Rack-Mount UV System

LUMINOR's new line of rack-mounted UV/filtration systems offer the convenience of an all-in-one package making installation a simple "in & out" connection.

Designed to effectively treat flow rates of 8 & 15 GPM, LUMINOR's rack-mounted UV's provide the required 5 micron pretreatment with the option of a full-flow, carbon filter to treat taste and odour. Installation of a UV system has never been easier with an innovative design that allows for feedwater to enter the filters from either the right or left side of the unit.

Based on LUMINOR's groundbreaking modular UV systems, the rack-mount UV's offer the flexibility of being "factory ready" to accept a UV Intensity Module in the future if so desired. The BLACKCOMB plug and play platform has the most advanced residential controller on the market with a colour screen user interface giving a multitude of screens displaying diagnostics, status, warnings and even QR codes for a link back to LUMINOR's website.*

Combine this with the capability to fully customize the colour screens with your own dealer information, or different language, and you can easily see how this integrated UV/filter system shines above all others.

Luminor BLACKCOMB 5.1 Rack-Mount UV System Features:

• One-Piece, 2-Sump Design for Leak Free Operation (pressure relief, wrench and new integral hanging clip included with all systems).
• LED Lamp Countdown (4.1 variants)
• Controller with Lightlock Technology for Protected Lamp Sales (5.1 variants)
• Universal Mounting Configuration (left or right access)
• NSF Component Listed Filtration Cartridges (included with systems)
• "Future-Proof" Expandibility Port for Future Upgrades and Options
• Axial Flow, 316L Stainless Steel Polished Reactors, Fully Polished, Designed & Manufactured to ASME Pressure Vessel Standards
• Reliable, Industry Proven, Coated UV Lamps (9,000 hour life on LB4/5 series and 10,000 hour life on LBH4/5 series)
• Full Customization Available as an Option (language, home screen, phone, QR codes, ect.)*

Luminor BLACKCOMB 5.1 Rack-Mount UV System Specifications:

• System: LBH5-Z2-2
• Application: POU (point-of-use)
• Flow Rate: 15 US GPM (56.8 lpm)
• Inlet/Outlet Port Size: 1.0” MNPT
• Electrical: 230 V
• Power Watts: 48W
• U.V. Lamps: RL-420HO
• Quartz Sleeves: RQ-420
• Lamp & Sleeve Combo: RLQ-420HO
• Controller: RC-B4.01
• Housing 1: 5-Micron 20" Sediment Cartridge

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Luminor BLACKCOMB Rack-Mount UV System Product Resources:

Download Luminor BLACKCOMB Rack-Mount UV System Specifications

Download Luminor BLACKCOMB Rack-Mount UV System Manual

Download Luminor BLACKCOMB LightLock Controller Specifications
