Luminor LBH4-101 BLACKCOMB-HO 4.1 Crossover UV Water System 10 GPM 110V
Luminor LBH4-101 BLACKCOMB-HO 4.1 Crossover UV Water System 10 GPM 110V
SKU : LUMLBH4101
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

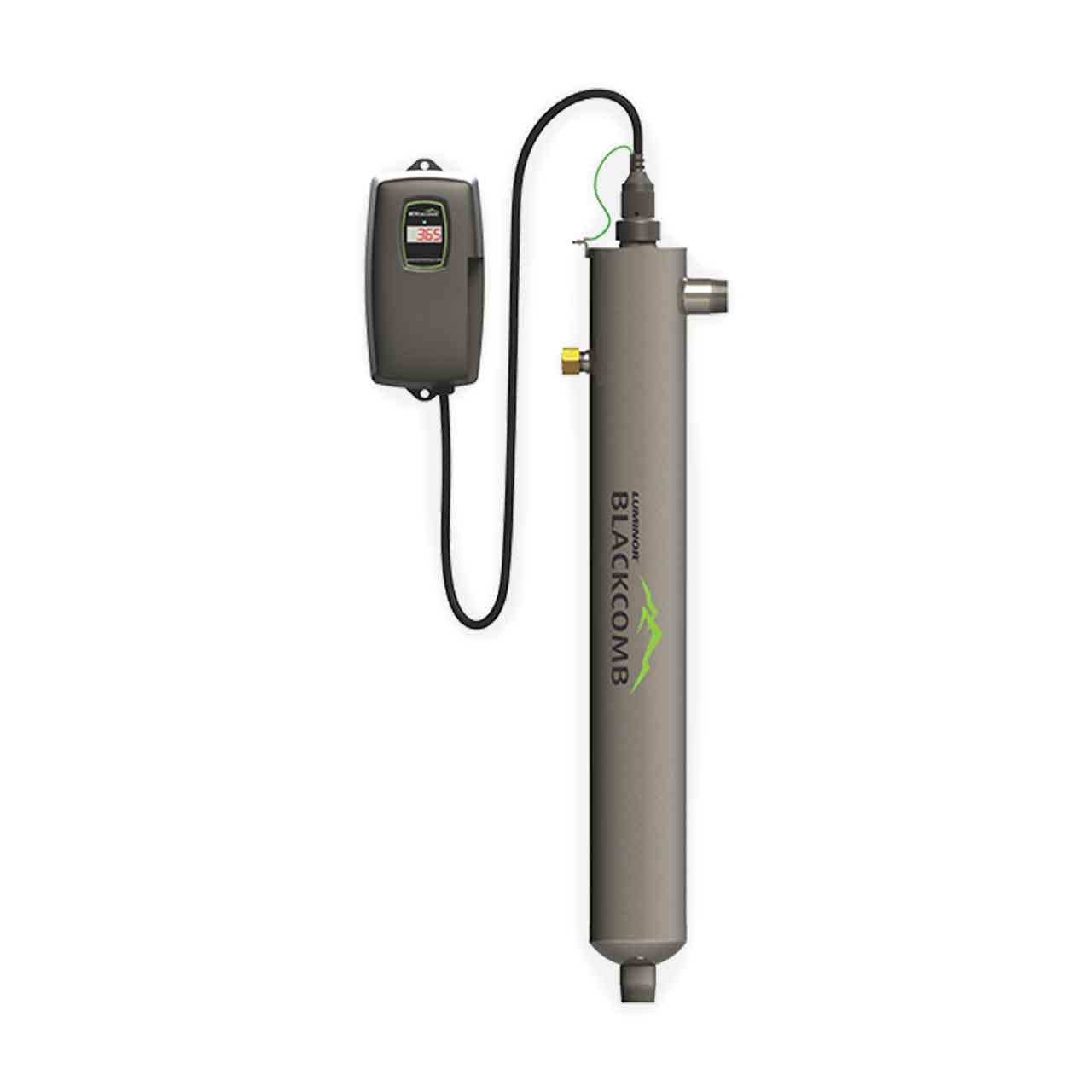

Luminor BLACKCOMB-HO 4.1 Crossover UV
With system flow rates of 5, 10, 15, 25 and 40 gpm (15, 38, 53, 95 & 151 lpm), LUMINOR's BLACKCOMB-HO 4.1 is classified as a "Residential Crossover" UV water treatment system. Not only would this product bode well in a large custom home or lodge, but it could also be used in many of those same applications as is outlined in the light commercial market segment. Simplicity and ease of operation were the fundamental design criteria in the creation of BLACKCOMB-HO. Commercial grade, axial flow 316L stainless steel reactors, designed & manufactured to ASME pressure vessel standards allow for easy sleeve change without the need to drain the reactor chamber as in competitive systems. A bayonet style UV lamp connector allows for easy lamp change without the need for additional tools. For increased power density, BLACKCOMB-HO incorporates high quality low pressure, high-output (LP-HO) coated UV lamps offering a consistent output over their 10,000 hour life. The BLACKCOMB controller houses a universal input, constant current electronic power source with both audible and visual lamp failure indicators all in a splash-proof case.
Luminor BLACKCOMB-HO 4.1 Crossover UV Features:
- Now Available with Integral Lamp Life Monitor, with Both Audible and Visual Indication of Lamp Life
- Axial Flow 316L Stainless Steel Polished Reactors.
- Visual Sight Port for "Lamp-On" Verification
- Designed and Manufactured to ASME Pressure Vessel Standards.
- Flow Rates Stated at 95% UVT at a Dose of 30mJ/cm²
- True Gland Seal Retaining Nut with Positive Stop
- User Friendly Bayonet Style Lamp Connector (quick 1/4 turn removal with no extra tools needed)
- Reliable, Industry Proven, Proprietary Low Pressure High Output (LP-HO) Coated UV Lamps with Ceramic Bases for Durability and Long Life (10,000 hours)
- Constant Current Electronic Controller (one controller for all systems) in a Splash Proof Case, Fully Potted Ballast Virtually Eliminates Common Water Damage Issue
- Audible & Visual Lamp Failure Indicators
- Tactile Selector Button
Specifications
Specifications
Luminor BLACKCOMB-HO 4.1 Crossover UV Specifications:
- System: LBH4-101
- Application: POE (point-of-entry)
- Flow Rate: 10 US GPM (37.9 lpm)
- Inlet/Outlet Port Size: 3/4” MNPT
- Electrical: 110 V
- Power Watts: 38W
- U.V. Lamps: RL-330HO
- Quartz Sleeves: RQ-330
- Lamp & Sleeve Combo: RLQ-330HO
- Controller: RCHO-4.12
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Luminor BLACKCOMB-HO 4.1 Crossover UV Product Resources:
Download Luminor BLACKCOMB-HO 4.1 Drinking Water System Specifications
Download Luminor BLACKCOMB-HO 4.1 Owners Drinking Water System Manual
