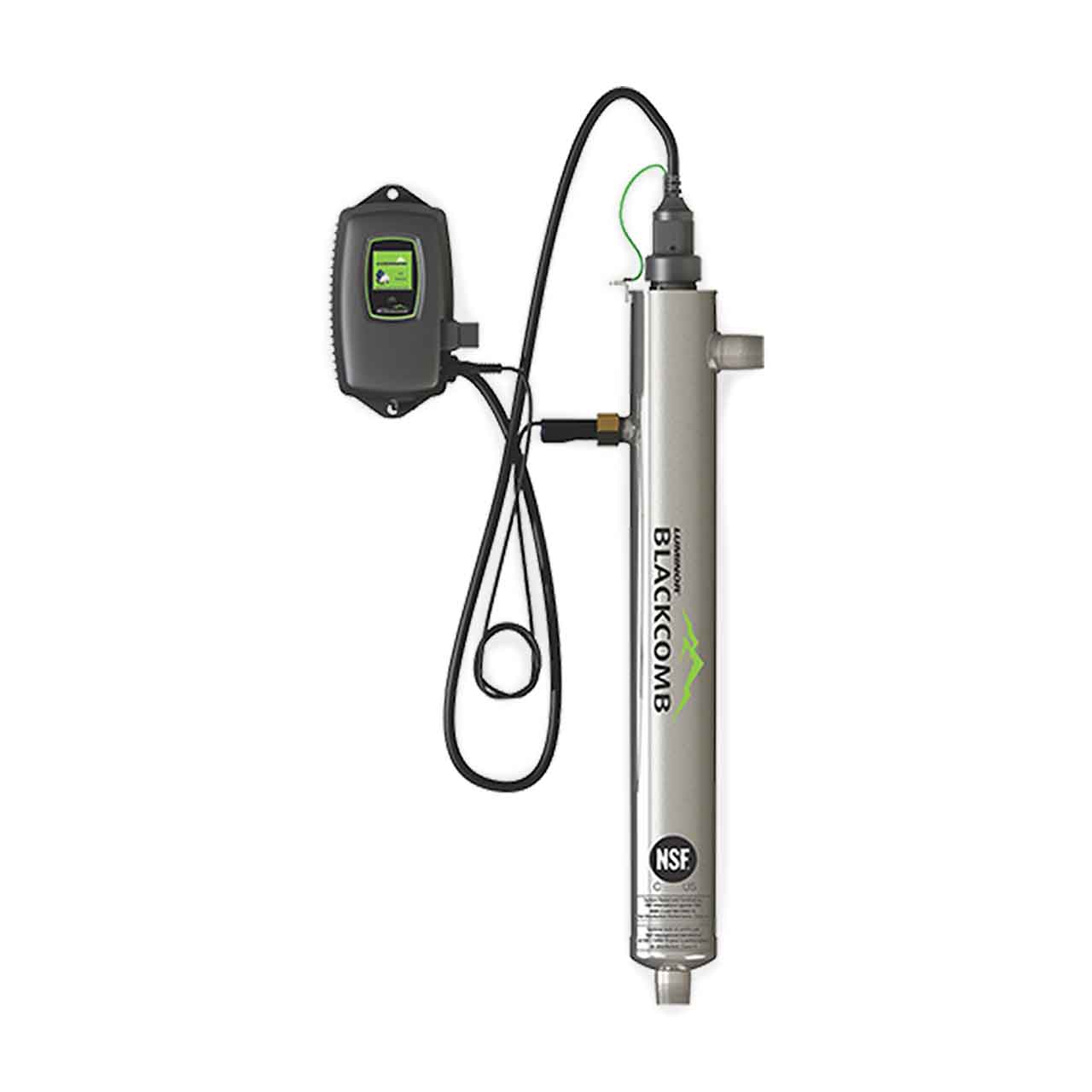

Luminor BLACKCOMB 6.1B NSF Class B UV System

If you are looking for an independently validated UV system for supplemental disinfection of a potable water source, LUMINOR's new "NSF 55 CLASS B" validated systems is your solution.

Available in two versions, BLACKCOMB 6.1 includes a true 254nm Teflon based UV sensor to continuously monitor the UV output (performance) of the system BLACKCOMB 5.1 is "factory ready" to accept a UV Intensity Module in the future is so desired.

Based on a modular, plug and play platform, the BLACKCOMB system has the most advanced residential controller on the market with a colour user interface with a multitude of screens displaying diagnostics, status, warnings and even QR codes for a link back to LUMINOR's website.

Couple this with the capability to fully customize the colour screens with your own dealer information, or different language, and you can easily see how this UV system shines above all others (the optional Customer Delaer Programmer is required...contact factory for further information)!

Luminor BLACKCOMB 6.1B NSF Class B UV System Product Features:

• True 254nm Teflon Based UV Sensor Continuously Measures and Displays UV Output (as a %).
• NEW Colour Screen Controller with Lightlock for Protected Lamp Replacement, Includes QR Codes, Full Diagnostics & Warnings.
• "Future Proof" Expandibility Port for Future Upgrades and Options.
• Axial Flow, Stainless Steel Polished Reactors, Designed & Manufactured to ASME Pressure Vessel Standards (304 on LB5/6 Units and 316L on LBH5/6 Units).
• User Friendly Bayonet Style Lamp Connector (quick 1/4 turn removal with no extra tools needed)
• Reliable, Industry Proven, Proprietary Low Pressure Coated UV Lamps with Ceramic Bases for Durability and Long Life (9,000 hours on LB5/6 units and 10,000 hours on LBH5/6 units)
• Constant Current Electronic Controller (one controller for all LP units and one for all LPHO units) in a Splash Proof Case, Fully Potted Ballast Virtually Eliminates Common Water Damage Issue.
• Full Customization Available as an Option (language, home screen, phone, QR codes, ect.)

Luminor BLACKCOMB 6.1B NSF Class B UV System Specifications:

• System: LB6-102B
• Application: POE (point-of-entry)
• Flow Rate: 13.0 GPM (49.2 lpm)
• Inlet/Outlet Port Size: 0.75" MNPT
• Electrical: 230 V
• Power Watts: 49W
• UV Lamp: RL-820
• Quartz Sleeves: RQ-820
• Lamp & Sleeve Combo: RLQ-820
• Controller: RC-B56.01

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Luminor BLACKCOMB 6.1B Product Resources:

Download Luminor BLACKCOMB 6.1B UV System Specifications

Download Luminor BLACKCOMB 6.1B Class B  Manual
