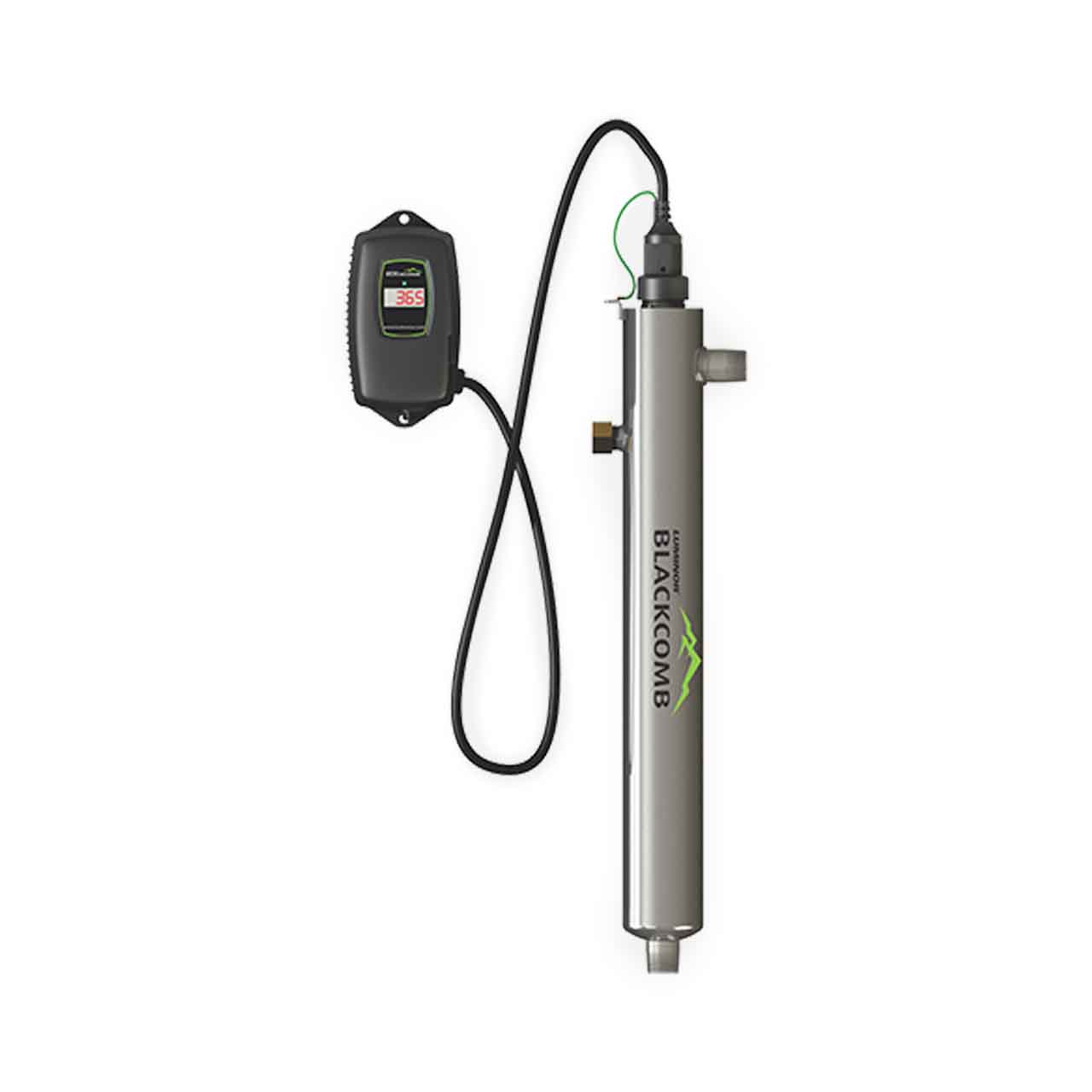

Luminor LB4-061 BLACKCOMB 4.1 UV Water System 6 GPM 110V

Luminor LB4-061 BLACKCOMB 4.1 UV Water System 6 GPM 110V

Usually ships within 6 weeks

SKU : LUMLB4061

In Stock Quantity:0

:
Brand : Luminor
Shipping calculated at checkout.

Description

Luminor BLACKCOMB 4.1

LUMINOR's BLACKCOMB 4.1 is the mainstay of the home water treatment products. Simplicity and ease of operation were the fundamental design criteria in the creation of BLACKCOMB. Rugged 304 stainless steel, single-end reactors, designed & manufactured to ASME pressure vessel standards allow for easy lamp change without the need to drain the reactor chamber as in competitive systems. A bayonet style lamp connector allows for easy lamp change without the need for additional tools. Reliable, industry proven, high quality low pressure (LP) coated UV lamps are used offering a consistent output over their 9,000 hour life. The BLACKCOMB controller houses a constant current electronic power source with both audible and visual lamp failure indicators all in a splash-proof case. Flow rates of 10, 20, 40, 57 & 80 lpm (3, 6, 10, 15 & 20 gpm), in both 120V or 230V applications, are offered in the BLACKCOMB 4.1 series of products.

Luminor BLACKCOMB 4.1 Features:

  • Now Available with Integral Lamp Life Monitor, with Both Audible and Visual Indication of Lamp Life.
  • Axial Flow, 304 Stainless Steel Polished Reactors
  • Sensor Port for Future Upgradeability, Comes with Integral visual Glow Plug.
  • Visual Sight Port for “Lamp-On” Verification.
  • Designed & Manufactured to ASME Pressure Vessel Standards.
  • Flow Rates Stated at 95% UVT at a Dose of 30mJ/cm2.
  • True Gland Seal Retaining Nut with Positive Stop.
  • User Friendly Bayonet Style Lamp Connector (quick ¼ turn removal with no extra tools needed).
  • Reliable, Industry Proven, Proprietary Low Pressure (LP) Coated UV Lamps with Ceramic Bases for Durability and Long Life (9,000 hours).
  • Constant Current Electronic Controller (one controller for all systems) in a Splash Proof Case, Fully Potted Ballast Virtually Eliminates Common Water Damage Issue.
  • Audible & Visual Lamp Failure Indicators.
  • Tactile Selector Button.

Specifications

Luminor BLACKCOMB 4.1 Specifications:

  • System: LB4-061
  • Application: POE (point-of-entry)
  • Flow Rate: 6 US GPM (23 lpm)
  • Inlet/Outlet Port Size: 3/4” MNPT
  • Electrical: 110 V
  • Power Watts: 30W
  • U.V. Lamps: RL-470
  • Quartz Sleeves: RQ-470
  • Lamp & Sleeve Combo: RLQ-470
  • Controller: RC-B4.01


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Luminor BLACKCOMB 4.1 Product Resources:


Download Luminor BLACKCOMB 4.1 Drinking Water System Specifications

Download Luminor BLACKCOMB 4.1 Owners Drinking Water System Manual
