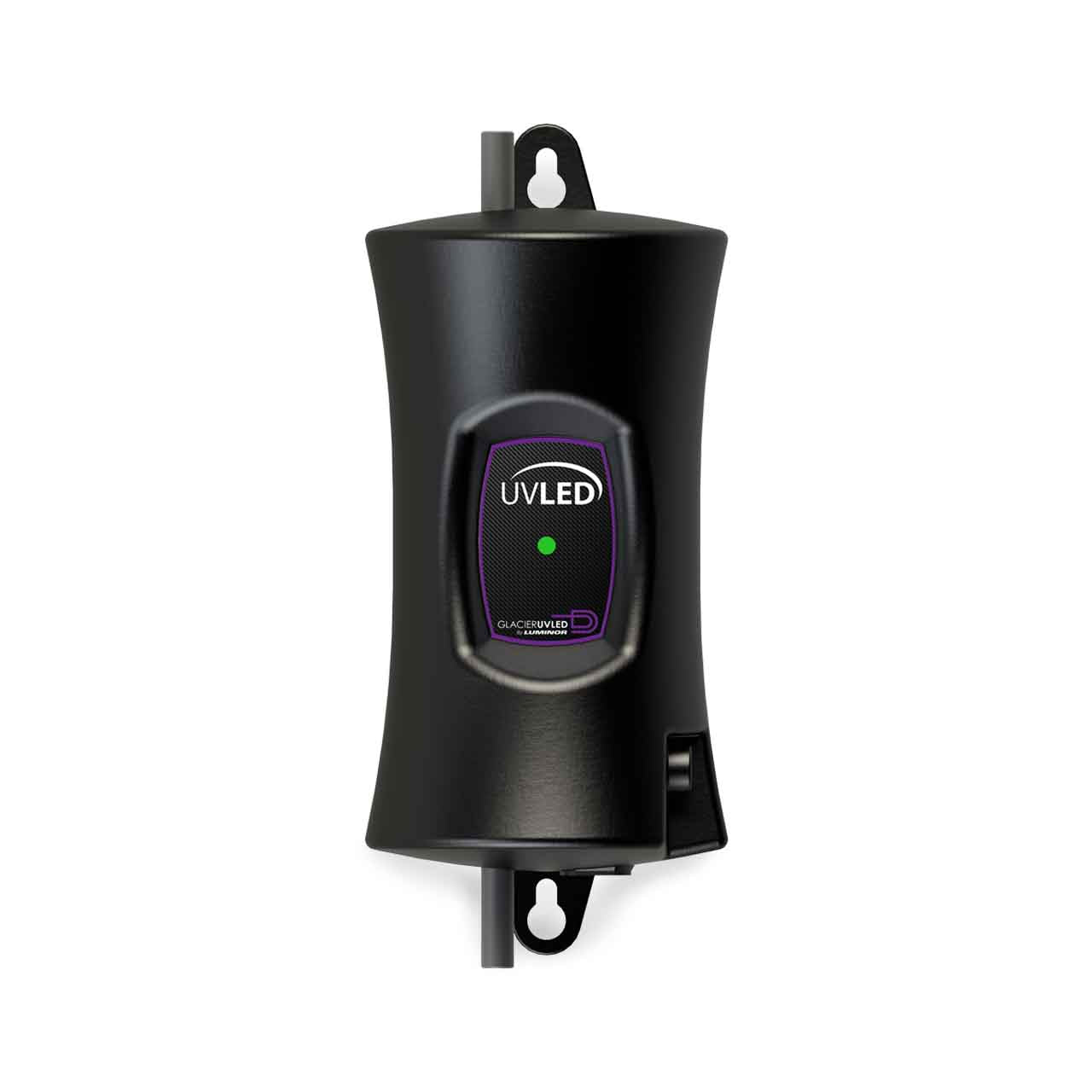

Luminor GUV-4S GLACIERUVLED OEM Module 1.5 GPM
Luminor GUV-4S GLACIERUVLED OEM Module 1.5 GPM
SKU : LUMGUV4S
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Luminor GLACIERUVLED OEM Modules
As the development of UVC LED technology continues its rapid growth, LUMINOR has expanded on the proven efficacy of uV germicidal irradiation and coupled it with high-tech UVC LED technology to produce an energy efficient, environmentally friendly technology of the future. These compact UVC LED modules provide 99.99% pathogen reduction and have a global reach with a myriad of applications ranging from residential water treatment, water dispensers, appliances, food service, RV, marine, medical, disaster relief and many, many more!
Fully integrated LED based UV disinfection system is available with a simple multi-state status indicator. This system is packaged with a 12 volt power supply and there is no need for a lamp change, as in traditional UV systems. The UVC LED's only turn "on" when needed on an integral flow switch and last 5,000 hours of "on" mode operation.
The system incorporates integrated, real-time I/O monitoring for:
- Temperature
- Prevents Overheating of LED's
- Alarm Alerts of Over Temperature Conditions
- LED Status
- Always Know when UVC LED is On or Off
- Alarm is Signaled in Event that the UVC LED Fails
- UV Output (COMING SOON)
- Allows User to Know UV Output the System is Delivering
- Alarms for Low UV "Dose"
Specifications
Specifications
Luminor GLACIERUVLED OEM Module Specifications:
- System: GUV-4S
- Flow Rate: 1.5 US GPM (5.6 lpm)
- Headloss at Max Flow: 166 mBar (2.4psi)
- Max Pressure: 6.9 Bar (100psi)
- Electrical Connection: Standard 12VDC Barrel Connector, 2.1x5.5mm
- Water Connections: 3/8" OD Tube
- Input Power: 15W
- Max Temperature: 50°C (122°F)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Luminor GLACIERUVLED OEM Module Product Resources:
