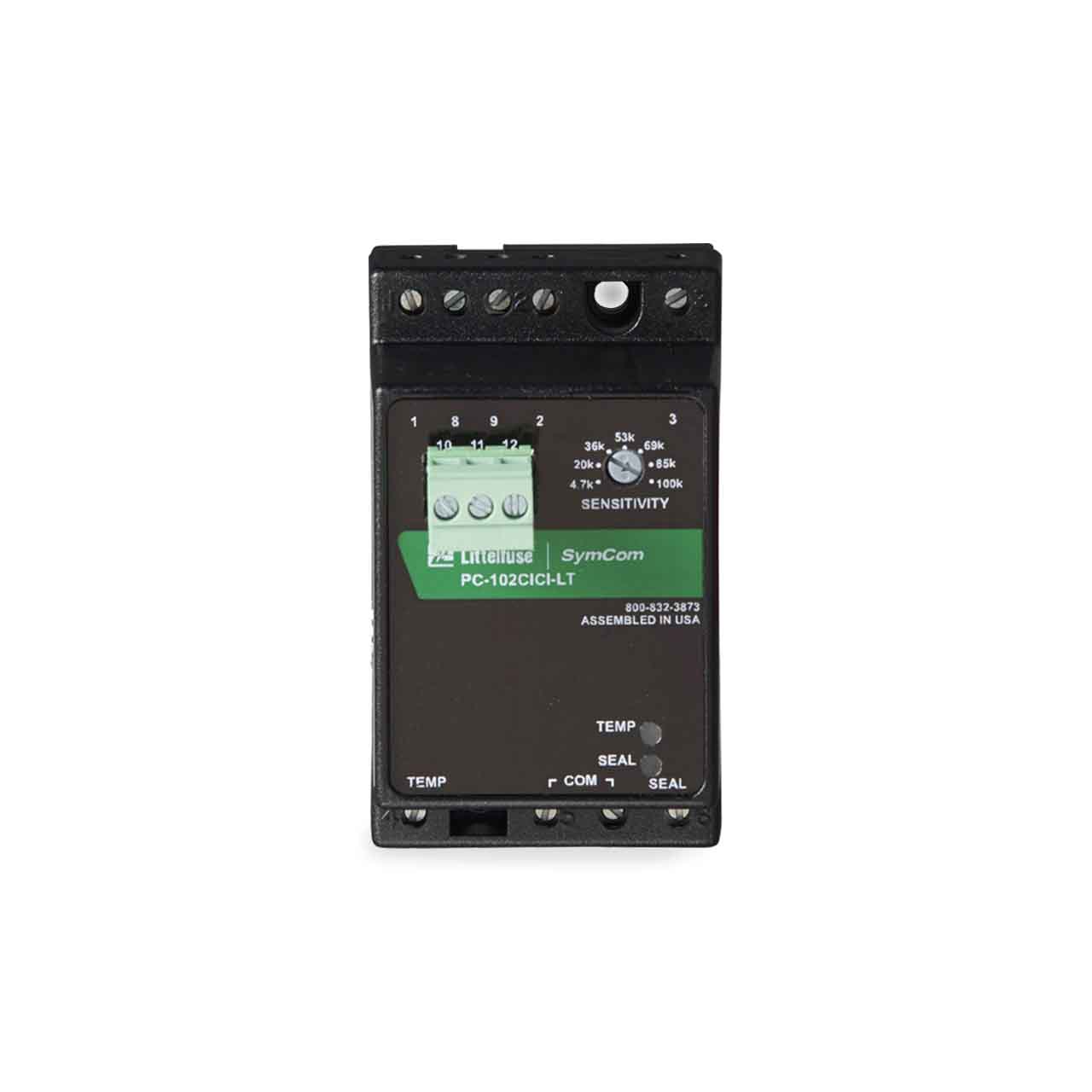

Littelfuse PC-102CICI-LT Seal Leak / Temp Detector Description

The PC-102CICI-LT has a Seal-leak and over-temperature detector that uses one input to sense seal failures and the temperature input to detect motor overheating. Configurable to suit various probes. Seal input logic direct or inverted, plus over-temperature trip reset automatic or manual, is DIP switch selectable.

Both units have two form-C isolated output relays and two LEDs, which illuminate when each associated output relay is energized.

The sensitivity adjustment (4.7k-100kOhms) allows you to define the input impedance at which the output relays will change state. The sensitivity for the over-temperature detector can be set to 4k Ohms with use of the DIP switches.

This Unit May Not Be Compatible with Flygt Pumps

Littelfuse PC-102CICI-LT Seal Leak / Temp Detector Typical Applications

• Compressors
• HVAC
• Heat Pumps
• Well Pumps
• Sump Pumps
• Small Conveyor Motors
• Oil Rigs

Littelfuse PC-102CICI-LT Seal Leak / Temp Detector Product Features

• Dual Inputs
• Input Logic may be Selected to be Direct or Inverted
• Two Isolated Form-C Output Relays
• Two Red LEDs

Littelfuse PC-102CICI-LT Dual Seal Leak Detector Product Specifications

Line Voltage . . . . . . . . . . . . 120 VAC Nominal

Frequency . . . . . . . . . . . . 50/60Hz

Probe Sense Voltage . . . . . . . . . 5vdc pulsed

Sensitivity . . . . . . . . . . . . . .4.7k-100kΩ

Sensitivity (for temp) . . . . . . . . . . . . Selectable 4kΩ with DIP switches

Input Logic . . . . . . . . . . . . . . . . . . . . . Direct or inverted<

Debounce Time Delay . . . . . . . . . . . . . . . . . . . . . 0.5 or 2 seconds

• 2 Form C Isolated. . . . . . . . . . . . . . . . . . .180VA @ 120VAC, C150 Pilot Duty
• . . . . . . . . . . . . . . . . . . . . . 5A @ 240VAC General Purpose

Temperature Range . . . . . . . . . . . . . . . . . . . . . -20° to 55°C (-4° to 131°F)

Maximum Input Power . . . . . . . . . . . . . . . . . . . . . 2 W

Depluggable Connector . . . . . . . . . . . . . Phoenix Contact-Series MSTB plugs

Output Relay Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . LEDs

Terminal Torque . . . . . . . . . . . . . . . . . . . . . . . .4.5 in.-lbs

Wide Range . . . . . . . . . . . . . . . . . . . . . . . .12-20 AWG

Electrostatic Discharge (ESD) . . . . . . . . . IEC 61000-4-2, Level 3, 6kV contact, 8kV air

Radio Frequency Immunity (RFI) . . . . . . . . . IEC 61000-4-3, Level 3, 10V/m

Fast Transients . . . . . . . . . IEC 61000-4-4, Level 3, 4kV input power 2kV inputs/outputs

Safety Mark

• UL . . . . . . . . . . . . . . . . . . . . . . . UL508 (File #E68520)

Weight . . . . . . . . . . . . . . . . . . . . . . . . 14.4 oz.

Mounting Method . . . . . . . . . . . 35mm DIN rail or Surface Mount (#6 or #8 screws)
