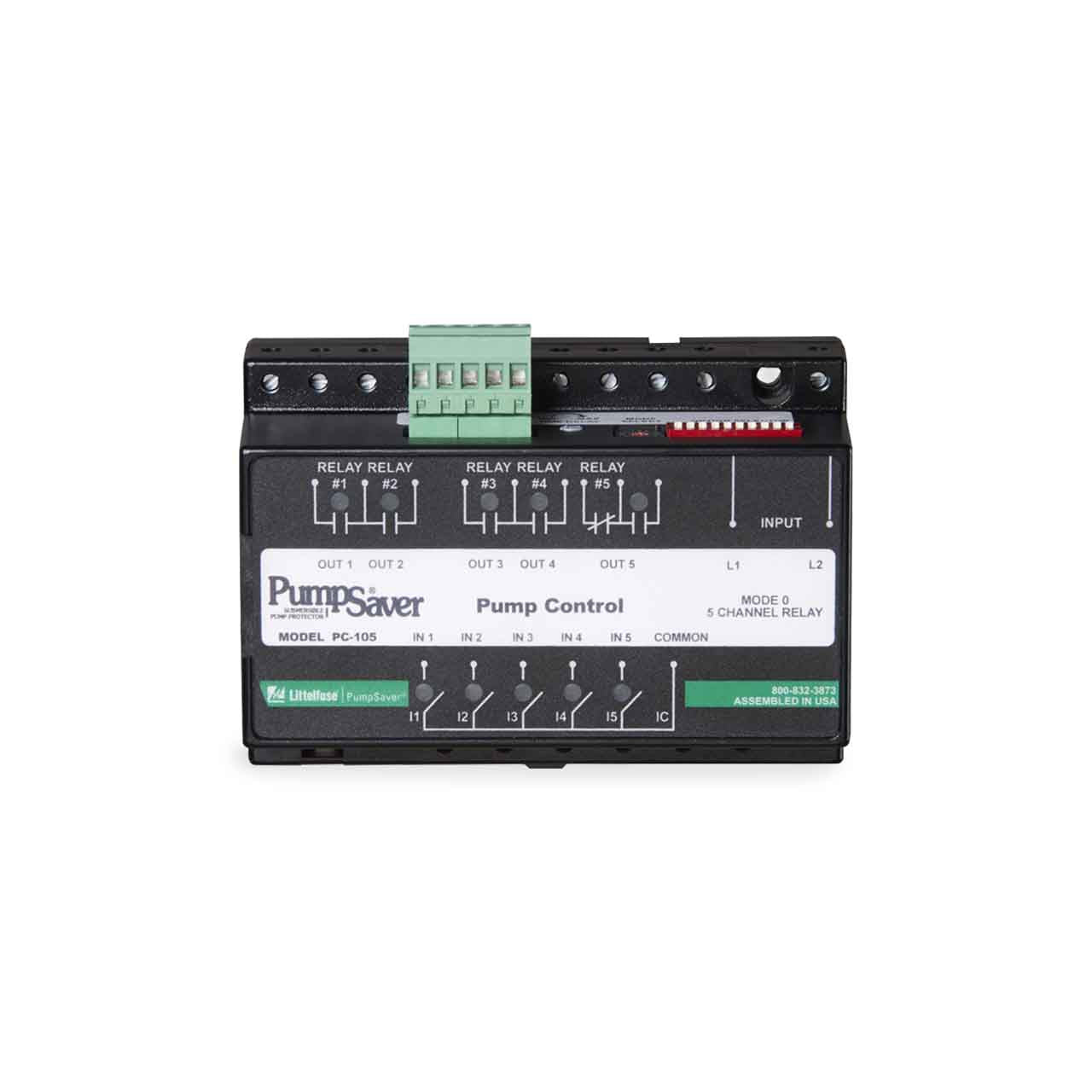

Littelfuse PC-105 Five-Channel Pump Controller Description

The PC-105 is a 5-channel pump controller designed to handle multiple pump applications. Alternatively, it can operate as a 5-channel switch.

The PC-105’s control functions support all of the popular industry standard multi-pump, pump-up and pump-down configurations.
It can indicate low, high and out-of-sequence alarms and use alternating and non-alternating pump control. The non-alternating pump can be used as a jockey pump or emergency pump.
Using the built-in DIP switches, individual pumps can be disabled when taken out of service for repair or maintenance.

Using the built-in DIP switches, individual pumps can be disabled when taken out of service for repair or maintenance.

Littelfuse PC-105 Five-Channel Pump Controller Typical Applications

• Pump Delay
• Pump Alternating
• Pump to Pump Starter

Littelfuse PC-105 Five-Channel Pump Controller Product Features

• Compact Design
• Low, High and Out-of-Sequence Alarms
• Variable Time Delay/Lag Pump Delay from 2-255 Seconds
• Duplex SPS (separate pump stop) Pump Control
• Duplex, Triplex or Quadplex Pump Control
• Pump-Up or Pump-Down Functions
• External Silence, Reset and Alternation Configuration
• Five-Channel Relay Configuration
• DIN Rail or Surface Mountable
• 5-year warranty
• Made in the USA

Littelfuse PC-105 Five-Channel Pump Controller Product Specifications

Supply Voltage . . . . . . . . . . . . 120 VAC

Frequency . . . . . . . . . . . . 50*/60Hz

Probe Sense Voltage . . . . . . . . . 5vdc continuous

• 2 Form C Isolated. . . . . . . . . . . . . . . . . . .480VA @ 240VAC, B300 Pilot Duty
• . . . . . . . . . . . . . . . . . . . . . 7A @ 240VAC General Purpose

Temperature Range . . . . . . . . . . . . . . . . . . . . . -20° to 55°C (-4° to 131°F)

Maximum Input Power . . . . . . . . . . . . . . . . . . . . . 4 W

Wire Range . . . . . . . . . . . . . . . . . . . . . . . .12-20 AWG

Terminal Torque . . . . . . . . . . . . . . . . . . . . . . . .4.5 in.-lbs

Pump In-Rush Delay . . . . . . . . . . . . . 2 seconds

Electrostatic Discharge (ESD) . . . . . . . . . IEC 61000-4-2, Level 3, 6kV contact, 8kV air

Radio Frequency Immunity (RFI) . . . . . . . . . IEC 61000-4-3, Level 3, 10V/m

Fast Transients . . . . . . . . . IEC 61000-4-4, Level 3, 4kV input power 2kV inputs/outputs

Safety Mark

• UL . . . . . . . . . . . . . . . . . . . . . . . UL508 (File #E68520)

Weight . . . . . . . . . . . . . . . . . . . . . . . . 19.2 oz.

Mounting Method . . . . . . . . . . . 35mm DIN rail or Surface Mount (#6 or #8 screws)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Littelfuse PC-105 Product Resources

Littelfuse PC-105 Product Specifications

Littelfuse PC-105 Installation Bulletin

Littelfuse PC-105 Engineering Bulletin
