Littelfuse Model ALT-115-X-SW Cross-Wired Alternating Duplex Pump Relay with Switch 95-125V 8-pin Plug-in

Littelfuse Model ALT-115-X-SW Cross-Wired Alternating Duplex Pump Relay with Switch 95-125V 8-pin Plug-in

Usually ships within 1 week

SKU : MSRALT115X-SW

In Stock Quantity:0

:
Brand : Littelfuse/Symcom
$114.71 USD
Shipping calculated at checkout.

Description

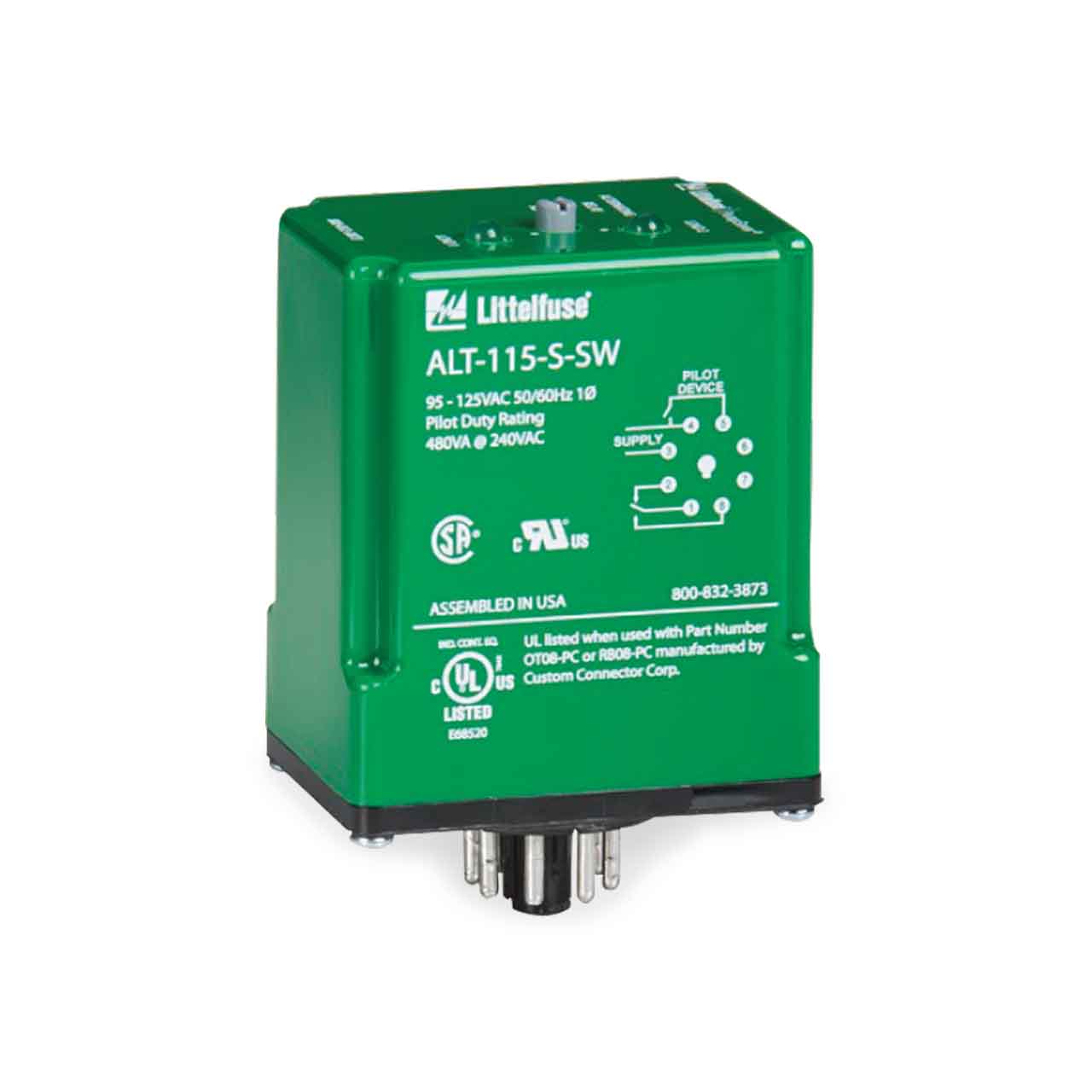

Littelfuse ALT-115-X-SW Alternating Duplex Pump Relay Product Description

Model ALT alternating relays are used to alternate between two loads. The ALT is commonly used in duplex pumping applications to balance the runtime of both pumps.

The Model ALT-X has an internal cross-connected relay and is used in applications where two high level floats are used. These floats are commonly referred to as lead and lag floats. The Model ALT-X-SW adds a built-in switch that is used to manually force one pump to run every time the float switch is closed.

Littelfuse ALT-115-X-SW Alternating Duplex Pump Relay Typical Applications

  • Duplex Control Panels

Littelfuse ALT-115-X-SW Alternating Duplex Pump Relay Features

  • Alternates Between Two Loads
  • Solid-State Reliability
  • Compact Size
  • Debounce Time Delay
  • SPDT or Cross Connected
  • Optional Manual/Auto Mode Switch
  • UL Listed
  • CE Marked
  • 5-Year Warranty
  • Made in the USA

Specifications

Littelfuse ALT-115-X-SW Alternating Duplex Pump Relay Specifications

Line Voltage . . . . . . . . . . . . . . 95-125 VAC

Supply Current . . . . . . . . . . . . . . 40mA

Debounce Time Delay . . . . . . . . . . . . . . 0.5 second

Control Input Impedance (min)

  • 24. . . . . . . . . . . . . . . . . . . . .10kΩ
  • 115. . . . . . . . . . . . . . . . . . . . 56kΩ
  • 230. . . . . . . . . . . . . . . . . . . . 100kΩ

Output Contact Rating . . . . . . . . . . . . . . . . . . . . . 480VA @ 240VAC

Temperature Range . . . . . . . . . . . . . . . . . . . . . -40° to 50°C (-40° to 122°F)

Maximum Input Power . . . . . . . . . . . 5 W

Safety Marks

  • UL (OT08PC octal socket required) . . . . . . UL508 (File #E68520)
  • CSA . . . . . . . . . . . . . . . . . . . . . . C22.2 No. 14 (File #46510)

Weight . . . . . . . . . . . . . . . . . . . . . . . . 6.08 oz.

Mounting Method . . . . . . . . . . . DIN rail or surface mount (plug into OT08PC socket)

The 600V socket can be surface mounted or installed on DIN Rail.
