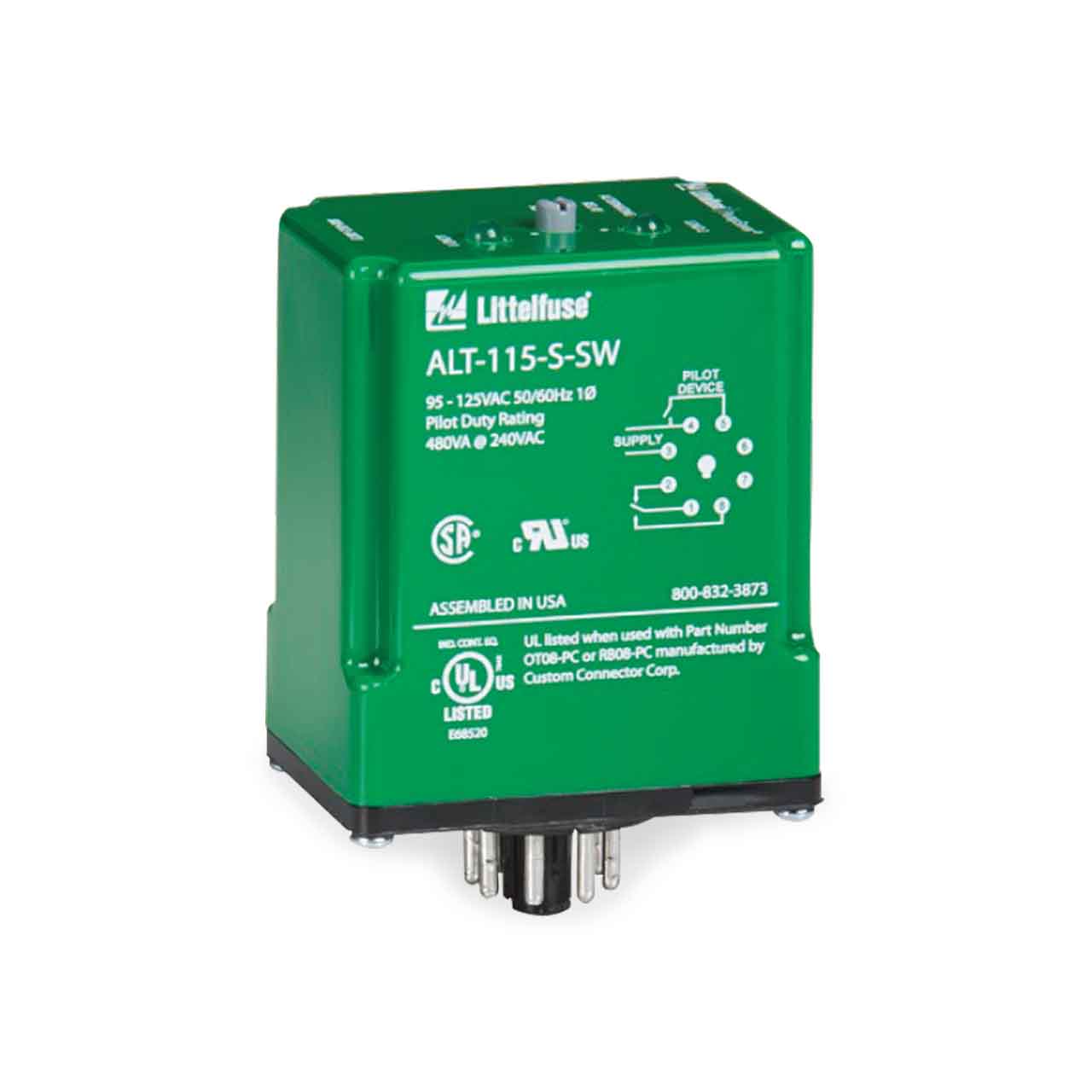

Littelfuse Model ALT-115-X Cross-Wired Alternating Duplex Pump Relay 95-125V 8-pin Plug-in

Littelfuse Model ALT-115-X Cross-Wired Alternating Duplex Pump Relay 95-125V 8-pin Plug-in

Usually ships within 1 week

SKU : MSRALT115X

In Stock Quantity:0

:
Brand : Littelfuse/Symcom
$98.23 USD
Shipping calculated at checkout.

Description

Littelfuse ALT-115-X Alternating Duplex Pump Relay Product Description

Model ALT-115-X alternating relays are used to alternate between two loads. The ALT is commonly used in duplex pumping applications to balance the runtime of both pumps.

The Model ALT-X has an internal cross-connected relay and is used in applications where two high level floats are used. These floats are commonly referred to as lead and lag floats.

Littelfuse ALT-115-X Alternating Duplex Pump Relay Typical Applications

  • Duplex Control Panels

Littelfuse ALT-115-X Alternating Duplex Pump Relay Features

  • Alternates Between Two Loads
  • Solid-State Reliability
  • Compact Size
  • Debounce Time Delay
  • SPDT or Cross Connected
  • Optional Manual/Auto Mode Switch
  • UL Listed
  • CE Marked
  • 5-Year Warranty
  • Made in the USA

Specifications

Littelfuse ALT-115-X Alternating Duplex Pump Relay Specifications

Line Voltage . . . . . . . . . . . . . . 95-125 VAC

Supply Current . . . . . . . . . . . . . . 40mA

Debounce Time Delay . . . . . . . . . . . . . . 0.5 second

Control Input Impedance (min)

  • 24. . . . . . . . . . . . . . . . . . . . .10kΩ
  • 115. . . . . . . . . . . . . . . . . . . . 56kΩ
  • 230. . . . . . . . . . . . . . . . . . . . 100kΩ

Output Contact Rating . . . . . . . . . . . . . . . . . . . . . 480VA @ 240VAC

Temperature Range . . . . . . . . . . . . . . . . . . . . . -40° to 50°C (-40° to 122°F)

Maximum Input Power . . . . . . . . . . . 5 W

Safety Marks

  • UL (OT08PC octal socket required) . . . . . . UL508 (File #E68520)
  • CSA . . . . . . . . . . . . . . . . . . . . . . C22.2 No. 14 (File #46510)

Weight . . . . . . . . . . . . . . . . . . . . . . . . 6.08 oz.

Mounting Method . . . . . . . . . . . DIN rail or surface mount (plug into OT08PC socket)

The 600V socket can be surface mounted or installed on DIN Rail.


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Littelfuse ALT-115-X Alternating Duplex Pump Relay Resources


Littelfuse ALT-115-X Product Specifications

Littelfuse ALT-115-X Installation Bulletin

Littelfuse ALT-115-X Engineering Bulletin
