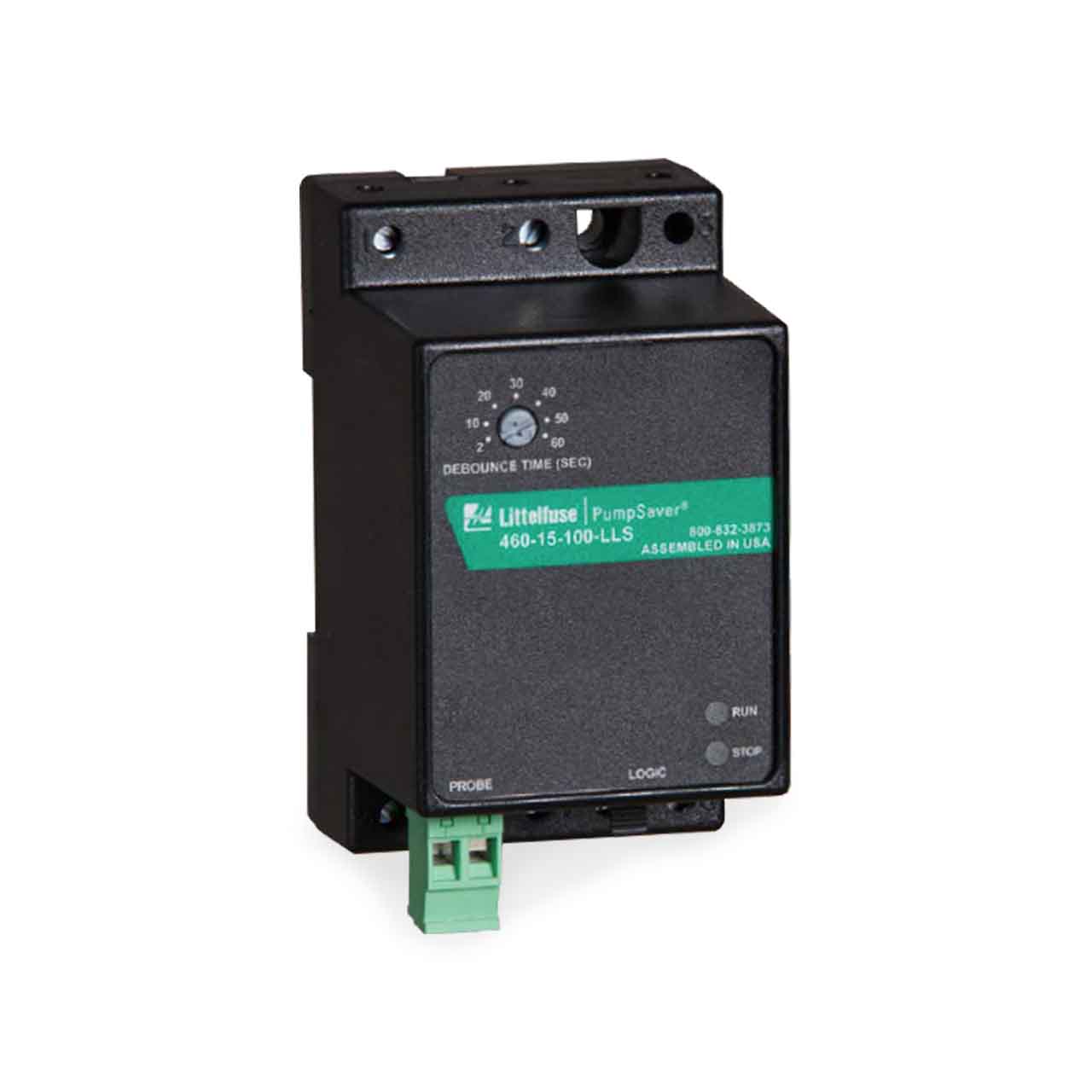

Littelfuse Model 460-15-100-LLS Liquid Level Sensor 110-120V 8-Pin Plug-In
Littelfuse Model 460-15-100-LLS Liquid Level Sensor 110-120V 8-Pin Plug-In
SKU : MSR46015100LLS
In Stock Quantity:0
:
Brand
:
Regular price
$145.44 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Littelfuse 460-15-100-LLS Seal Leak Detector Product Description
The 460-15-100-LLS is a liquid level sensor to detect the presence of conductive liquids. A probe is mounted at the desired tank level and connected to the PumpSaver®. When the probe is submersed, the relay’s output contacts will change state as soon as the debounce time expires. The adjustable debounce timer is intended to prevent nuisance actuating due to waves or splashing in the tank.
Relay logic can be inverted so the relay’s output contacts change state when the probe is no longer submersed. This makes the unit versatile for use in pump-up and pump-down applications.
Littelfuse 460-15-100-LLS Seal Leak Detector Typical Applications
- Detect the Presence of Conductive Liquids
Littelfuse 460-15-100-LLS Seal Leak Detector Features
- UL508 Listed
- CE Marked
- 8-Pin Plug In; DIN Rail or Surface Mount
- 5-Year Warranty
- Made in the USA
Specifications
Specifications
Littelfuse 460-15-100-LLS Seal Leak Detector Specifications
Control Voltage . . . . . . . . . . . . 110 - 120 VAC nominal
Frequency . . . . . . . . . . . . . . . . . . . . . 50 or 60 Hz (Note: 50Hz will increase all delay timers by 20%)
Sensitivity . . . . . . . . . . . . . . . . . . . . . 100kΩ
Functional Characteristics
- Probe Sense Voltage . . . . . . . . . . . . . . . . 5vdc pulsed
- Debounce Time Delay . . . . . . . . . . . . . . . . 2-60 seconds
Output Contact Rating
- (Two Form A-DPST) . . . . . . . . . . . . . . . . . .360VA @ 240VAC Pilot Duty
- . . . . . . . . . . . . . . . . . . . . . . . . . . . . or 8A @ 240VAC General Purpose
Temperature Range
- Operating . . . . . . . . . . . . . . . . . -40° to 70°C (-40° to 158°F)
- Storage . . . . . . . . . . . . . . . . . -40° to 80°C (-40° to 176°F)
Power Consumption . . . . . . . . . . . . . 2 Watts (Max.)
Class of Protection . . . . . . . . . . . . . .IP20, NEMA 1 (finger safe)
Relative Humidity . . . . . . . . . . . . . .10-95%, non-condensing per IEC 68-2-3
Terminal Torque. . . . . . 4.5 in.-lbs
Wire . . . . . . . . . . . . . 12-20 AWG
Electricostatic Discharge (ESD). . . . IEC 61000-4-2, Level 3, 6kV contact, 8kV air
RFI, Radiated. . . . . . 150 MHz, 10V/m
Fast Transient Burst . . . . IEC 61000-4-4, Level 3, 3.5kV input power and controls
Surge
- IEC . . . . . . . . . . . . . . IEC 61000-4-5, Level 3, 4kV line-to-line; Level 4, 4kV line-to-ground
- ANSI/IEEE . . . . . . C62.41 Surge and Ring Wave Compliance to a level of 6kV line-to-line
- Hi-Potential Test . . . . . . . . . . . . . . Meets UL508 (2 x rated V +1000V for 1 minute)
Safety Marks
- UL . . . . . . . . . . . . . . . . . UL508 (File #E68520)
- CE . . . . . . . . . . . . . . . . . IEC 60947-6-2
Enclosure . . . . . . . . . . . . . . . . . . . . . Polycarbonate
Weight . . . . . . . . . . . . . . . . . . . . . . . . 16 oz.
Mounting Method . . . . . . . . . . . 35 mm DIN rail or Surface Mount (#6 or #8 screws)
