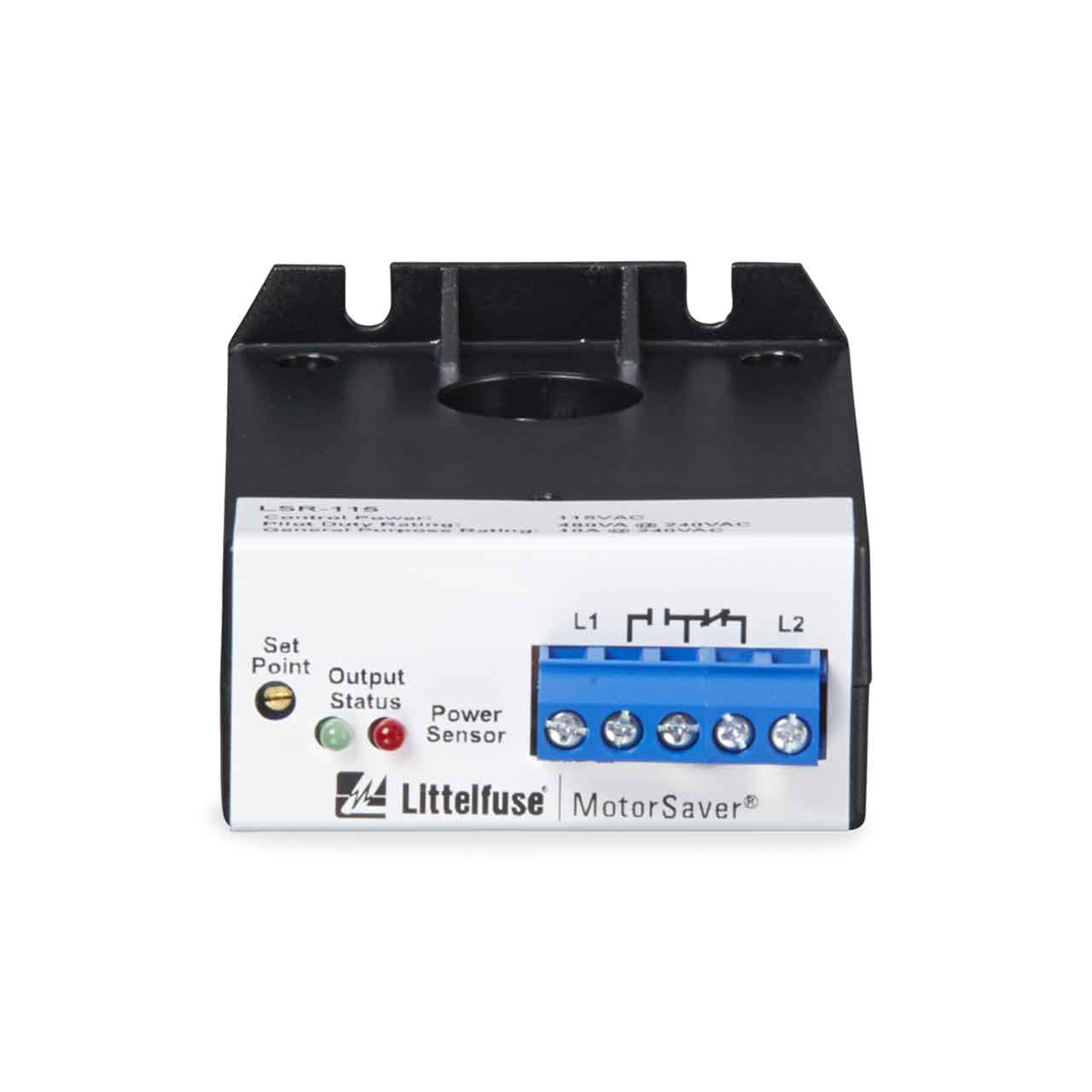

Littelfuse LSR-115 Load Sensor 115V 2-100 Amp

Littelfuse LSR-115 Load Sensor 115V 2-100 Amp

Discontinued or no longer available.

SKU : MSRLSR115

In Stock Quantity:0

:
Brand : Littelfuse/Symcom
Shipping calculated at checkout.

Description

Discontinued - Current Monitoring Relays

Littelfuse LSR-115 Load Sensor Description

The LSR-XXX load sensors use current levels to determine feed rates, tool wear, loss of prime on pumps, mixer viscosity and all types of overload and underload conditions. They may also be used to stage pump motors, chillers and other machinery. These devices combine a current transformer (CT) with Form C (SPDT) relay contacts to switch alarm circuits, contactors or any resistive or inductive load. One simple screwdriver adjustment will calibrate the sensor for all single-phase or 3-phase applications up to 100hp.

Littelfuse LSR-115 Load Sensor Typical Application

  • Conveyor Systems
  • HVAC Equipment
  • Saws and Grinders
  • Fan Motors
  • All Pumping Applications

Littelfuse LSR-115 Load Sensor Features

  • CSA and CSA-NRTL/C
  • Standard Surface Mount
  • Screw Terminals Eliminate Messy Pigtail Connections
  • Adjustable Potentiometer
  • Made in the USA and Backed with a Two Year Warranty

Specifications

Littelfuse LSR-115 Load Sensor Specifications

Functional Characteristics

  • Isolation . . . . . . . . . . . . . . . . . . . . . . 600VAC rms
  • Current Adjustment Range (Typical) . . . . . . . . 2-100A
  • Current Adjustment Range (Min-Max) . . . . . . . . 0.5-135A
  • Trip Setpoint . . . . . . . . . . . Adjustable to ±1% range

Control Power

  • LSR-24 . . . . . . . . . . . . . . . 24VAC
  • LSR-115 . . . . . . . . . . . . 115VAC
  • LSR-230 . . . . . . . . . . . . 230VAC
  • Max Current Ratings . . . . . . . .135A max. continuous

Output Contact Rating (SPDT)

  • Pilot Duty. . . . . . . . . . . . . . . . 480VA @ 240VAC, B300
  • General Purpose. . . . . . . . . . . . . . . . . . . . . . . . . . . 10A

Temperature Range . . . . . . . . . . . . . -20° to 70°C (-4° to 158°F)

Wire Size . . . . . . . . . #12-24AWG

Hole Size . . . . . . . . . 0.725” diameter

Terminal Torque . . . . . . . . . 7 in.-lbs.

Safety Marks

  • CSA, CSA-NRTL/C. . . . . . . . . . (File #46510)
  • CE . . . . . . . . . . IEC 60947

Enclosure . . . . . . . . .Polycarbonate

Weight . . . . . . . . . . . . . . . . . . . . . . . . 6.4oz

Mounting Method . . . . . . . . . . . . . . . Four #6 screws 3/4” in length

Caution: This product should not be relied upon solely for safety of life or safety applications.


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Littelfuse LSR-115 Load Sensor Resources


Littelfuse LSR-115 Product Specifications

Littelfuse LSR-115 Installation Bulletin
