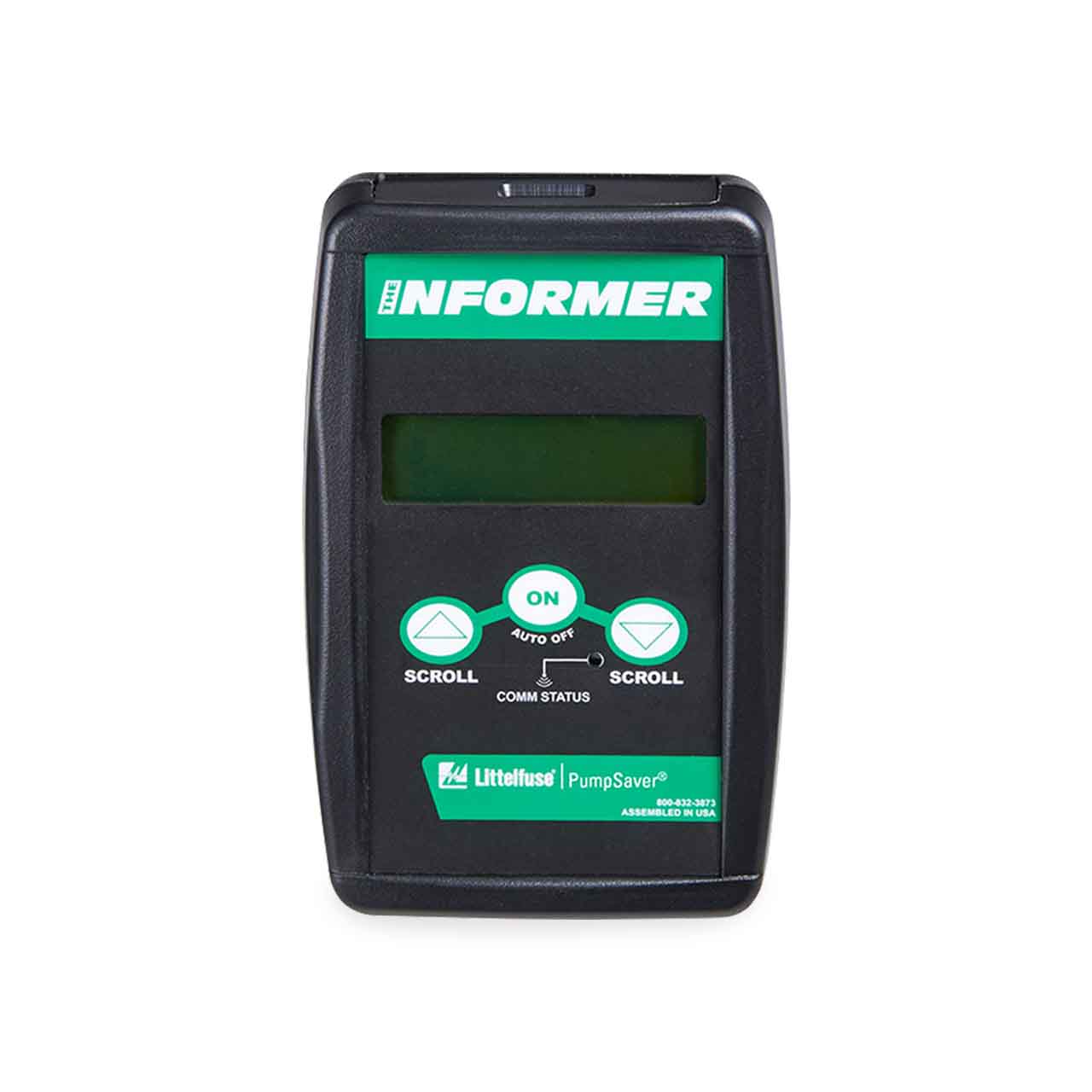

Littelfuse Informer Remote Diagnostic Tool For Single-Phase PumpSavers

Littelfuse Informer Remote Diagnostic Tool For Single-Phase PumpSavers

Ships within 24 hours

SKU : MSRINFORMER

In Stock Quantity:6

:
Brand : Littelfuse/Symcom
$307.27 USD
Shipping calculated at checkout.

Description

Littelfuse Informer Description

The Informer is a hand-held diagnostic tool designed for use with single-phase models equipped with infrared LED transmitters (111-Insider-P; 231-Insider-P; 232-Insider; 111P; 233P; 233P-1.5; 234-P and 235P).

The Informer uses an infrared receiver to access information sent from the relay which can be helpful for troubleshooting the system.

Each Littelfuse single-phase model listed above is equipped with an infrared LED that transmits valuable information from the device. To retrieve this information, the Informer’s receiver must be directed toward the unit’s LED transmitter and be within 8 feet of the unit. The green COMM STATUS light indicates when the Informer is receiving data from the unit. If communication is lost, the Informer will display the last values it received. The Informer will automatically shut off after 2 minutes of non-use.

Littelfuse Informer Features

The Informer Displays

  • Model Number
  • Real-time voltage, Current, and Power
  • Drywell and Overload Trip Points
  • Calibration Voltage
  • LRestart Delay Setpoint and Restart Delay Time Remaining
  • CT Size (if applicable)
  • Number of Pump Starts
  • Total Run-Time
  • Fault History for Last 20, Most Recent, Faults
  • Voltage, Current, Power, and Run-Time for Each Fault at Time of the Fault
  • Highest and Lowest Voltage and Current since Last Calibration

Specifications

Littelfuse Informer Specifications

Power Input . . . . . . . . . . . . 9 Volts DC (requires one 9-volt alkaline battery)

Auto Shut-Off . . . . . . . . . . . . . . . . . . 2 minutes

Communication

  • Signal . . . . . . . . . . . Infrared
  • Range . . . . . . . . . . .1-8 ft. (approx. 0.25 ft. when using IR Kit)
  • Data Update . . . . . . . . . . . . 4 seconds

Temperature Range . . . . . . . . . . . . . . . . 0 °C to 60°C (32°F to 140°F)

Accuracy

  • Voltage . . . . . . . . . . .±2%
  • Current . . . . . . . . . . .±2%
  • Power . . . . . . . . . . . ±4%
  • Maximum Input . . . . . . . 0.25 W

Resolution

  • Voltage . . . . . . . . . . .1.0VAC

Display (Liquid Crystal)

  • Size . . . . . . . . . . . 2 rows x 16 characters

Mechanical Life . . . . . . . . . . . 100,000 actuations min

Overlay Material . . . . . . . . . . Polyester

Enclosure

  • Weight . . . . . . . . . . . 6 oz.
  • Material . . . . . . . . . . . Black ABS 94HB


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Littelfuse Informer Product Resources


Littelfuse Informer Product Specifications

Littelfuse Informer Users Manual

Littelfuse Informer Engineering Specifications
