Littelfuse Informer Description

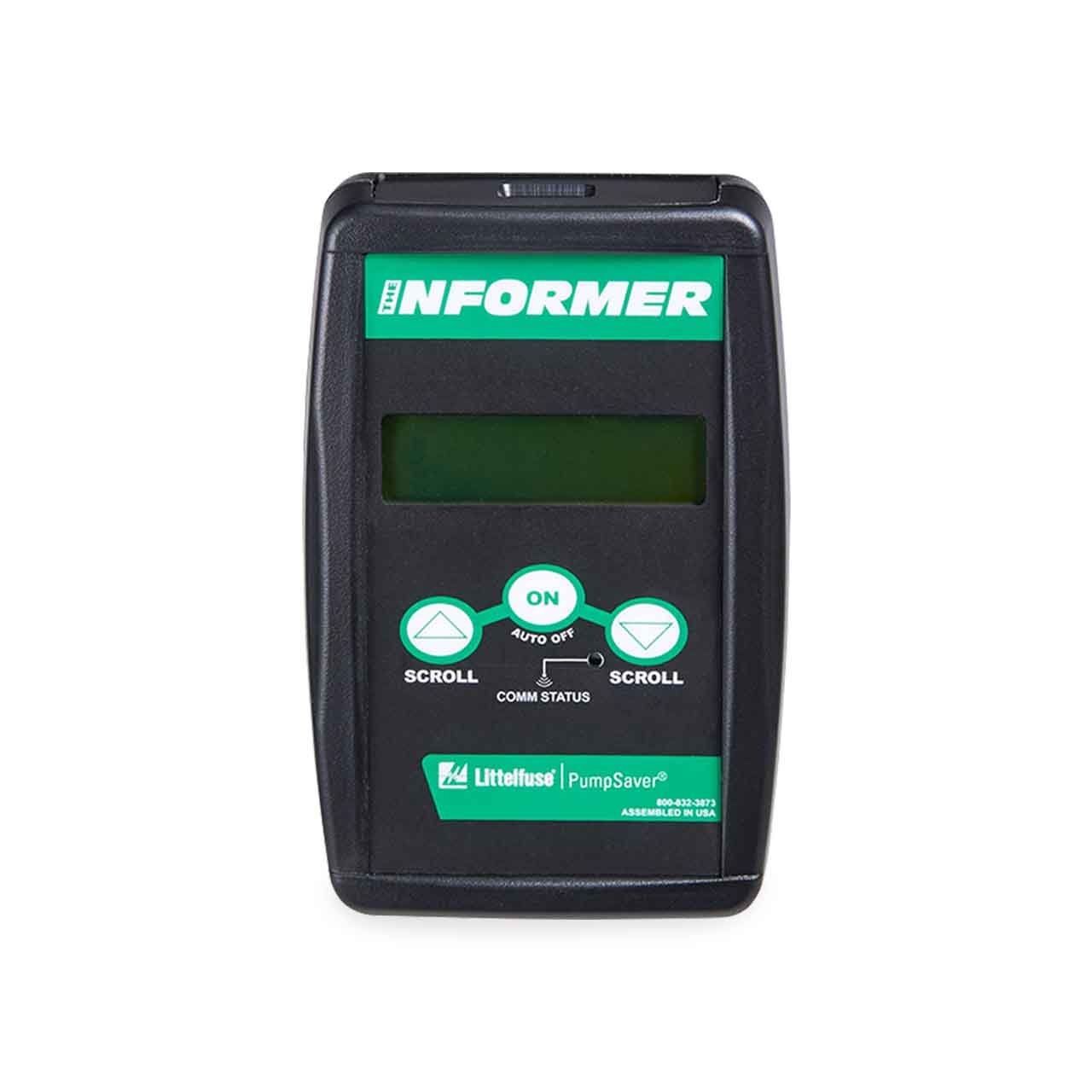

The Informer is a hand-held diagnostic tool designed for use with single-phase models equipped with infrared LED transmitters (111-Insider-P; 231-Insider-P; 232-Insider; 111P; 233P; 233P-1.5; 234-P and 235P).

The Informer uses an infrared receiver to access information sent from the relay which can be helpful for troubleshooting the system.

Each Littelfuse single-phase model listed above is equipped with an infrared LED that transmits valuable information from the device. To retrieve this information, the Informer’s receiver must be directed toward the unit’s LED transmitter and be within 8 feet of the unit. The green COMM STATUS light indicates when the Informer is receiving data from the unit. If communication is lost, the Informer will display the last values it received. The Informer will automatically shut off after 2 minutes of non-use.

Littelfuse Informer Features

The Informer Displays

• Model Number
• Real-Time, Line and Load Side Voltage
• Real-Time, Line and Load Side Voltage Unbalance
• Motor Run Hours
• Last 20 Faults
• Last 32 Motor Starts
• High and Low Voltage Trip Points
• Voltage Unbalance Trip Point
• Restart and Trip Delay Settings
• Voltage at Last Fault
• Communication Status LED
• Auto Shut Off
• Last Fault with Trip Conditions
• CT Size (if applicable)
• Non-Returnable

Littelfuse Informer Specifications

Power Input . . . . . . . . . . . . 9 Volts DC (requires one 9-volt alkaline battery)

Auto Shut-Off . . . . . . . . . . . . . . . . . . 2 minutes

Communication

• Signal . . . . . . . . . . . Infrared
• Range . . . . . . . . . . .1-8 ft. (approx. 0.25 ft. when using IR Kit)
• Data Update . . . . . . . . . . . . 4 seconds

Temperature Range . . . . . . . . . . . . . . . . 0 °C to 60 °C (32 °F to 140 °F)

Accuracy

• Voltage . . . . . . . . . . .±2%
• Current . . . . . . . . . . .±2%
• Power . . . . . . . . . . . ±4%
• Maximum Input . . . . . . . 0.25 W

Resolution

• Voltage . . . . . . . . . . .1.0VAC

Display (Liquid Crystal)

• Size . . . . . . . . . . . 2 rows x 16 characters

Mechanical Life . . . . . . . . . . . 100,000 actuations min

Overlay Material . . . . . . . . . . Polyester

Enclosure

• Weight . . . . . . . . . . . 6 oz.
• Material . . . . . . . . . . . Black ABS 94HB
