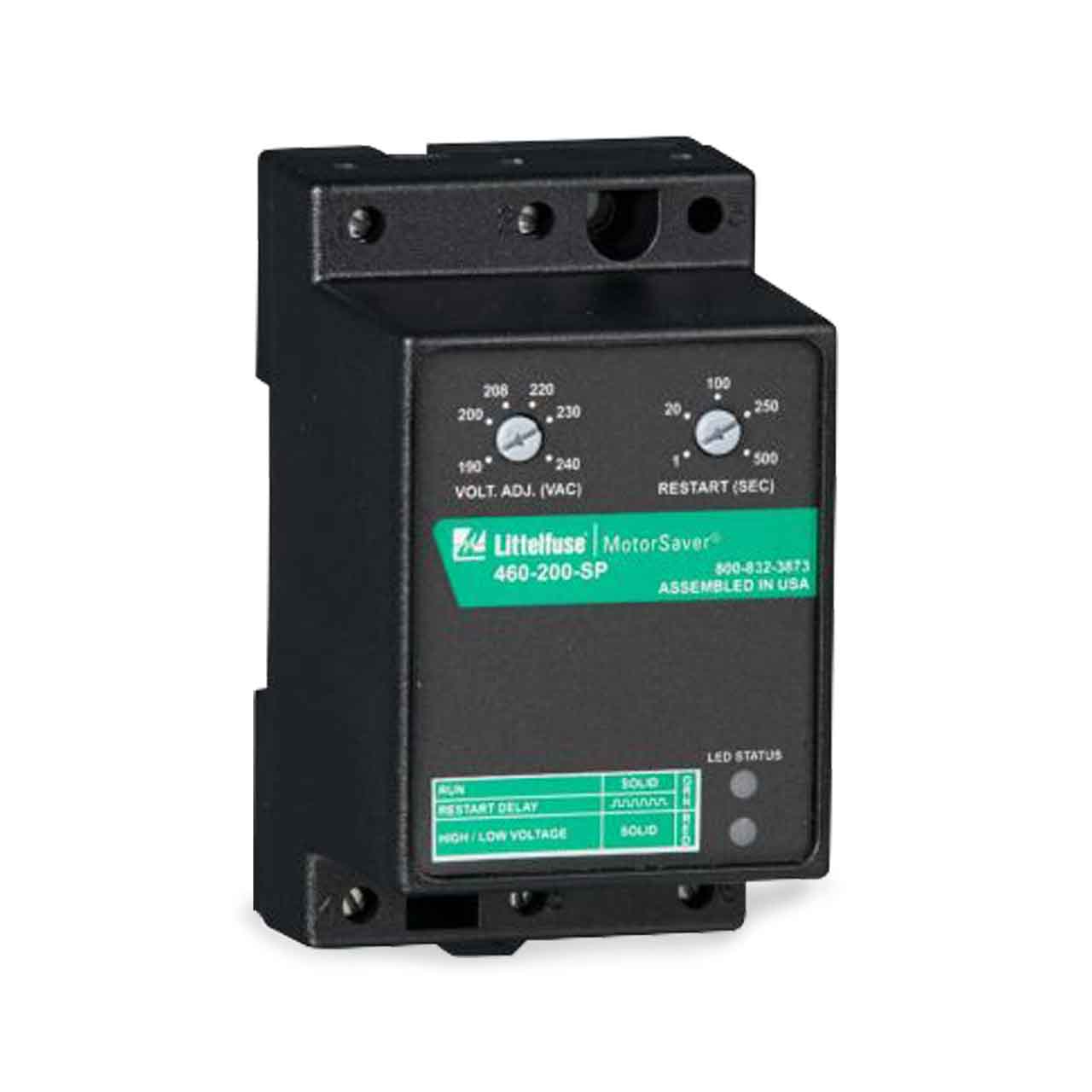

Littelfuse 460-200-SP Single-Phase Voltage Monitor

Littelfuse 460-200-SP Single-Phase Voltage Monitor

Usually ships within 1 week

SKU : MSR460200SP

In Stock Quantity:-1

:
Brand : Littelfuse/Symcom
$151.37 USD
Shipping calculated at checkout.

Description

Littelfuse 460-200-SP Voltage Monitor Product Description

The  460-200-SP is used on 190–240 V ac, 50*/60 Hz single-phase motors to protect them from damaging high and low voltage conditions. An adjustment knob allows the user to set a 1–500 second restart delay. The variable restart delay is also a power-up delay and can be utilized to stagger-start motors on the same system.

A unique microcontroller-based, voltage-sensing circuit constantly monitors the voltage to detect harmful power line conditions. When a harmful condition is detected, the MotorSaver’s output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to an acceptable level and a specified amount of time has elapsed (restart delay). The trip delay prevents nuisance tripping due to rapidly fluctuating power line conditions.

Littelfuse 460-200-SP Voltage Monitor Typical Applications

  • Fans
  • Compressors
  • Air Conditioners
  • Heat Pumps
  • Well Pumps
  • Sump Pumps
  • Small Conveyor Motors

Littelfuse 460-200-SP Voltage Monitor Features

  • Protects 3-Phase Motors From:
    • Low Voltage
    • High Voltage
    • Rapid Cycling
  • Standard 1-500 sec. Variable Restart Delay
  • Standard Surface or DIN Rail Mountable
  • Finger-Safe Terminals
  • One 10 Amp General Purpose Form C Relay
  • Optional Manual Reset
  • UL and cUL Listed
  • CE Compliant
  • 5-Year Warranty
  • Made in USA

Specifications

Littelfuse 460-200-SP Voltage Monitor Specifications

Single-Phase Line Voltage . . . . . . . . . . . . 190-240 VAC

Frequency . . . . . . . . . . . . . . . . . . . . . 50*/60Hz

Low Voltage (% of setpoint)

  • Trip . . . . . . . . . . . . . . . . . . . . . . . . . . 90% ±1%
  • Reset . . . . . . . . . . . . . . . . . . . . . . . . . 93% ±1%

High Voltage (% of setpoint)

  • Trip . . . . . . . . . . . . . . . . . . . . . . . . . . 110% ±1%
  • Reset . . . . . . . . . . . . . . . . . . . . . . . . .107% ±1%

Trip Delay Time

  • Low or High Voltage. . . . . . . . . . . . 4 seconds fixed

Restart Delay Time

  • After a Fault . . . . . . . . . . . . . . . . . 1-500 seconds adjustable
  • After a Complete Power Loss . . . . . . . 1-500 seconds adjustable

Output Contact Rating (1 Form C)

  • Pilot Duty. . . . . . . . . . . . . . . . . . . . . . . . 480VA @ 240VAC, B300
  • General Purpose. . . . . . . . . . . . . . . . . . . . . . .  10A @ 240VAC

Temperature Range

  • Operating . . . . . . . . . . . . . . . . . -40° to 70°C (-40° to 158°F)
  • Storage . . . . . . . . . . . . . . -40° to 80°C (-40° to 176°F)

Maximum Input Power   . . . . . . . . . . . . . 6 Watts

Class of Protection . . . . . . . . . . . . . IP20, NEMA 1 (finger safe)

Relative Humidity . . . . . . . . . . . . . . .10-95%, non-condensing per IEC 68-2-3

Terminal Torque. . . . . . 4.5 in.-lbs

Wire Type. . . . . . Stranded or solid 12-20 AWG, one per terminal

Electrostatic Discharge (ESD). . . . . .IEC 61000-4-2, Level 3, 6kV contact, 8kV air

Radio Frequency Immunity, Radiated. . . . . .150 MHz, 10V/m

Fast Transient Burst. . . . . .IEC 61000-4-4, Level 3, 3.5 kV input power and controls

Surge

  • IEC . . . . . . . . . . . . . . . . . IEC 61000-4-5, Level 3, 4kV line-to-line; Level 4, 4kV line-to-ground
  • ANSI/IEEE . . . . . . . . . . . C62.41 Surge and Ring Wave Compliance to a level of 6kV line-to-line
  • Hi-Potential Test . . . . . . . . . . . . . . . . Meets UL508 (2 x rated V +1000V for 1 min)

Temperature Range

  • UL . . . . . . . . . . . . . . . . . UL508 (File #E68520)
  • CE . . . . . . . . . . . . . . IEC 60947-6-2
Enclosure . . . . . . . . . . . . . . . . . . . . . . . . Polycarbonate

Weight . . . . . . . . . . . . . . . . . . . . . . . . 14.4 oz.

Mounting Method . . . . . . . . . . . 35mm DIN rail or Surface Mount (#6 or #8 screws)

*Note: 50Hz will increase all delay timers by 20%.


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Littelfuse 460-200-SP Voltage Monitor Resources


Littelfuse 460-200-SP Product Specifications

SymCom 460-200-SP Installation Bulletin

SymCom 460-200-SP Engineering Specifications
