Littelfuse 235P PumpSaver Plus Single-Phase 230V 5.0 to 15 HP CT's Required

Littelfuse 235P PumpSaver Plus Single-Phase 230V 5.0 to 15 HP CT's Required

Usually ships within 24 hours.

SKU : MSR235P

In Stock Quantity:2

:
Brand : Littelfuse/Symcom
$354.61 USD
Shipping calculated at checkout.

Description

Littelfuse 235P PumpSaver Plus Product Description

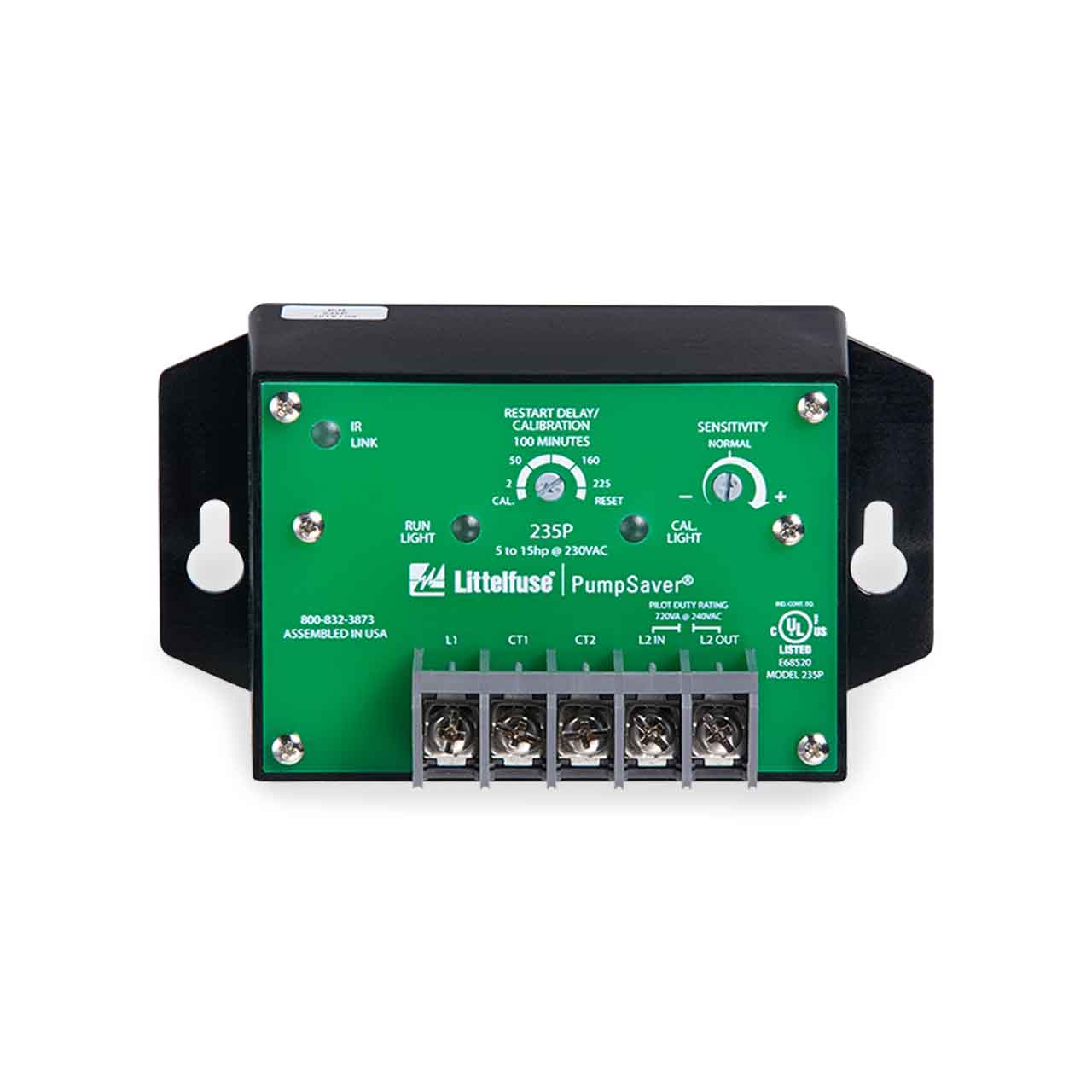

The Littelfuse 235P is designed to protect 5-15 hp, 230V, single-phase pumps from dry-well, dead-head, jammed impeller and overvoltage and undervoltage conditions. A calibration adjustment allows the 235P to be calibrated to your specific pumping applications, thereby reducing the possibility of false or nuisance tripping. A unique microcontroller based voltage and current-sensing circuit constantly monitors the incoming power for fluctuations causing overcurrent and undercurrent. When an abnormality, such as loss of suction is detected, the 235P deactivates its output relay and directly disconnects the pump motor.

Littelfuse 235P PumpSaver Plus Typical Application

  • Well Pump
  • Reservoir Pump
  • Transfer Pump
  • Sewage Pump

Littelfuse 235P PumpSaver Plus Technical Details

  • 50:5 CT Required for 5-7.5 HP
  • 75:5 CT Required for 10 HP
  • 100:5 CT Required for 15 HP
  • Protect Single Phase Pumps From the Following Conditions: Run Dry, Dead Head, Jammed Impeller, Rapid-Cycle, Overvoltage, and Undervoltage
  • 230 Volt, Single Phase
  • 5 - 15 HP Pumps
  • Calibrated for Specific Pumping Applications
  • Automatic Timeout and Pump Restart
  • Ideal for Submersible Pumps
  • State-of-the-Art Pump Protection
  • Infrared LED Communication to SymCom’s Informer
  • UL Listed
  • 5-Year Warranty
  • Made in US

Specifications

Littelfuse 235P PumpSaver Plus Specifications

Adjustments/Settings

  • Overcurrent . . . . . . . . . . . . . . . . . . 125% of calibration point
  • Underload (dry-well) . . . . . . . . . . . Adjustable (70 to 90% of calibrated run power)

Overvoltage . . . . . . . . . . . . . . . . . . . . . 265VAC

Undervoltage . . . . . . . . . . . . . . . . . . . . 190VAC

Number of Restarts Allowed in a 60-sec. Period (rapid-cycling) . . . . . . . 4

Trip Delay Time

  • Overcurrent . . . . . . . . . . . . . . . . 5 seconds
  • Dry-well . . . . . . . . . . . . 4 seconds

Restart Delay Times

  • Over/Undervoltage. . . . . . . . . . . . . . . . . 2 seconds
  • All Other Faults. . . . . . . Manual, 2-225 Minutes

Input Characteristics

  • Supply Voltage. . . . . . . . . . . . . . . . . . . . . . . . 230VAC
  • Load Range . . . . . . . . . . . . . . . . . 5 - 15 hp (external current transformer required)
  • Frequency. . . . . . . . . . . 50/60Hz (Note: 50Hz will increase all delay timers by 20%)

Output Characteristics

  • Output Contact Rating-SPST. . . . . . . . . . . . . . A300, 720VA @240VAC (10 amps max.)

Operating Temperature . . . . . . . . . . . . -40º to 55º C (-40º to 131º F)

Maximum Input Power . . . . . . . . . . . . . 5 W

Wire Size . . . . . . . . . . . . . Solid or Stranded 10 - 22AWG

Terminal Torque . . . . . . . . . . . .13 in.-lbs

Safety Marks

  • cULus Listed . . . . . . . . . . . . . . . . . . . . . .UL508, C22.2 No. 14

Weight . . . . . . . . . . . . . . . . . . . . . . . . 14 oz.

Mounting Method . . . . . . . . . . . . . . . . . . . . . . . #8 screws


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

LIttelfuse 235P PumpSaver Plus Resources


Littelfuse 235P Product Specifications

Littelfuse 235P Installation Bulletin

Littelfuse 235P Engineering Specifications

Warranty
