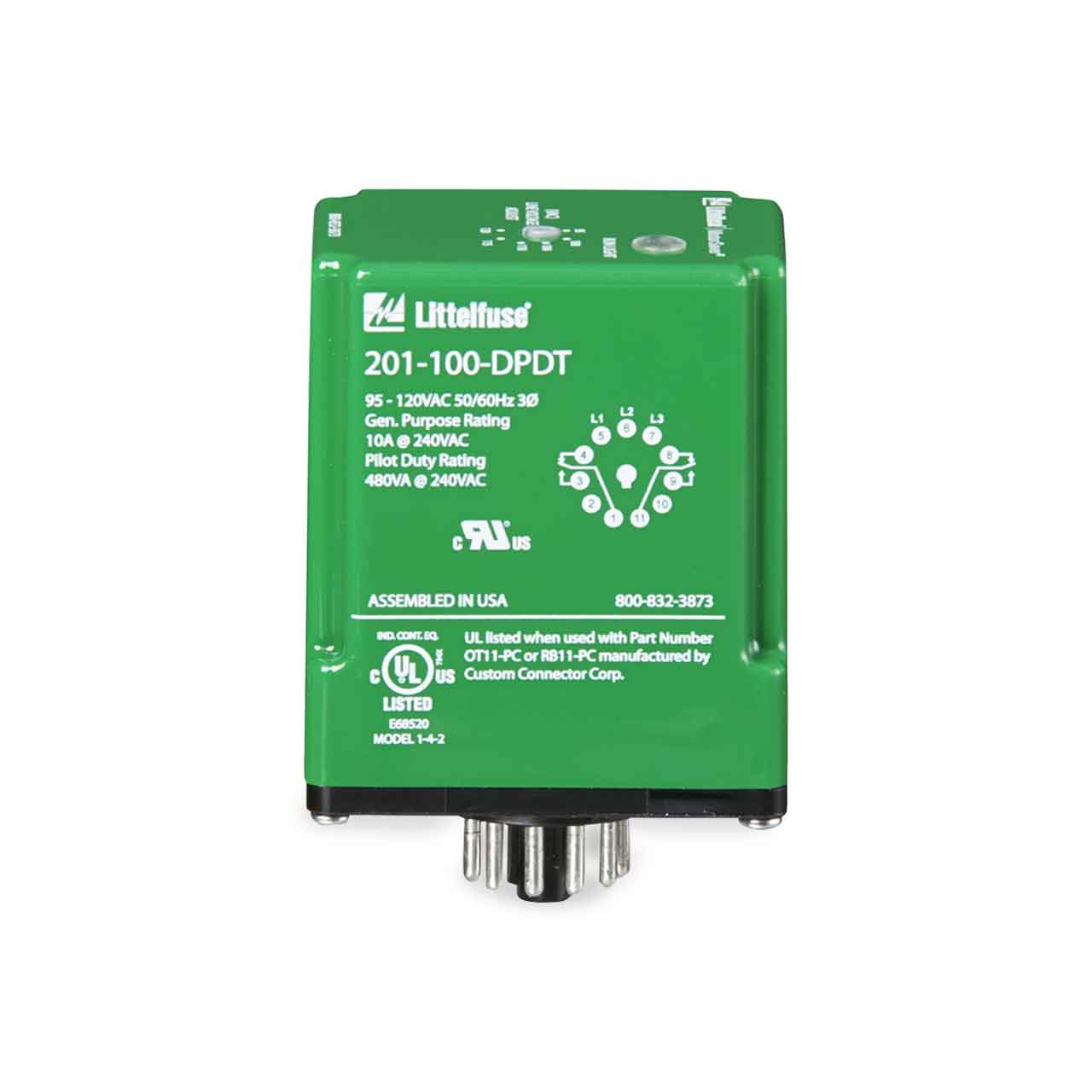

Littelfuse 201-100-DPDT Three-Phase Voltage Monitor

Littelfuse 201-100-DPDT Three-Phase Voltage Monitor

Usually ships within 1 week

SKU : MSR201-100-DPDT

In Stock Quantity:0

:
Brand : Littelfuse/Symcom
$199.57 USD
Shipping calculated at checkout.

Description

Littelfuse 201-100-DPDT Voltage Monitor Product Description

The 201A is a 3-phase, auto-ranging, dual-range voltage monitor that protects 190-480 V ac, 50/60 Hz motors regardless of size. The product provides a user selectable nominal voltage setpoint and the voltage monitor automatically selects between the 200 V and 400 V range. The 201A includes advanced single LED diagnostics, where color and light patterns distinguish between faults and normal conditions.

This unique microcontroller-based voltage and phase-sensing device constantly monitors the 3-phase voltages to detect harmful power line conditions. When a harmful condition is detected, the 201A’s output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to acceptable levels for a specified restart delay time.

Littelfuse 201-100-DPDT Voltage Monitor Typical Applications

  • Fans
  • Compressors
  • Air Conditioners
  • Heat Pumps
  • Well Pumps
  • Sump Pumps
  • Small Conveyor Motors

Littelfuse 201-100-DPDT Voltage Monitor Features

  • Protects 3-Phase Motors from:
    • Loss of any Phase
    • Low Voltage
    • High Voltage
    • Voltage Unbalance
    • Phase Reversal
    • Rapid Cycling
  • Four Adjustment Pots Provide Versatility for Numerous Applications.
  • Universal Range From 190-480VAC, 50/60Hz Provides Versatility to Handle Global Applications.
  • Bi-Color LED Indicates Trip Status and Provides Simple Troubleshooting.
  • Microcontroller-Based Circuitry Provides Better Accuracy and Higher Reliability Than Analog Designs.
  • Transient Protection Meets
  • IEEE and IEC Standards and Permits Operation Under Tough Conditions.
  • Single-Phase Conditions are Detected Regardless of Regenerated Voltages.

Specifications

Littelfuse 201-100-DPDT Voltage Monitor Specifications

3-Phase Line Voltage . . . . . . . . . . . . 95 to 120 VAC

Frequency . . . . . . . . . . . . . . . . . . . . . 50 or 60 Hz

Low Voltage (% of set point)

  • Trip . . . . . . . . . . . . . . . . . . . . . . . . . . 90% +/-1%
  • Reset . . . . . . . . . . . . . . . . . . . . . . . . . 93% +/-1%

Voltage Unbalance (NEMA)

  • Trip . . . . . . . . . . . . . . . . . . . . . . . . . . 6%
  • Reset . . . . . . . . . . . . . . . . . . . . . . . . . 4.5%

Trip Delay Time

  • High/Low Voltage Fault. . . . . . . . . . . . . . . . 4 seconds
  • Unbalance & Phasing Faults . . . . . . . 2 seconds

Restart Delay Time

  • After a Fault . . . . . . . . . . . . . . . . . 2 seconds
  • After a Complete Power Loss. . . . . . . 2 seconds

Output Contact Rating (SPDT)

  • Pilot Duty . . . . . . . . . . . . . . . . . . . . . . . . 480 VA @ 240 VAC Pilot Duty
  • General Purpose. . . . . . . . . . . . . . . . . . . . . . . . . . . .  10A @240 VAC

Temperature Range . . . . . -40° to 70°C (-40° to 158°F)

Power Consumption . . . . . . . . . . . . . 5 Watts (Max.)

Electrostatic Discharge(ESD) . . . . . . IEC 61000-4-2, Level 3, 6kV Contact, 8kV Air

Radio Frequency

  • Immunity, Radiated . . . . . . . . . . . .150MHz, 10V/m

Fast Transient Burst . . . . . . IEC 61000-4-4, Level 3, 2.5kV Input Power

Safety Marks

  • UL (OTO8PC Octal Socket Required) . . . . . . UL508 (File #E68520)
  • CE . . . . . . . . . . . . . . . . . . . . . IEC 60947-6-2

Weight . . . . . . . . . . . . . . . . . . . . . . . . 10.4 oz.

Mounting Method . . . . . . . . . . . DIN Rail or Surface Mount (plug in to OT11PC socket)

Socket Available . . . . . . . . . . . Model OT11PC (UL Rated 300V)

The 300V socket can be surface mounted or installed on DIN Rail.

Must use Model OT11PC socket for UL Rating!

*Note: Manufacturer’s recommended screw terminal torque for the RB Series and OT Series Octal Sockets is 12 in.-lbs.


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Littelfuse 201-100-DPDT Voltage Monitor Resources


Littelfuse 201-100-DPDT Product Specifications

SymCom 201-100-DPDT Installation Bulletin

SymCom 201-100-DPDT Engineering Specifications
