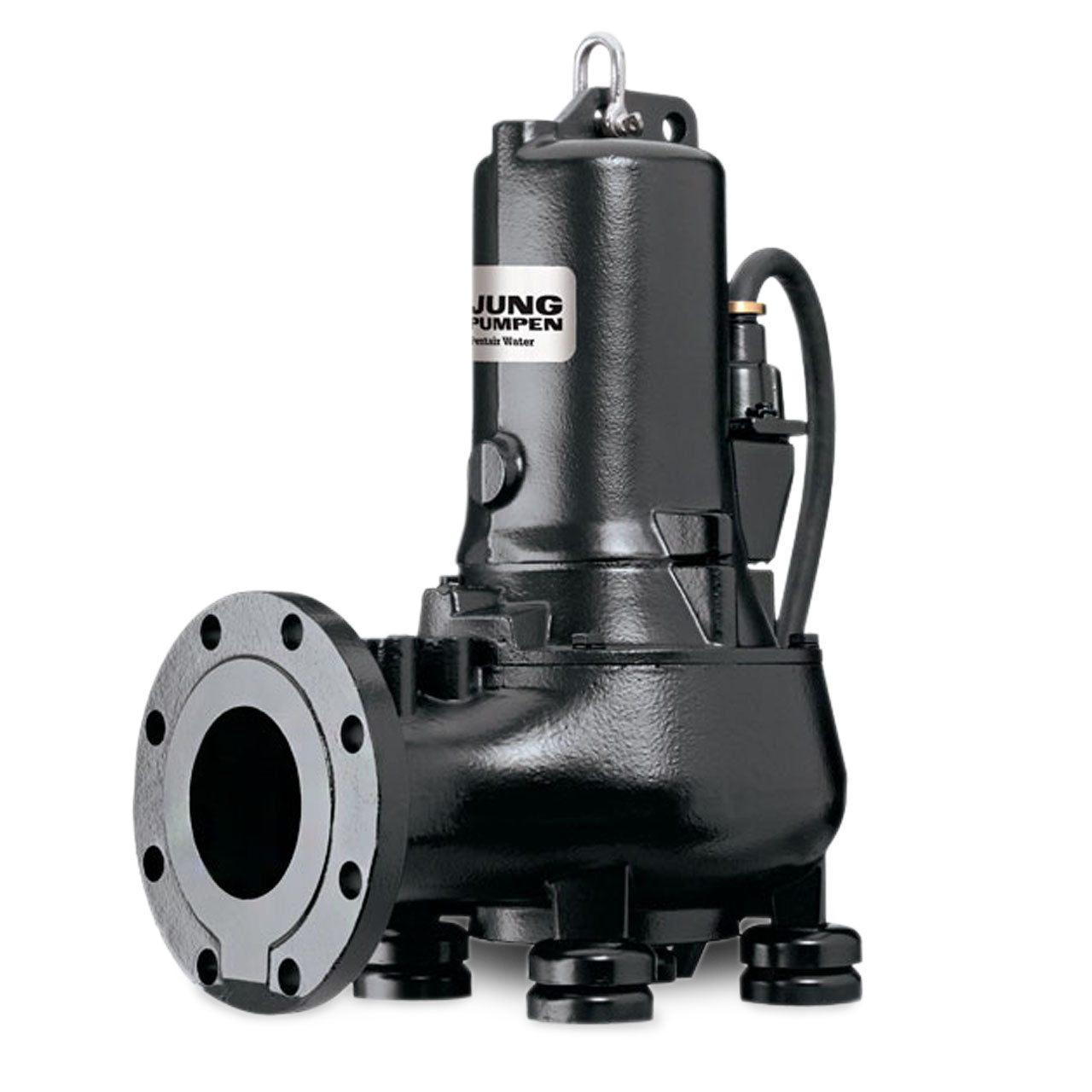

Jung Pumpen V2D-03 Submersible Solids Handling Pump 2 HP 200V 3PH
Jung Pumpen V2D-03 Submersible Solids Handling Pump 2 HP 200V 3PH
SKU : JPNV2D-03
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Jung Pumpen V2D Description
Introducing the New Multifree™Vortex Impeller System
Process Engineered For Superior SolidsHandling Performance
Multifree Vortex impellers provide superior clog resistance, especially in applications with long fibrous materials that could cause clogging of other types of impellers. Even if a towel should somehow get caught on the vortex impeller, it will easily fall off at the end of the pumping cycle.
In sewage situations where sand and/or other abrasive particles are present, the Multifree vortex impeller is almost completely recessed into the volute, allowing very little material to come in contact with the impeller, thus minimizing wear.
Jung Pumpen V2D Specifications
- 31 feet max head
- 396 GPM max flow rate
- 2 HP, 200V, 3 PH
- 25' SOOW 12/6 AWG12 power cable
- Ball bearings
- NBR 70 o-rings
- Lip type shaft seal (motor side)
- SiC mechanican shaft seal (medium side)
- ANSI #150 Discharge Connection
- Cast iron volute material
- Cast iron vortex impeller
- 2K Epoxy coated
Jung Pumpen V2D Innovative Features
- High speed rotary action spins solids away from, not through, impeller
- Easily handles up to 4" abrasive, fibrous and solid matter
- Commercial grade components for long service life and high operational reliability
- High efficency motor
- Continuous duty rated motor
- Air cooled motor which provides superior cooling and longer life
- Oil free motor for cleaner maintenance and no oil disposal issues
- Silicon carbide mechanical seals provides superior abrasion resistance
- Dry run safe seals conducts heat from seal when pump is run dry
- Double seal with leak detection/seal fail alert (optional)
Jung Pumpen V2D Performance Curve
Jung Pumpen V2D Product Resources
Download Jung Pumpen V2D Sales Brochure
