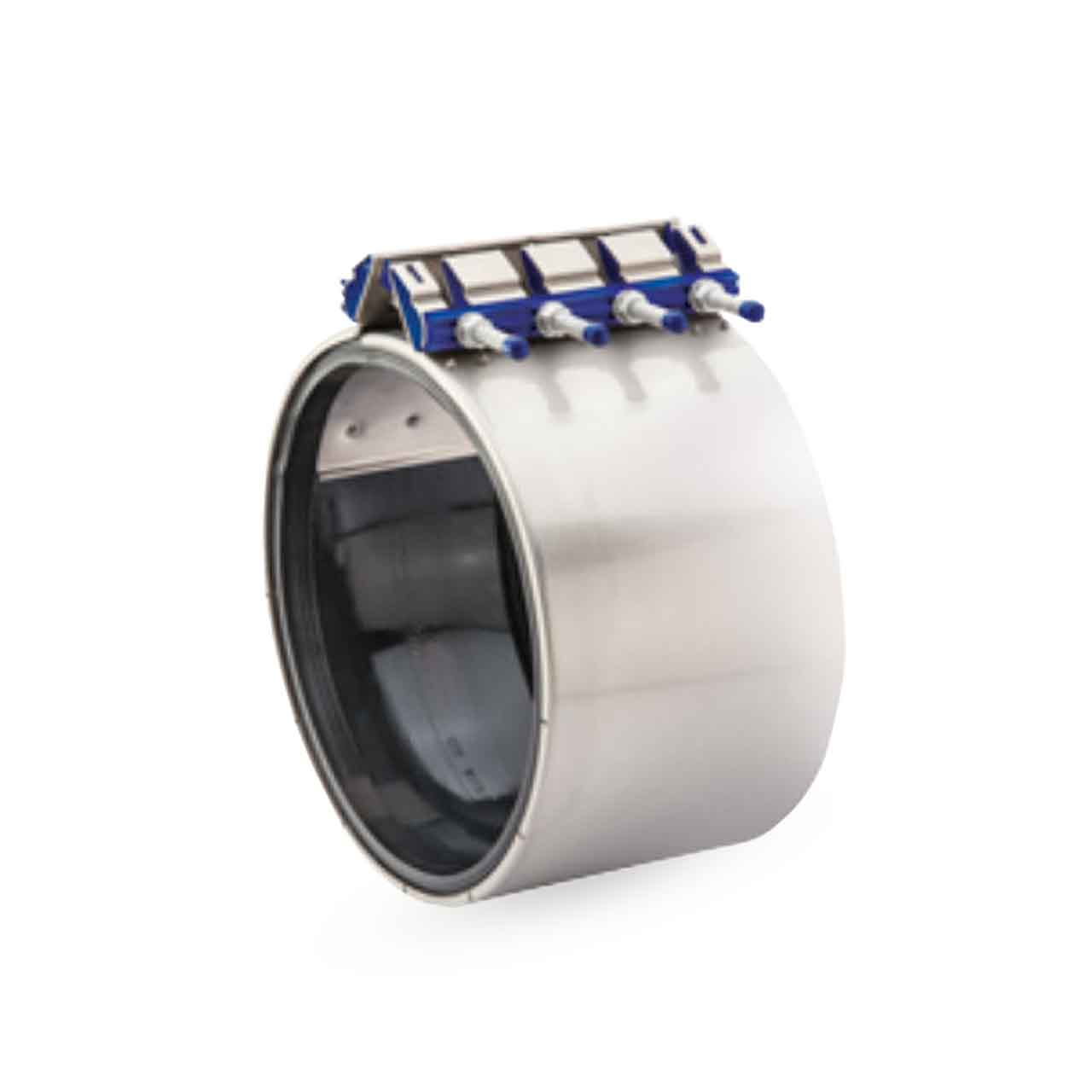

Hymax Versa 283-56-0653-11 ND 24" EPDM Stainless Steel Coupling 25.72-26.98 O.D.

Hymax Versa 283-56-0653-11 ND 24" EPDM Stainless Steel Coupling 25.72-26.98 O.D.

Usually ships within 1 week

SKU : HMX283-56-0653-11

In Stock Quantity:0

:
Brand : Hymax
$2,244.36 USD
Shipping calculated at checkout.

Description

The HYMAX VERSA product family provides a highly versatile stainless steel coupling solution for connecting and repairing a wide selection of water and wastewater pipes. HYMAX VERSA products stand out for their outstanding durability and flexibility and are exceptionally well-suited for hot soil conditions.

HYMAX VERSA products can join pipes with the same or different diameters as well as repair holes and cracks. This multi-functionality, along with extra-wide tolerance, enables customers to maintain smaller inventories and save stock costs and shelf space.

Hymax Versa Coupling Features

  • 283-56-0653-11; 24" EPDM Stainless Steel Coupling
  • Unique Versatile Coupling, can be Stab Fit or Wrapped Around Pipe
  • Durable Stainless Steel, Monoblock Design
  • Allows 3° Dynamic Deflection Per End, Reducing Future Pipe Damage
  • Fast and Easy to Install
  • Substantially Reduces Inventory
  • Durable Under Extreme Conditions
  • 1.5"-24" - One Closing Mechanism. 26"-70" - Two Closing Mechanisms
  • Available in Standard and High-Pressure Versions

Specifications

Hymax Versa Coupling Specifications

  • Meets or Exceeds Standards AWWA C-219, AWWA C-227, NSF 61, NSF 372, EN-681
  • SIZE: 24" Nominal Pipe Size
  • OVERALL RANGE: 11"
  • PIPE O.D. RANGE: 25.72 - 26.98
  • WORKING PRESSURE: 160 PSI
  • RATED PRESSURE: 240 PSI
  • TORQUE: 150 FT-LBS
  • MATERIALS:
    • BODY: Stainless Steel AISI 304
    • LUG MATERIAL: Polycarbonate
    • COMPRESS BEAM & ADJUSTING PIN: Casting AISI 304 of ASTM-A351-CF8
    • GASKET: AISI 304 Stainless Steel
    • GASKET BRIDGE: AISI 304 Stainless Steel
    • INNER PLATE: AISI 304 Stainless Steel
    • INNER PLATE ATTACHMENT: Connected to the Body by Reinforced Bolts Manufactured of Ultem Resin 1000 with Insert Socket Set Screw AISI 316
    • NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Hymax Versa Coupling Product Resources


Download HYMAX Versa Family Brochure

Download HYMAX Versa Coupling Specifications

Download HYMAX Versa Coupling Installation Instructions
