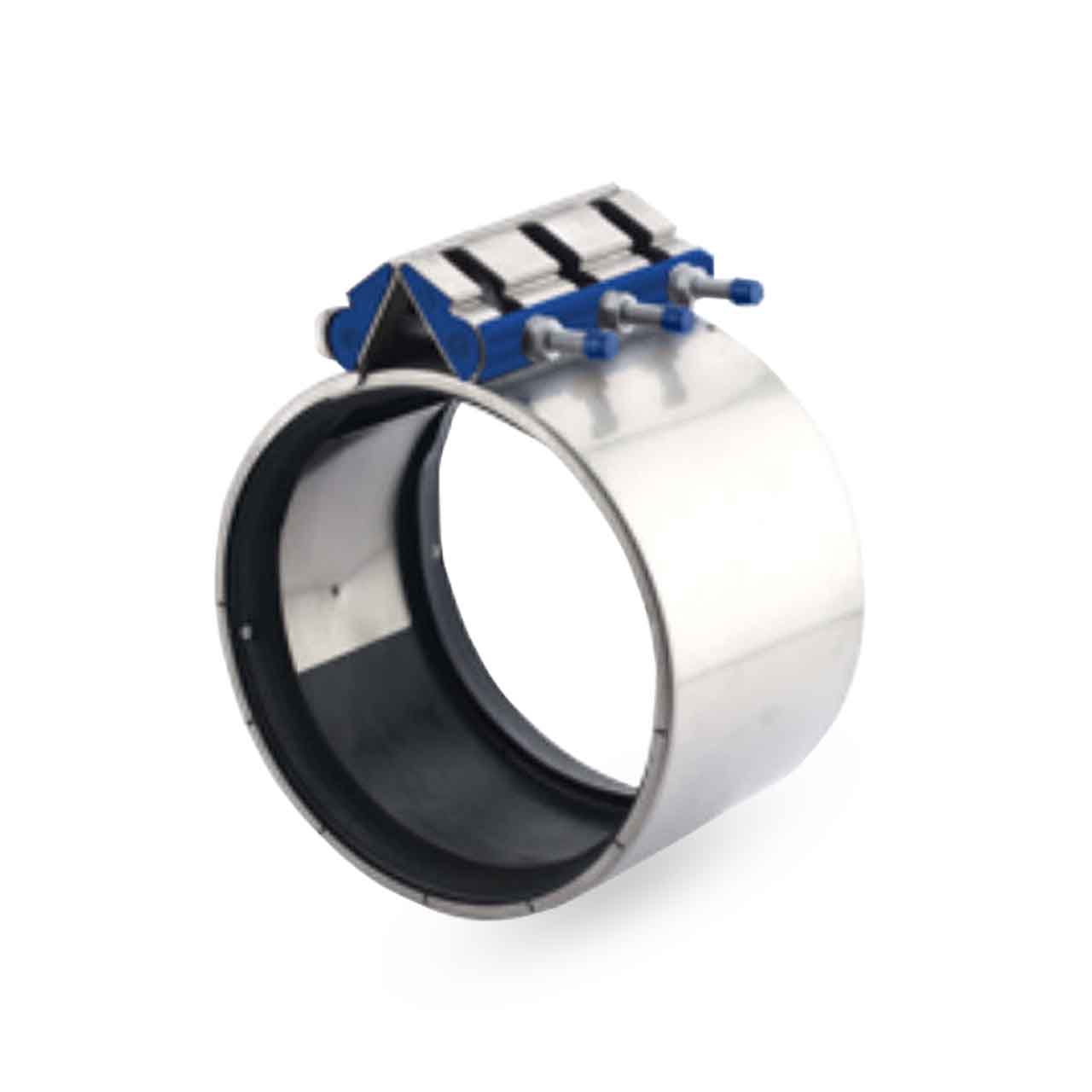

Hymax Versa 111-56-0059-24 ND 2.0" EPDM High Pressure Stainless Steel Coupling 2.32-2.79 O.D.
Hymax Versa 111-56-0059-24 ND 2.0" EPDM High Pressure Stainless Steel Coupling 2.32-2.79 O.D.
SKU : HMX111-56-0059-24
In Stock Quantity:0
:
Brand
:
Regular price
$235.14 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
The HYMAX VERSA product family provides a highly versatile stainless steel coupling solution for connecting and repairing a wide selection of water and wastewater pipes. HYMAX VERSA products stand out for their outstanding durability and flexibility and are exceptionally well-suited for hot soil conditions.
HYMAX VERSA products can join pipes with the same or different diameters as well as repair holes and cracks. This multi-functionality, along with extra-wide tolerance, enables customers to maintain smaller inventories and save stock costs and shelf space.
Hymax High Pressure Versa Coupling Features
- 111-56-0059-24; 2.0" EPDM High Pressure Stainless Steel Coupling
- Unique Versatile Coupling, can be Stab Fit or Wrapped Around Pipe
- Durable Stainless Steel, Monoblock Design
- Allows 3° Dynamic Deflection Per End, Reducing Future Pipe Damage
- Fast and Easy to Install
- Substantially Reduces Inventory
- Durable Under Extreme Conditions
- 1.5"-24" - One Closing Mechanism. 26"-70" - Two Closing Mechanisms
- Available in Standard and High-Pressure Versions
Specifications
Specifications
Hymax High Pressure Versa Coupling Specifications
- Meets or Exceeds Standards AWWA C-219, AWWA C-227, NSF 61, NSF 372 and EN-681
- SIZE: 2.0" Nominal Pipe Size
- OVERALL RANGE: 5.5"
- PIPE O.D. RANGE: 2.32 - 2.79
- WORKING PRESSURE: 348 PSI
- RATED PRESSURE: 522 PSI
- TORQUE: 35 FT-LBS
- MATERIALS:
- BODY: Stainless Steel AISI 304
- LUG MATERIAL: Polycarbonate
- COMPRESS BEAM & ADJUSTING PIN: Casting AISI 304 of ASTM-A351-CF8
- GASKET: EPDM Compounded for Water and Sewage, Meets International Standards for Contact with Drinking Water.
- GASKET BRIDGE: AISI 304 Stainless Steel
- INNER PLATE: AISI 304 Stainless Steel
- INNER PLATE ATTACHMENT: Connected to the Body by Reinforced Bolts Manufactured of Ultem Resin 1000 with Insert Socket Set Screw AISI 316
- NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax High Pressure Versa Coupling Product Resources
Download HYMAX Versa Family Brochure
