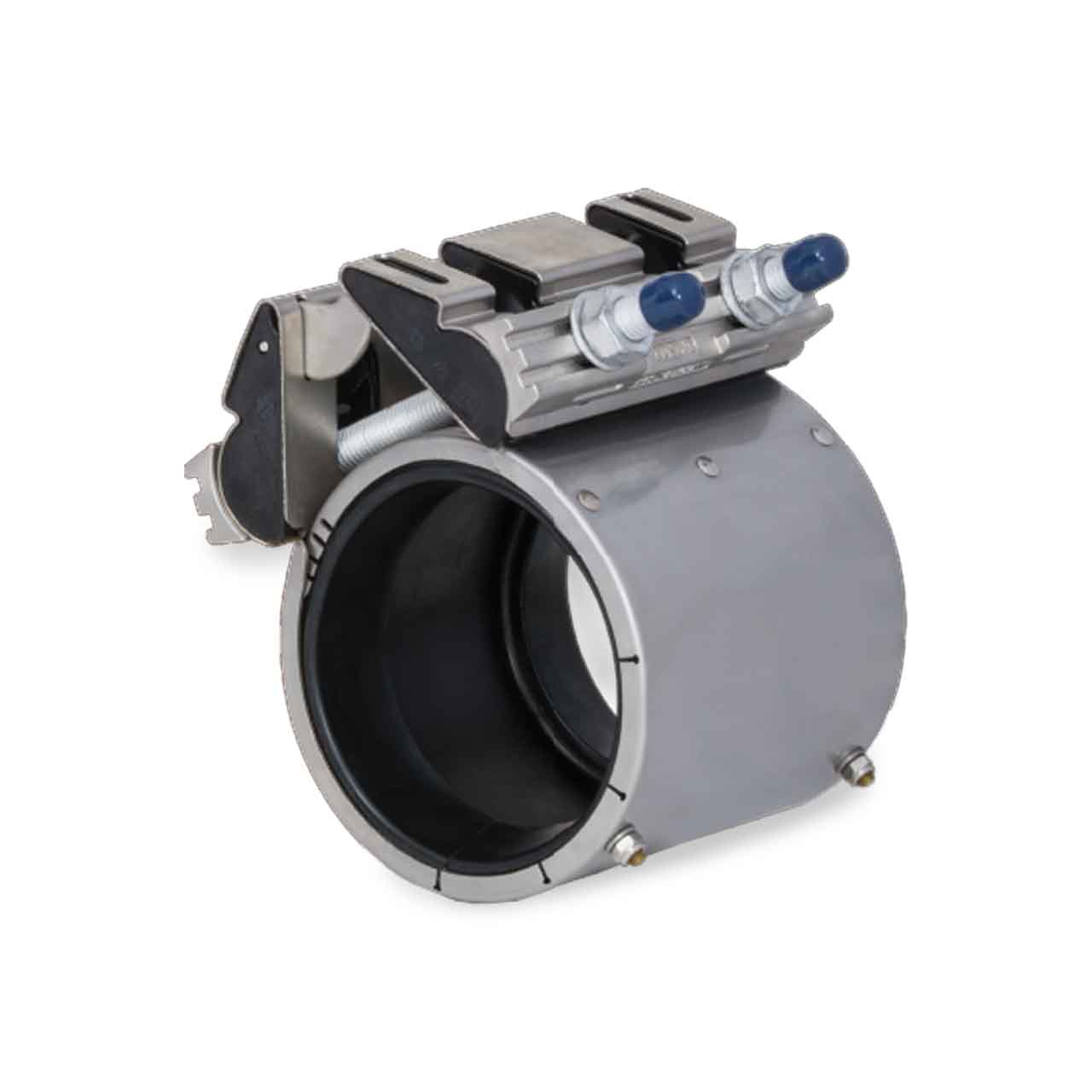

Hymax Versa 104-56-0071-16 ND 2.5" EPDM Encapsulation Coupling 2.79-3.31 O.D.
Hymax Versa 104-56-0071-16 ND 2.5" EPDM Encapsulation Coupling 2.79-3.31 O.D.
SKU : HMX104-56-0071-16
In Stock Quantity:0
:
Brand
:
Regular price
$137.51 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Available in sizes 1.5″-3″, HYMAX VERSA Encapsulation is the only encapsulation repair sleeve of its size to quickly and easily repair coupler leaks, as well as other similar applications. It can be wrapped around leaking joints while water pressure is lowered to avoid cutting pipe, water shutdowns, boil water notifications and pipe de-chlorination processes.
The HYMAX VERSA Encapsulation accommodates 3 types of pipes – sizes 1.5″-3″ can repair joints connected to PVC and galvanized steel pipes. Size 2″ can repair IPS HDPE pipe, using the attached FLAT GASKET KIT with one gasket on each side of the product.
The durable HYMAX VERSA Encapsulation is made from stainless steel, and allows dynamic deflection of the pipe for up to three degrees per side, reducing future pipe cracks and breaks. Comparatively lightweight with only two bolts to tighten for the 5.5” length and four bolts for the 11” length, HYMAX VERSA Encapsulation make repairs safer and faster with less time spent in the ditch.
Hymax Versa Encapsulation Coupling Features
- 104-56-0071-16; 2.5" EPDM Encapsulation Coupling
- A Unique Encapsulation to Quickly and Easily Repair Bell-Joint and Coupling Leaks
- Fast and Easy to Install. Can be Wrapped Around Joints While Water Pressure is Lowered to Avoid Water Shutdowns.
- Only 2 or 4 Top-Facing Bolts to Tighten
- Durable Stainless Steel, Monoblock Design
- Allows 3° Dynamic Deflection Per End, Reducing Future Pipe Damage
Specifications
Specifications
Hymax Versa Encapsulation Coupling Specifications
- Meets or Exceeds Standards AWWA C-219, AWWA C-227, NSF 61, NSF 372 and EN-681
- SIZE: 2.5" Nominal Pipe Size
- LENGTH: 5.5"
- PIPE O.D. RANGE: 2.79 - 3.31
- WORKING PRESSURE: 232 PSI
- RATED PRESSURE: 350 PSI
- TORQUE: 35 FT-LBS
- MATERIALS:
- BODY: Stainless Steel AISI 304
- LUG MATERIAL: Polycarbonate
- COMPRESS BEAM & ADJUSTING PIN: Casting AISI 304 / ASTM-A351-CF8
- GASKET: EPDM Compounded for Water and Sewage, Meets International Standards for Contact with Drinking Water.
- GASKET BRIDGE: AISI 304 Stainless Steel
- NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax Versa Encapsulation Coupling Product Resources
Download HYMAX Versa Encapsulation Coupling Family Brochure
Download HYMAX Versa Encapuslation Coupling Specifications
Download HYMAX Versa Encapsulation Coupling Installation Instructions
