Hymax Grip 894-56-12322-16 ND 12" EPDM 90 Degree Elbow

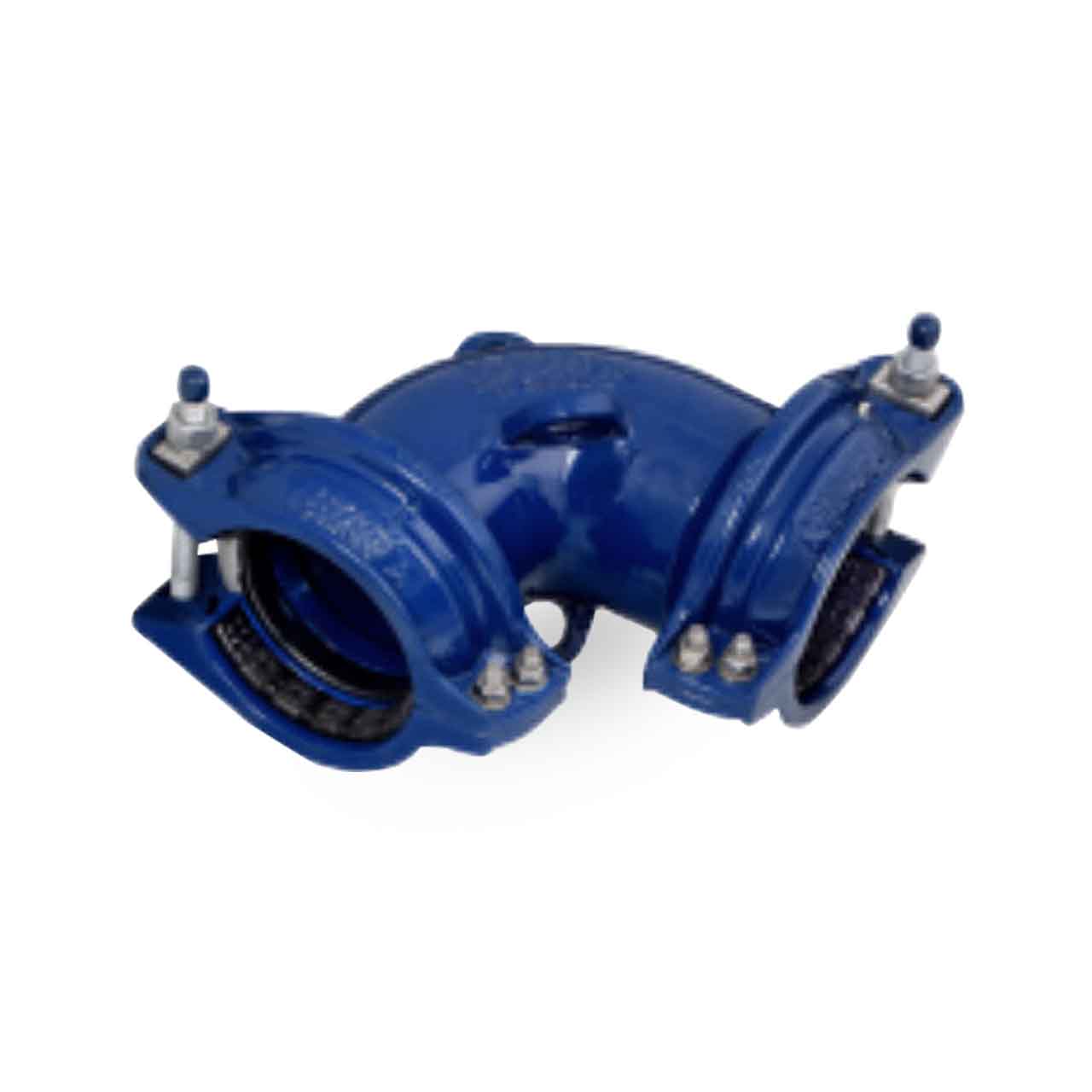

Hymax Grip 894-56-12322-16 ND 12" EPDM 90 Degree Elbow
SKU : HMX894-56-12322-16
In Stock Quantity:0
:
Brand
:
Regular price
$3,711.21 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
HYMAX GRIP ELBOW is a wide-rage restraint coupling with an elbow of 45° or 90° angle. It connects a large variety of pipe materials and different diameters. Its unique patented radial closing mechanism holds pipes tightly in place during installation, allowing full control over the gap between pipes. It comes in 2 configurations of either 45° or 90°.
Fast and easy to install, HYMAX GRIP ELBOW has only 2 to 4 bolts.Its pressure-assisted hydraulic gasket allows for dynamic deflection of 4° per end.
Hymax Grip Elbow Features
- 894-56-12322-16; 12" EPDM 90 Degree Elbow
- Joins and Restrains A Wide Range of Piping Types and Diameters
- Unique Radial Gripping System Prevents Pipe Motion
- Universal Gripping Teeth Fit Metal and Plastic Pipes
- Ready to use, Stab-Fit Design
- Allows 4° Dynamic Deflection Per End, Reducing Future Damage
- Durable Ductile Iron Body
- Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
Specifications
Specifications
Hymax Grip Elbow Specifications
- Meets or Exceeds Standards AWWA C-219, NSF 61 and NSF 372
- SIZE: 12" Nominal Diameter Pipe Size
- PIPE O.D. RANGE: 12.68 - 13.39
- WORKING PRESSURE: 232 PSI
- RATED PRESSURE: 350 PSI
- TORQUE: 200 FT-LBS
- MATERIALS:
- END RINGS: Ductile Iron Casting ASTM A536 Grade 60-40-18
- CENTER RING: Ductile Cast Iron Casting ASTM A536 Grade 65-45-12 All Sizes Include Lifting Eye
- GASKETS: EPDM and NBR Available, Meets International Standards for Contact with Drinking Water
- GRIP CHAIN: AISI-420
- BRIDGE: AISI 304 Stainless Steel
- SPHERICAL SPACERS: AISI 304 Stainless Steel
- COATING: 100% Fusion Bonded Epoxy for Enhanced Corrosion Protection. Nominal Thickness 14 MIL.
- NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax Grip Elbow Product Resources
Download HYMAX Grip Family Brochure
