Hymax Grip 892-56-04111-16 ND 4.0" EPDM SwivelJoint
Hymax Grip 892-56-04111-16 ND 4.0" EPDM SwivelJoint
SKU : HMX892-56-04111-16
In Stock Quantity:0
:
Brand
:
Regular price
$1,782.23 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

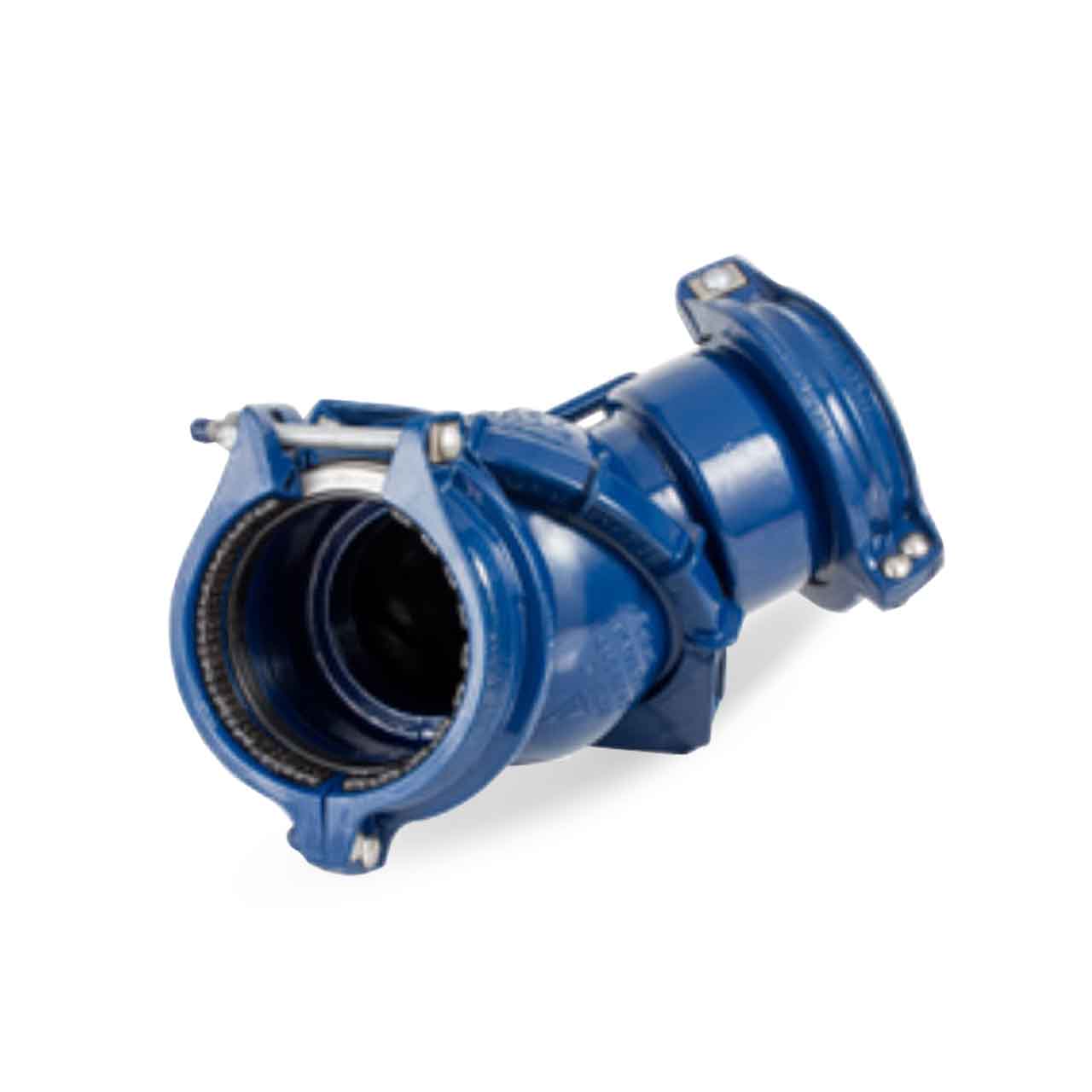

HYMAX GRIP SwivelJoint can connect and restrain two pipes at any angle from 0° to 90°, providing an efficient solution for field situations where irregular angle between pipes exist. A replacement pipe and one coupling complement the SwivelJoint installation.
Based on the market-leading HYMAX GRIP restraint by Hymax, this one-of-a-kind wide-range product includes all of its advantages: ready to use, stab-fit design; unique radial gripping system that prevents pipe motion; universal gripping teeth that fit metal and plastic pipes; up to 4° dynamic deflection per end that reduces future pipe damage, a patented hydraulically-assisted gasket with 2-stage sealing and more.
Hymax Grip SwivelJoint Features
- 892-56-04111-16; 4.0" EPDM SwivelJoint
- Unique Product with One Swiveling End
- Joins and Restrains A Wide Range of Piping Types and Diameters, at any Angle from 0° to 90°
- Unique Radial Gripping System Prevents Pipe Motion
- Universal Gripping Teeth Fit Metal and Plastic Pipes
- Ready to use, Stab-Fit Design
- Allows 4° Dynamic Deflection Per End, Reducing Future Damage
- Durable Ductile Iron Body
- Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
Specifications
Specifications
Hymax Grip SwivelJoint Specifications
- Meets or Exceeds Standards AWWA C-219, NSF 61, NSF 372
- SIZE: 4.0" Nominal Diameter Pipe Size
- PIPE O.D. RANGE: 4.40 - 5.10
- WORKING PRESSURE: 232 PSI
- RATED PRESSURE: 350 PSI
- TORQUE: 45 FT-LBS
- MATERIALS:
- END RINGS: Ductile Iron Casting ASTM A536 Grade 60-40-18
- CENTER RING: Ductile Iron Casting ASTM A536 Grade 65-45-12
- GASKETS: EPDM and NBR Available, Meet International Standards for Contact with Drinking Water
- GRIP CHAIN: AISI 440 2B
- BRIDGE: AISI 304 Stainless Steel
- SPHERICAL SPACERS: AISI 304 Stainless Steel
- COATING: 100% Fusion Bonded Epoxy for Enhanced Corrosion Protection. Nominal Thickness 14 MIL.
- NUTS, BOLTS AND WASHERS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax Grip SwivelJoint Product Resources
Download HYMAX Grip Family Brochure
