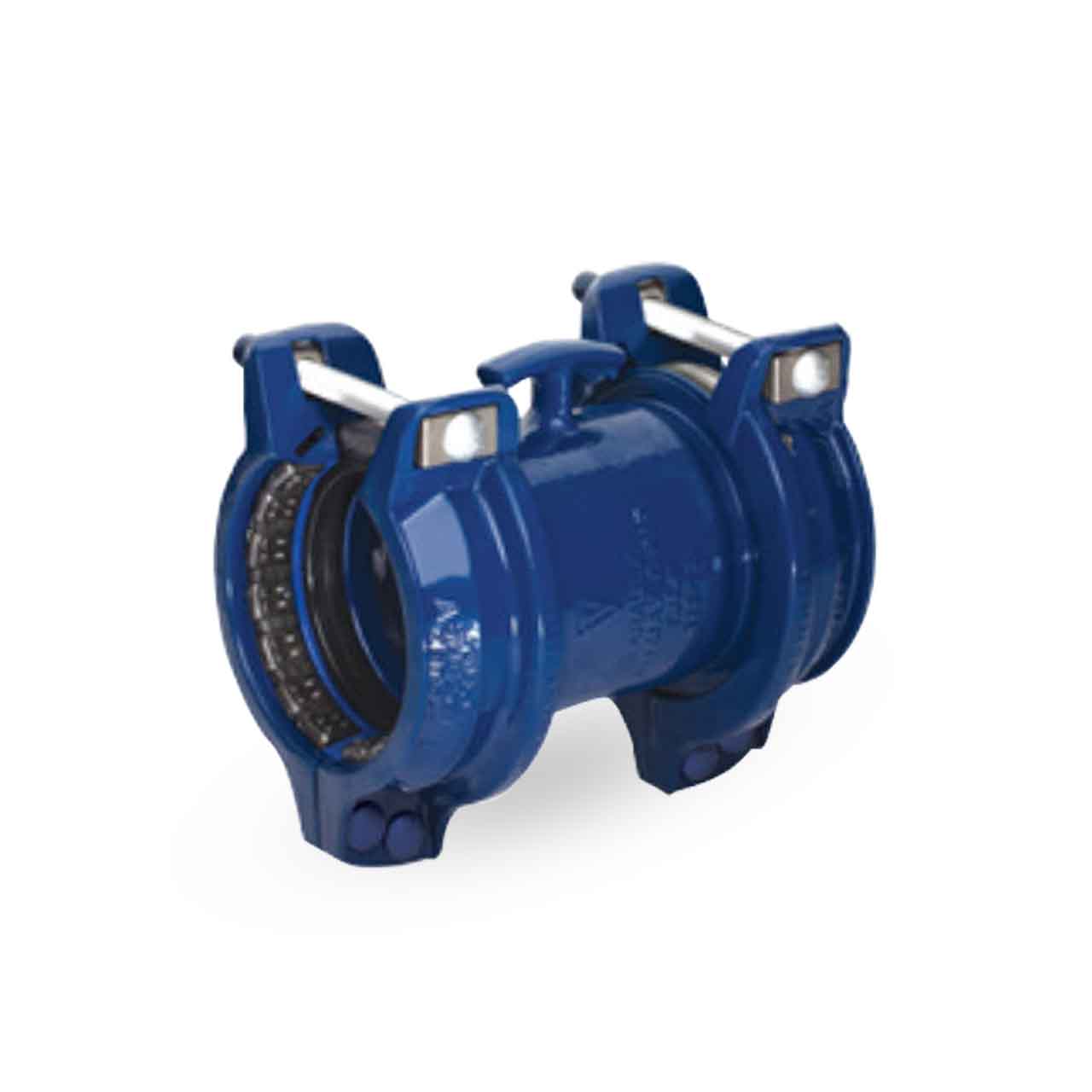

Hymax Grip 890-58-12322-16 ND 12" EPDM High Pressure Coupling Restraint 12.68-13.39 O.D.
Hymax Grip 890-58-12322-16 ND 12" EPDM High Pressure Coupling Restraint 12.68-13.39 O.D.
SKU : HMX890-58-12322-16
In Stock Quantity:0
:
Brand
:
Regular price
$2,059.98 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
There are many situations that require couplings with additional restraining power. Krausz restraint products combine the patented technology of the HYMAX coupling with a unique restraint system, joining pipe ends while preventing any possible movement. Designed using Krausz's innovation and patented technology, our restraining solutions work with all metal and plastic pipes and are suitable for a wide variety of applications.
Hymax Grip High Pressure Coupling Features
- 890-58-12322-16; 12" EPDM Coupling Restraint
- Joins and Restrains A Wide Range of Piping Types and Diameters
- Unique Radial Gripping System Prevents Pipe Motion
- Universal Gripping Teeth Fit Metal and Plastic Pipes
- Ready to use, Stab-Fit Design
- Allows 4° Dynamic Deflection Per End, Reducing Future Damage
- Durable Ductile Iron Body
- Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
Specifications
Specifications
Hymax Grip High Pressure Coupling Specifications
- Meets or Exceeds Standards AWWA C-219, NSF 61, NSF 372
- SIZE: 12" Nominal Diameter Pipe Size
- PIPE O.D. RANGE: 12.68 - 13.39
- WORKING PRESSURE: 250 PSI
- RATED PRESSURE: 500 PSI
- TORQUE: 200 FT-LBS
- MATERIALS:
- END RINGS: Ductile Iron Casting ASTM A536 Grade 60-40-18
- CENTER RING: Ductile Cast Iron Casting ASTM A536 Grade 65-45-12 with Handle
- GASKETS: EPDM and NBR Available, Both are Compounded for Water and Sewage. Meets International Standards for Contact with Drinking Water
- GRIP CHAIN: Gripping Teeth: Size 4.0"-12" AISI 420 2B or AISI 440C
- BRIDGE: AISI 304 Stainless Steel
- SPHERICAL SPACERS: AISI 304 Stainless Steel
- COATING: 100% Fusion Bonded Epoxy for Enhanced Corrosion Protection. Nominal Thickness 14 MIL.
- NUTS,BOLTS AND WASHERS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax Grip High Pressure Coupling Product Resources
Download HYMAX Grip Family Brochure
