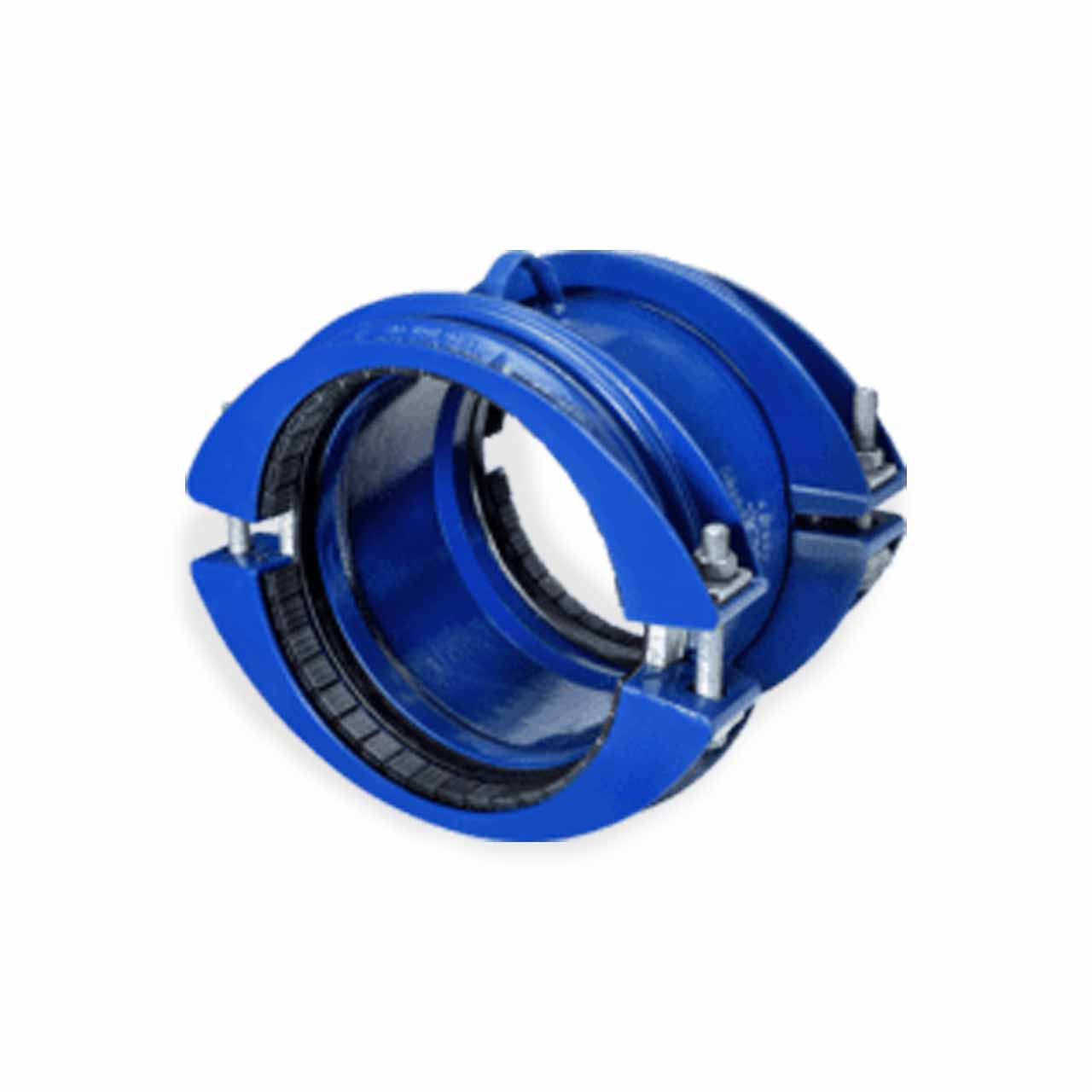

Hymax Grip 890-56-16438-17 ND 16" EPDM Large Diameter Coupling Restraint 17.25 - 17.88 O.D.
Hymax Grip 890-56-16438-17 ND 16" EPDM Large Diameter Coupling Restraint 17.25 - 17.88 O.D.
SKU : HMX890-56-16438-17
In Stock Quantity:0
:
Brand
:
Regular price
$4,531.06 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
HYMAX GRIP 14" and 16" is the first restraint product of its size with four top-facing bolts, and a stab-fit, one-piece design.
Compared to similar products with multiple parts and as many as 12 bolts to tighten, the HYMAX Grip 14/16" makes repairs safer and faster with less time spent in the ditch.
The four top-facing bolts eliminate under digging for space to tighten bolts. The stab-fit, one-piece design allows for easier and faster installation and eliminates the possibility of losing nuts in the mud.
- The Wide-Range HYMAX GRIP 14"/16" Restrains most Mental and Plastic Pipes, Including HDPE and Replaces the Need to use Dedicated Products to Reduce Inventory Costs and Save Shelf Space.
- PRECAUTIONS FOR HDPE PIPE: Note that the Use of Pipe Stiffeners is Required on HDPE Pipe.
- The Patented GRIP Chain Offers Circular Restraint Around the Pipe. It Holds Pipes Tightly in Place During Installation, Allowing Full Control over the Gap Between Pipes
As the Pipe Applies Axial Pressure, the GRIP Chain Increasingly Tightens over the Pipe, Preventing Pullout.
- The HYMAX GRIP Allows Dynamic Deflection of the Pipe for up to Four Degrees Per Side, Reducing Future Pipe Cracks and Breaks.
Hymax Grip Large Diameter Coupling Features
- The First Restraint Product of its Size with Only Four Top-Facing Bolts and a Stab-Fit, One Piece Design for Faster and Safer Installation
- Exerts Gripping Power Equal to 70 Tons on Connecting Pipes
- Restrains Both Plastic and Metal Pipes, Including HDPE, and Replaces the Need to use Dedicated Products
- Patented Grip Chain Offers Circular Restraint Around the Pipe
- Patented Radial Closing Mechanism Holds Pipes Tightly in Place During Installation
- Allows Dynamic Deflection of the Pipe for up to 4° Per Side, Reducing Future Pipe Cracks and Breaks
Specifications
Specifications
Hymax Grip Large Diameter Coupling Specifications
- Meets or Exceeds Standards AWWA C-219, NSF 61, NSF 372
- SIZE: 16" Nominal Diameter Pipe Size
- PIPE O.D. RANGE: 17.25 - 17.88
- WORKING PRESSURE: 250 PSI
- RATED PRESSURE: 500 PSI
- TORQUE: 350 FT-LBS
- MATERIALS:
- END RINGS: Ductile Iron Casting ASTM A536 Grade 65-45-12
- CENTER RING: Ductile Cast Iron Casting ASTM A536 Grade 65-45-12.
- GASKETS: EPDM Compounded for Water and Sewage. Meets International Standards for Contact with Drinking Water
- GRIP CHAIN: Gripping Teeth: AISI 440 C Sizes 4”-12” AISI 420 2B or AISI 440C
- BRIDGE: AISI 304 Stainless Steel
- SPHERICAL SPACERS: AISI 304 Stainless Steel
- COATING: 100% Fusion Bonded Epoxy for Enhanced Corrosion Protection. Nominal Thickness 14 MIL.
- NUTS,BOLTS AND WASHERS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax Grip Large Diameter Coupling Product Resources
Download HYMAX Grip Family Brochure
Download HYMAX Grip Large Diameter Specifications
Download HYMAX Grip Large Diameter Coupling Installation Instructions
