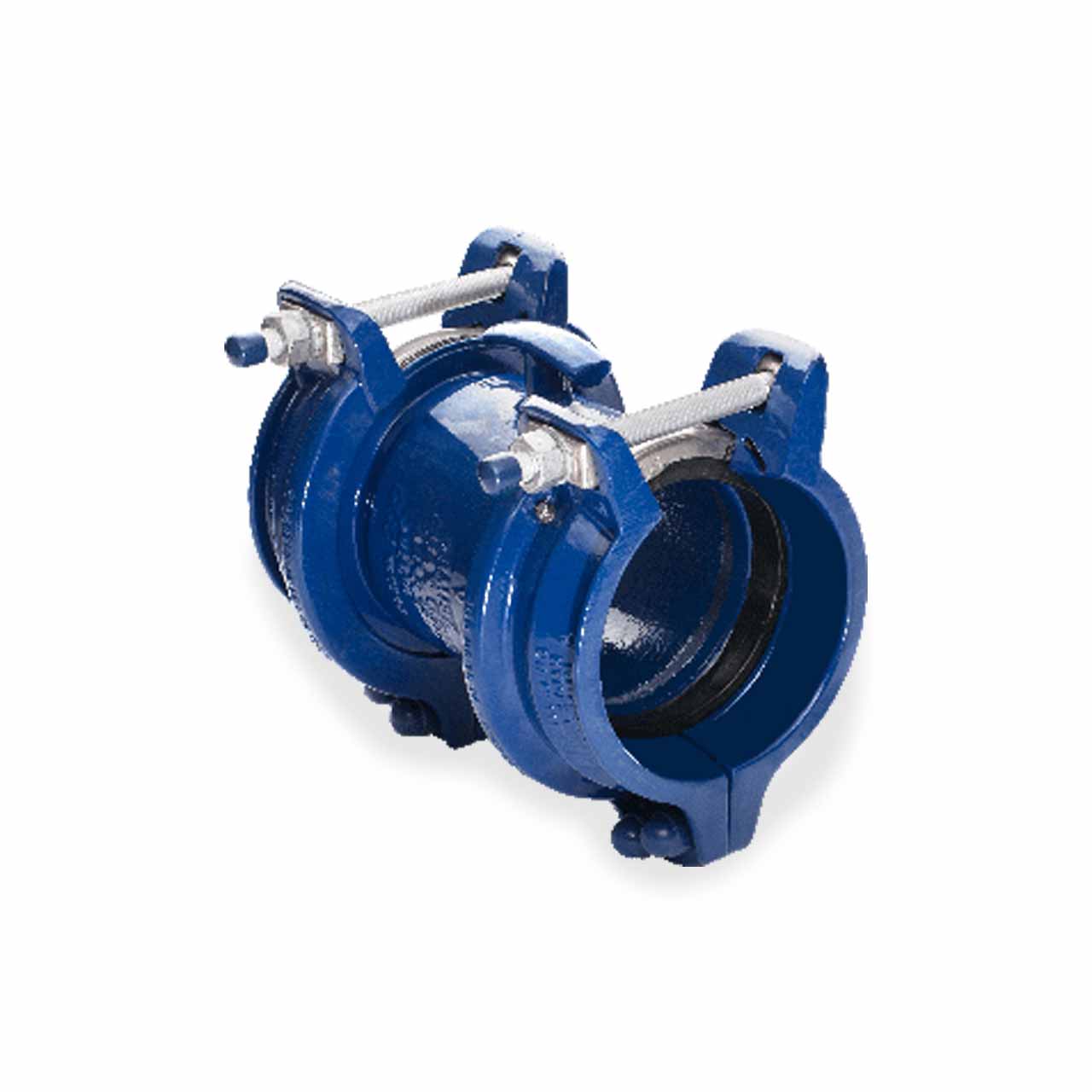

Hymax Grip 890-53-08216-23 ND 8.0" EPDM DI High Pressure Coupling 8.50-9.40 O.D.

Hymax Grip 890-53-08216-23 ND 8.0" EPDM DI High Pressure Coupling 8.50-9.40 O.D.

Discontinued or no longer available

SKU : HMX890-53-08216-23

In Stock Quantity:0

:
Brand : Hymax
Shipping calculated at checkout.

Description

Discontinued - Hymax

Newest addition to the HYMAX wide-range couplings family - HYMAX DI High Pressure. Available in sizes 1.5" to 12", the HYMAX DI High Pressure is extra durable and suitable for corrosive environment (hot soil). HYMAX DI is made of ductile iron and is designed to accommodate extra high water pressure.

HYMAX DI coupling is recognized for of all the advantages of the game-changing HYMAX family - 2-top facing bolts for faster and safer installation, high-reliability and ease-of-use as well as up to 4° dynamic deflection per side. It accommodates all metal and plastic pipes and is suitable for a wide variety of applications.

Time-tested and field-proven for over 20 years with millions of installation worldwide, or HYMAX coupling solutions support all of your field needs and makes it your safest choice coupling.

Hymax Grip DI High Pressure Coupling Features

  • 890-53-08216-23; 8.0" EPDM High Pressure Coupling Restraint
  • Durable Ductile Iron Body
  • Accomodates HIgher Water Pressure
  • Ready to Use, Stab-Fit Design
  • Only 2 Top-Facing Bolts for Faster and Safer Installation
  • Suitable for Both Metal and Plastic Pipes
  • Allows 4° Dynamic Deflection Per End, Reducing Future Damage

Specifications

Hymax Grip Coupling Specifications

  • Meets or Exceeds Standards AWWA C-219, NSF 61, NSF 372
  • SIZE: 8.0" Nominal Diameter Pipe Size
  • PIPE O.D. RANGE: 8.50 - 9.40
  • WORKING PRESSURE: 333 PSI
  • RATED PRESSURE: 500 PSI
  • TORQUE (FT-LB): 60
  • MATERIALS:
    • END RINGS: Ductile Iron Casting ASTM A536 Grade 60-40-18
    • CENTER RING: Ductile Cast Iron Casting ASTM A536 Grade 65-45-12
    • GASKETS: EPDM Compounded for Water and Sewage. Meets International Standards for Contact with Drinking Water
    • BRIDGE: AISI 304 Stainless Steel
    • SPHERICAL SPACERS: AISI 304 Stainless Steel
    • COATING: 100% Fusion Bonded Epoxy for Enhanced Corrosion Protection. Nominal Thickness 14 MIL.
    • NUTS,BOLTS AND WASHERS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Hymax Grip Coupling Product Resources


Download HYMAX Grip Family Brochure

Download HYMAX Grip DI High Pressure Coupling Specifications
