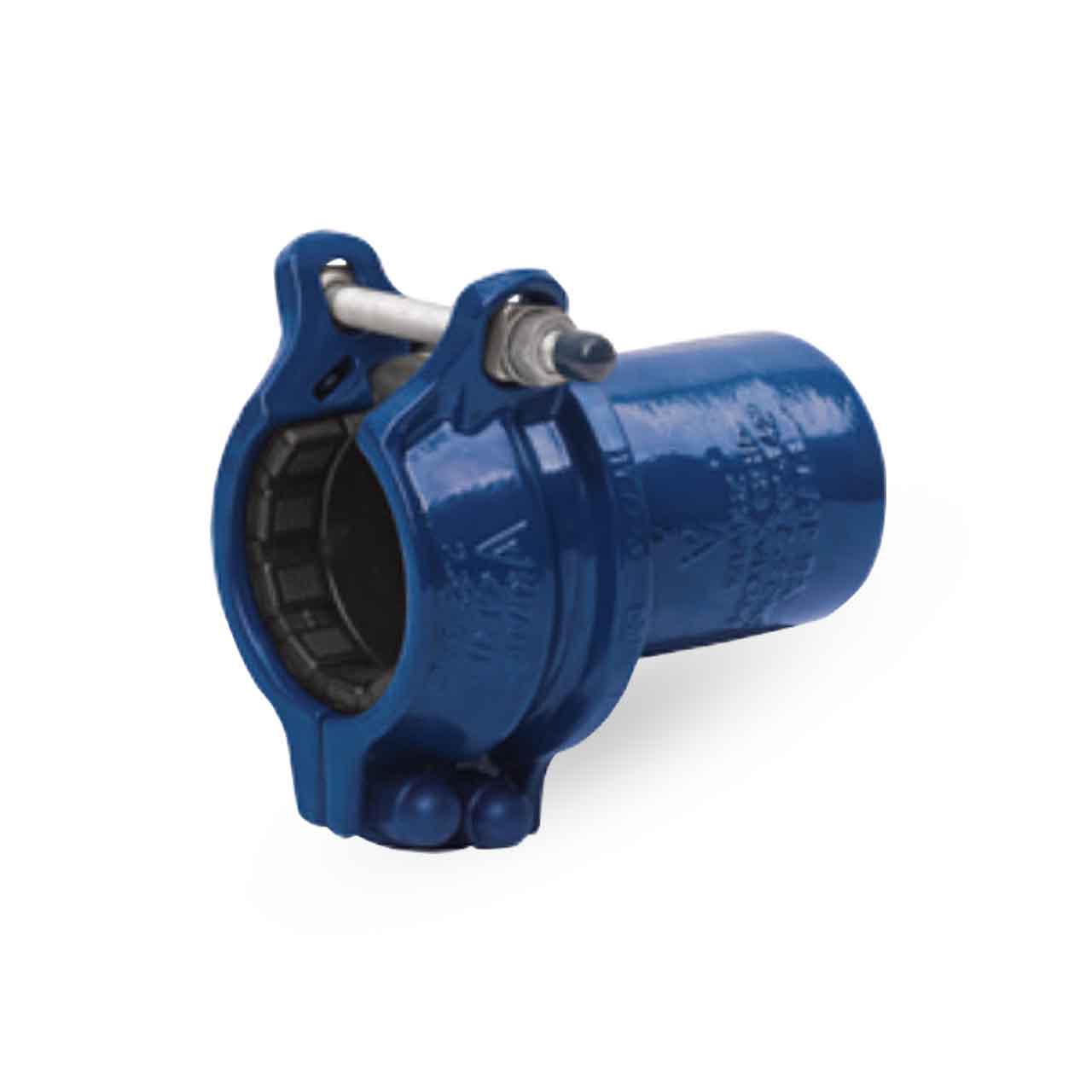

Hymax Grip 867-58-08216-16 ND 8.0" EPDM High Pressure End Cap 8.50-9.40 O.D.

Hymax Grip 867-58-08216-16 ND 8.0" EPDM High Pressure End Cap 8.50-9.40 O.D.

Usually ships within 1 week

SKU : HMX867-58-08216-16

In Stock Quantity:0

:
Brand : Hymax
$870.30 USD
Shipping calculated at checkout.

Description

Hymax restraint products combine the patented technology of the HYMAX coupling with a unique system, for capping and restraining pipe ends. Its EPDM gasket is compounded for water and sewage, and meets international standards with drinking water.

Designed using Hymax's innovation and patented technology, our restraining solutions work with all metal and plastic pipes and are suitable for a wide variety of applications.

Hymax Grip High Pressure End Cap Features

  • 867-58-08216-16; 8.0" EPDM High Pressure End Cap
  • Caps A Wide Range of Piping Types and Diameters
  • Unique Radial Gripping System
  • Universal Gripping Teeth Fit Metal and Plastic Pipes
  • Ready to use, Stab-Fit Design
  • Allows 4° Dynamic Deflection Per End, Reducing Future Damage
  • Durable Ductile Iron Body
  • Patented Hydraulically-Assisted Gasket with 2-Stage Sealing

Specifications

Hymax Grip High Pressure End Cap Specifications

  • Meets or Exceeds Standards AWWA C-219, NSF 61, NSF 372
  • SIZE: 8.0" Nominal Diameter Pipe Size
  • PIPE O.D. RANGE: 8.50 - 9.40
  • WORKING PRESSURE: 250 PSI
  • RATED PRESSURE: 500 PSI
  • TORQUE: 200 FT-LBS
  • MATERIALS:
    • END CAP BODY: Ductile Cast Iron Casting ASTM A536 Grade 65-45-12, Threaded Outlet 2.0" NPT Product Sizes 3.0" to 12" with Handle
    • END RINGS: Ductile Iron Castings ASTM A536 Grade 60-40-18
    • GASKETS: EPDM and NBR Available, Both are Compounded for Water and Sewage. Meets International Standards for Contact with Drinking Water
    • GRIP CHAIN: Gripping Teeth: Size 4.0"-12" AISI 420 2B or AISI 440C
    • BRIDGE: AISI 304 Stainless Steel
    • SPHERICAL SPACERS: AISI 304 Stainless Steel
    • COATING: 100% Fusion Bonded Epoxy for Enhanced Corrosion Protection. Nominal Thickness 14 MIL.
    • NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Hymax Grip High Pressure End Cap Product Resources


Download HYMAX Grip Family Brochure

Download HYMAX Grip End Cap Specifications

Download HYMAX Grip End Cap Installation Instructions
