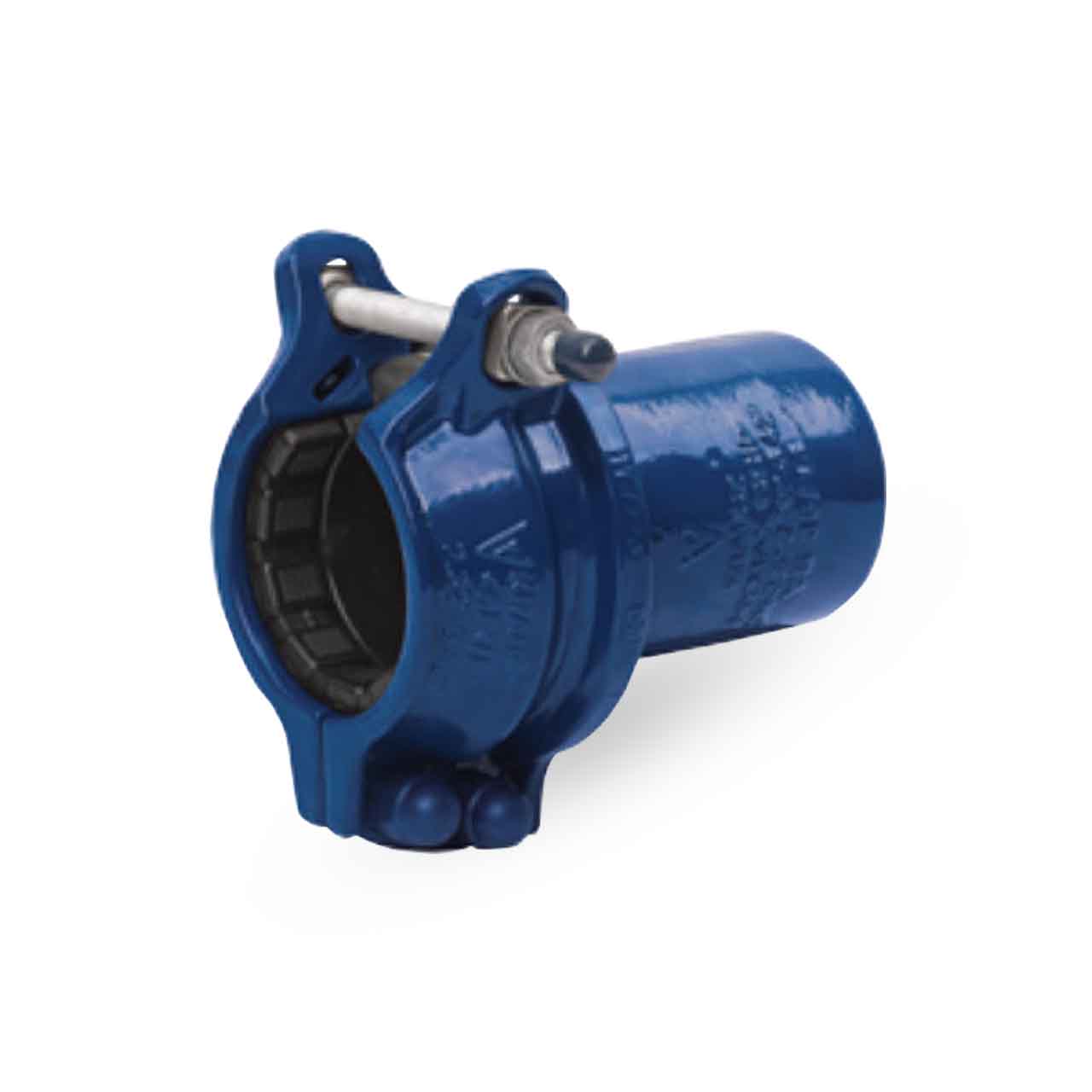

Hymax Grip 867-56-030080-16 ND 3.0" EPDM End Cap 3.15-4.17 O.D.
Hymax Grip 867-56-030080-16 ND 3.0" EPDM End Cap 3.15-4.17 O.D.
SKU : HMX867-56-030080-16
In Stock Quantity:0
:
Brand
:
Regular price
$420.40 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Hymax restraint products combine the patented technology of the HYMAX coupling with a unique system, for capping and restraining pipe ends. Its EPDM gasket is compounded for water and sewage, and meets international standards with drinking water.
Designed using Hymax's innovation and patented technology, our restraining solutions work with all metal and plastic pipes and are suitable for a wide variety of applications.
Hymax Grip End Cap Features
- 867-56-030080-16; 3.0" EPDM End Cap
- Caps A Wide Range of Piping Types and Diameters
- Unique Radial Gripping System
- Universal Gripping Teeth Fit Metal and Plastic Pipes
- Ready to use, Stab-Fit Design
- Allows 4° Dynamic Deflection Per End, Reducing Future Damage
- Durable Ductile Iron Body
- Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
Specifications
Specifications
Hymax Grip End Cap Specifications
- Meets or Exceeds Standards AWWA C-219, NSF 61, NSF 372
- SIZE: 3.0" Nominal Diameter Pipe Size
- PIPE O.D. RANGE: 3.15 - 4.17
- WORKING PRESSURE: 232 PSI
- RATED PRESSURE: 350 PSI
- TORQUE: 70 FT-LBS
- MATERIALS:
- END CAP BODY: Ductile Cast Iron Casting ASTM A536 Grade 65-45-12, Threaded Outlet 2.0" NPT Product Sizes 3.0" to 12" with Handle
- END RING: Cast Steel ASTM A216 WCB
- GASKETS: EPDM and NBR Available, Both are Compounded for Water and Sewage. Meets International Standards for Contact with Drinking Water
- GRIP CHAIN: Gripping Teeth: Size 1.5"-3.0" AISI 440 C
- BRIDGE: AISI 304 Stainless Steel
- SPHERICAL SPACERS: AISI 304 Stainless Steel
- COATING: 100% Fusion Bonded Epoxy for Enhanced Corrosion Protection. Nominal Thickness 14 MIL.
- NUTS,BOLTS AND WASHERS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax Grip End Cap Product Resources
Download HYMAX Grip Family Brochure
