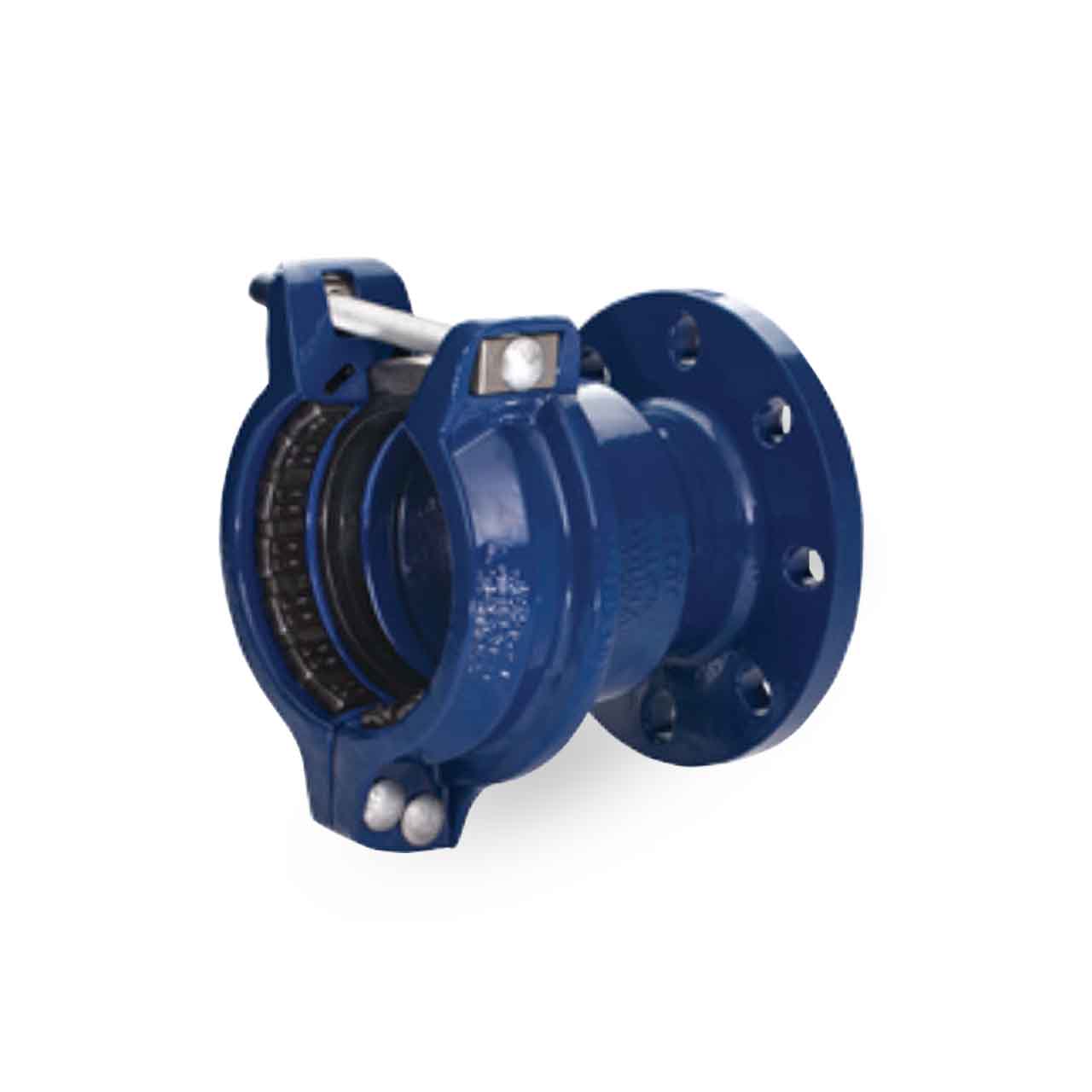

Hymax Grip 130-56-06165-16 ND 6.0" EPDM Flange Adapter
Hymax Grip 130-56-06165-16 ND 6.0" EPDM Flange Adapter
SKU : HMX130-56-06165-16
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Hymax
There are many situations that require couplings with additional restraining power. Krausz restraint products combine the patented technology of the HYMAX coupling with a unique restraint system, joining pipe ends while preventing any possible movement. Designed using Krausz's innovation and patented technology, our restraining solutions work with all metal and plastic pipes and are suitable for a wide variety of applications.
Hymax Grip Flange Adapter Features
- 130-56-06165-16; 6.0" EPDM Flange Adapter
- Joins and Restrains A Wide Range of Piping Types and Diameters
- Unique Radial Gripping System Prevents Pipe Motion
- Universal Gripping Teeth Fit Metal and Plastic Pipes
- Ready to use, Stab-Fit Design
- Allows 4° Dynamic Deflection Per End, Reducing Future Damage
- Durable Ductile Iron Body
- Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
Specifications
Specifications
Hymax Grip Flange Adapter Specifications
- Meets or Exceeds Standards AWWA C-219, NSF 61, NSF 372
- SIZE: 6.0" Nominal Diameter Pipe Size
- FLANGE SIZE: 6.0"
- PIPE O.D. RANGE: 6.50 - 7.20
- WORKING PRESSURE: 232 PSI
- RATED PRESSURE: 350 PSI
- TORQUE: 110 FT-LBS
- MATERIALS:
- FLANGE BODY: Ductile Cast Iron Casting ASTM A536 Grade 65-45-12, 3.0" to 12" Flange Compatible with AWWA Class D, ANSI Class 125
- END RING: Ductile Iron Casting ASTM A536 Grade 60-40-18
- GASKETS: EPDM and NBR Available, Both are Compounded for Water and Sewage. Meets International Standards for Contact with Drinking Water
- GRIP CHAIN: Gripping Teeth: Size 4.0" -12" AISI 420 2B or AISI 440C
- BRIDGE: AISI 304 Stainless Steel
- SPHERICAL SPACERS: AISI 304 Stainless Steel
- COATING: 100% Fusion Bonded Epoxy for Enhanced Corrosion Protection. Nominal Thickness 14 MIL.
- NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax Grip Flange Adapter Product Resources
Download HYMAX Grip Family Brochure
Download HYMAX Grip Flange Adapter Specifications
Download HYMAX Grip Flange Adapter Installation Instructions
