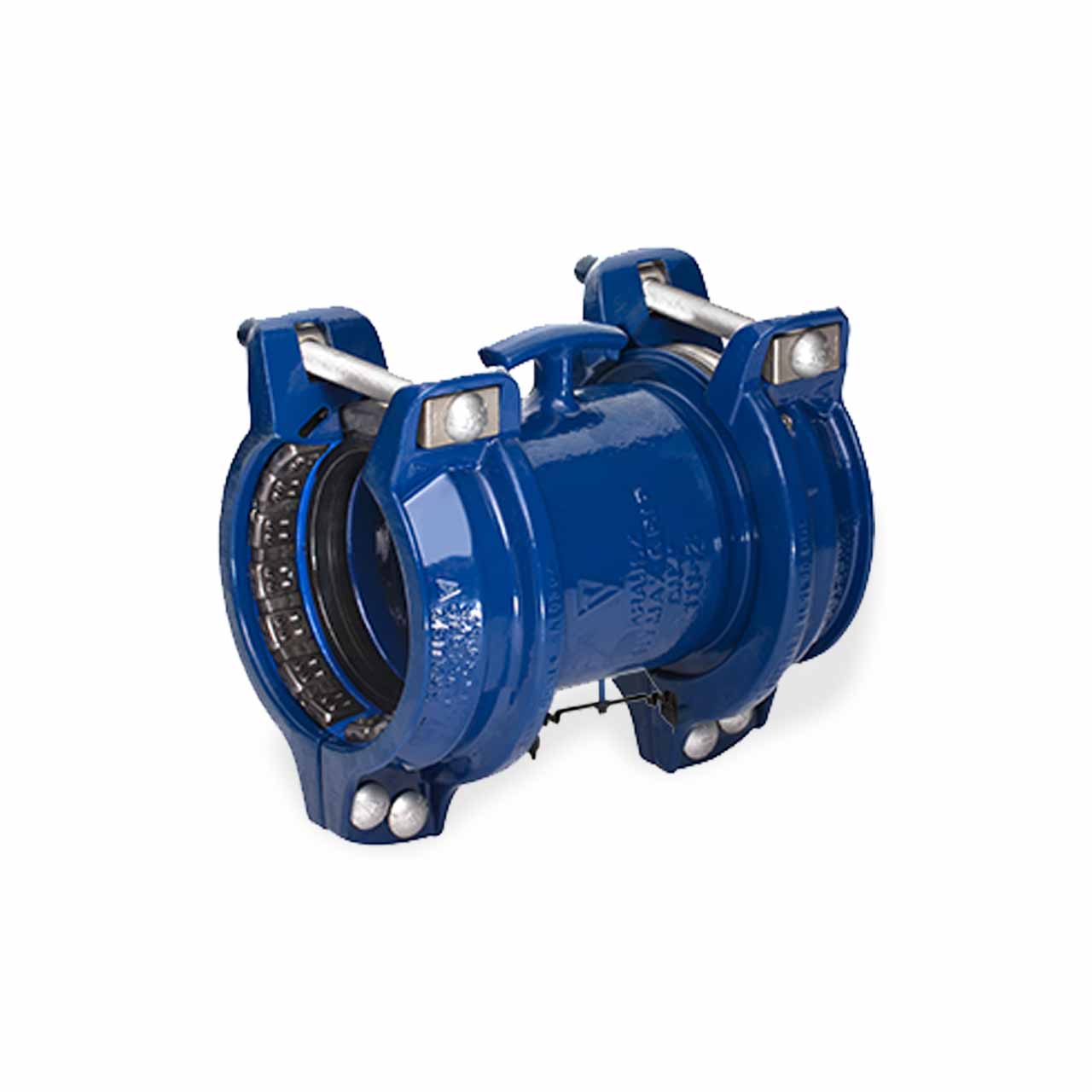

Hymax 889-56-015039-16 ND 1.5"/2.0" EPDM Grip Coupling w/ Cathodic Protection 1.54-2.64 O.D.
Hymax 889-56-015039-16 ND 1.5"/2.0" EPDM Grip Coupling w/ Cathodic Protection 1.54-2.64 O.D.
SKU : HMX889-56-015039-16
In Stock Quantity:0
:
Brand
:
Regular price
$620.40 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
There are many situations that require couplings with additional restraining power. Hymax restraint products combine the patented technology of the HYMAX coupling with a unique restraint system, joining pipe ends while preventing any possible movement.
HYMAX GRIP CATHODIC is a HYMAX GRIP restraint coupling with cathodic protection.
Designed using Hymax's innovation and patented technology, our restraining solutions work with all metal and plastic pipes and are suitable for a wide variety of applications.
Hymax Grip Cathodic Coupling Features
- 890-56-015039-16; 1.5" / 2.0" EPDM Coupling Restraint
- Hymax Grip Restraint Coupling with Cathodic Protection
- Joins and Restrains a Wide Range of Piping Types and Diameters
- Unique Radial Gripping System Prevents Pipe Motion
- Universal Gripping Teeth Fit Metal Pipes
- Ready to use, Stab-Fit Design
- Substantially Reduces Inventory
- Allows 4° Dynamic Deflection Per End, Reducing Future Damage
- Durable Ductile Iron Body
- Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
Specifications
Specifications
Hymax Grip Cathodic Coupling Specifications
- Meets or Exceeds Standards AWWA C-219, NSF 61, NSF 372
- SIZE: 1.5"/2.0" Nominal Diameter Pipe Size
- PIPE O.D. RANGE: 1.54 - 2.64
- WORKING PRESSURE: 232 PSI
- RATED PRESSURE: 350 PSI
- TORQUE: 70 FT-LBS
- MATERIALS:
- END RINGS: Cast Steel ASTM A216 WCB
- CENTER RING: Ductile Cast Iron Casting ASTM A536 Grade 65-45-12
- GASKETS: EPDM and NBR Available, Both are Compounded for Water and Sewage. Meets International Standards for Contact with Drinking Water
- GRIP CHAIN: Gripping Teeth: Size 1.5"-3.0" AISI 440 C
- BRIDGE: AISI 304 Stainless Steel
- SPHERICAL SPACERS: AISI 304 Stainless Steel
- COATING: 100% Fusion Bonded Epoxy for Enhanced Corrosion Protection. Nominal Thickness 14 MIL.
- NUTS,BOLTS AND WASHERS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax Grip Cathodic Coupling Product Resources
Download HYMAX Grip Family Brochure
Download HYMAX Grip Cathodic Coupling Specifications
Download HYMAX Grip Cathodic Coupling Installation Instructions
