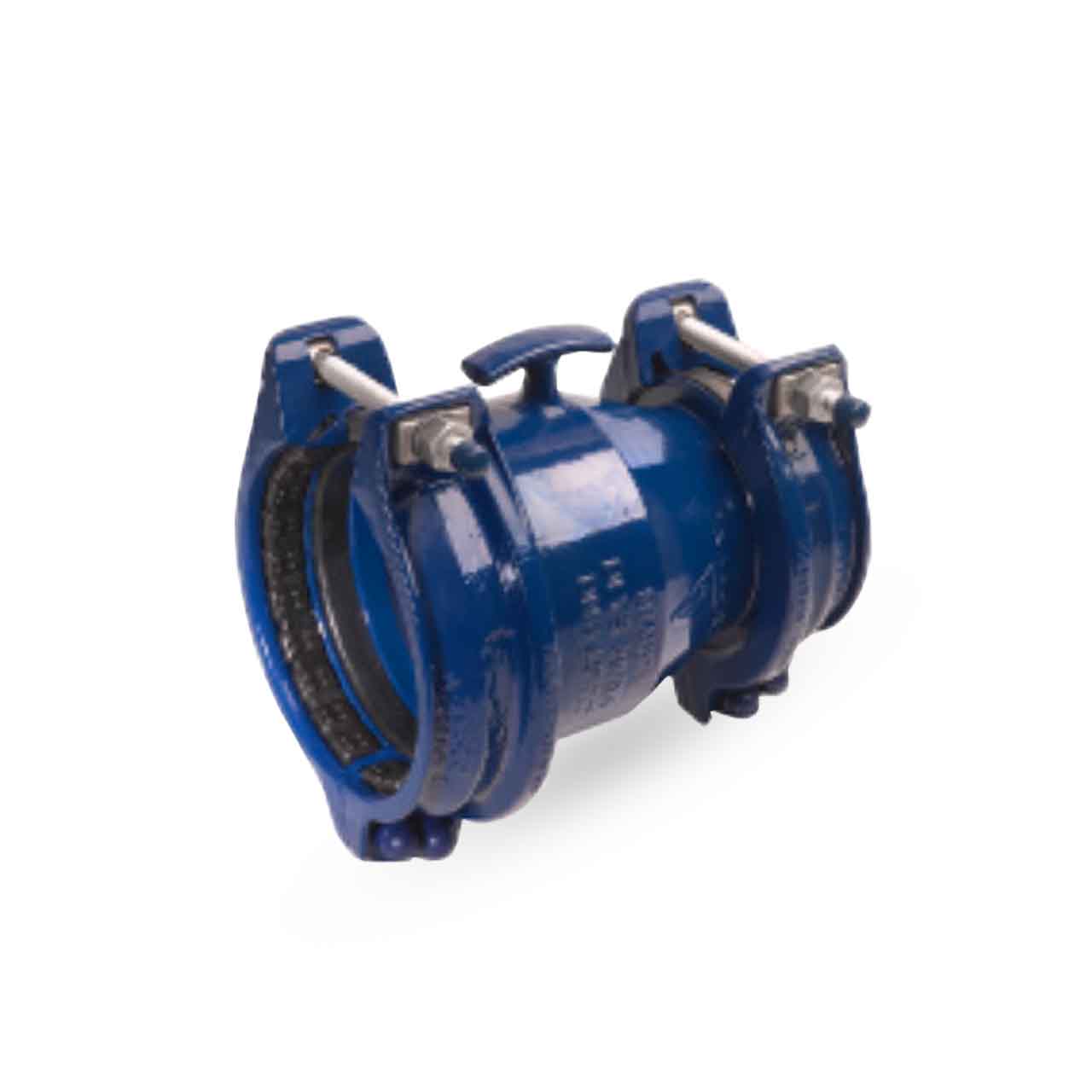

Hymax 863580165021616 ND 6.0"x 8.0" EPDM High Pressure Grip Reducer
Hymax 863580165021616 ND 6.0"x 8.0" EPDM High Pressure Grip Reducer
SKU : HMX863580165021616
In Stock Quantity:0
:
Brand
:
Regular price
$1,703.09 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
HYMAX Grip Reducer restrains pipes of differing diameters, with unmatched performance. Its patented pipe grip system is based on a universal gripping system designed to restrain metal and plastic pipes. The unique patented radial closing mechanism holds pipes tightly in place during installation, allowing full control over the gap between pipes. A patented GRIP chain offers circular restraint around the pipe, unlike typical wedge-style restraints that point-load the pipe.
Hymax Grip High Pressure Reducer Features
- Joins and Restrains A Wide Range of Piping Types and Diameters
- Unique Radial Gripping System Prevents Pipe Motion
- Universal Gripping Teeth Fit Metal and Plastic Pipes
- Ready to use, Stab-Fit Design
- Allows 4° Dynamic Deflection Per End, Reducing Future Damage
- Durable Ductile Iron Body
- Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
Specifications
Specifications
Hymax Grip High Pressure Reducer Specifications
- Meets or Exceeds Standards AWWA C-219, NSF 61, NSF 372
- SIZE: 6.0" x 8.0" Nominal Diameter Pipe Size
- OVERALL RANGE OUTLET 1: 6.50 - 7.20
- OVERALL RANGE OUTLET 2: 8.50 - 9.40
- WORKING PRESSURE: 250 PSI
- RATED PRESSURE: 500 PSI
- TORQUE: Side 1: 110 FT-LBS; Side 2: 200 FT-LBS
- MATERIALS:
- END RINGS: Ductile Iron Casting ASTM A536 Grade 60-40-18
- CENTER RING: Ductile Iron Casting ASTM A536 Grade 65-45-12
- GASKETS: EPDM and NBR Available, Meet International Standards for Contact with Drinking Water
- GRIP CHAIN: Gripping Teeth: Size 4.0 " - 12" AISI 420 or AISI 440C
- BRIDGE: AISI 304 Stainless Steel
- SPHERICAL SPACERS: AISI 304 Stainless Steel
- COATING: 100% Fusion Bonded Epoxy for Enhanced Corrosion Protection. Nominal Thickness 14 MIL.
- NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax Grip High Pressure Reducer Product Resources
Download HYMAX Grip Family Brochure
