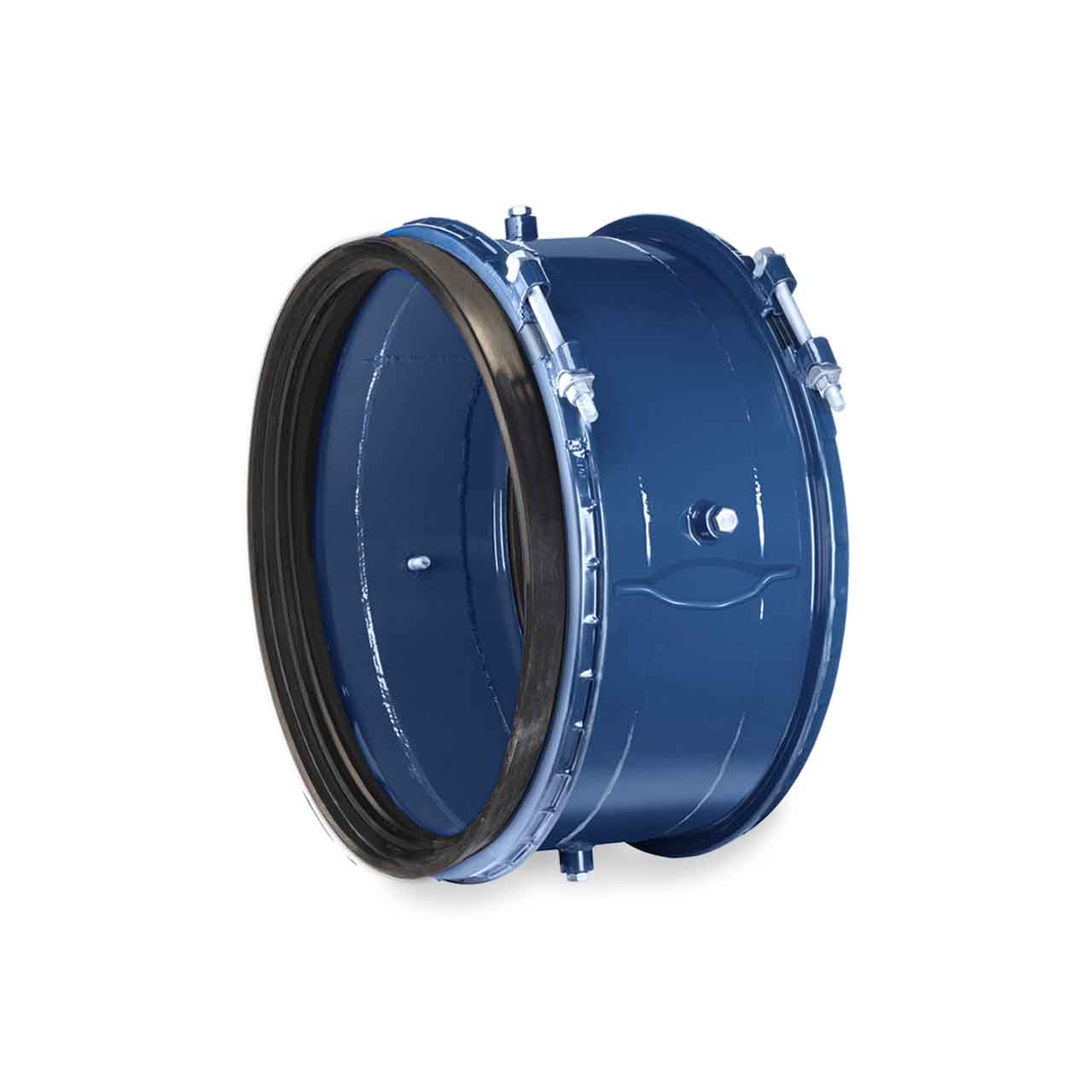

Hymax 862-56-0488-16P ND 18" EPDM Coupling Large Diameter Long Body 19.20-21.30 O.D.
Hymax 862-56-0488-16P ND 18" EPDM Coupling Large Diameter Long Body 19.20-21.30 O.D.
SKU : HMX862-56-0488-16P
In Stock Quantity:0
:
Brand
:
Regular price
$5,688.65 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
The HYMAX Large Diameter (HLD 2) Coupling Long Body, is the next generation of wide-range couplings. HLD 2 feature a complete line of products in sizes 14”-60” with only 4 top-facing bolts and flip-gasket for faster, safer and more efficient installations.
Hymax Coupling Large Diameter Long Body Features
- 862-56-0488-16P; 18" EPDM Long Body Coupling
- Game-Changing Wide-Range Coupling, Proven in Over 1M Installations in the US
- Suitable for All Pipes - Ductile Iron, Cast Iron, Steel, Copper, PE, PVC, AC, GRP
- Patented No-Tear Flip Gasket for Easy Installation (in sizes 14"-24")
- Long Body for Extra Size Flexibility
- Lightweight Construction Enables Fast and Easy Installation
- Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage
- One Product can Connect Pipes of Two Different Materials
Specifications
Specifications
Hymax Coupling Large Diameter Long Body Specifications
- Meets or Exceeds Standards AWWA C-219, NSF 61 and NSF 372
- SIZE: 18" Nominal Pipe Size
- PIPE O.D. RANGE: 19.20 - 21.30
- WORKING PRESSURE: 232 PSI
- RATED PRESSURE: 350 PSI
- TORQUE: 150 FT-LBS
- MATERIALS:
- END RINGS: ASTM A283/A283M Grade C Steel
- CENTER RING: ASTM A53 Grade A Steel
- GASKET: EPDM Compounded for Water and Sewage, Meets International Standards for Contact with Drinking Water
- BRIDGE: AISI 304 Stainless Steel
- SPHERICAL SPACERS: AISI 304 Stainless Steel
- COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14MIL
- NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax Coupling Large Diameter Long Body Product Resources
Download HYMAX Family Brochure
