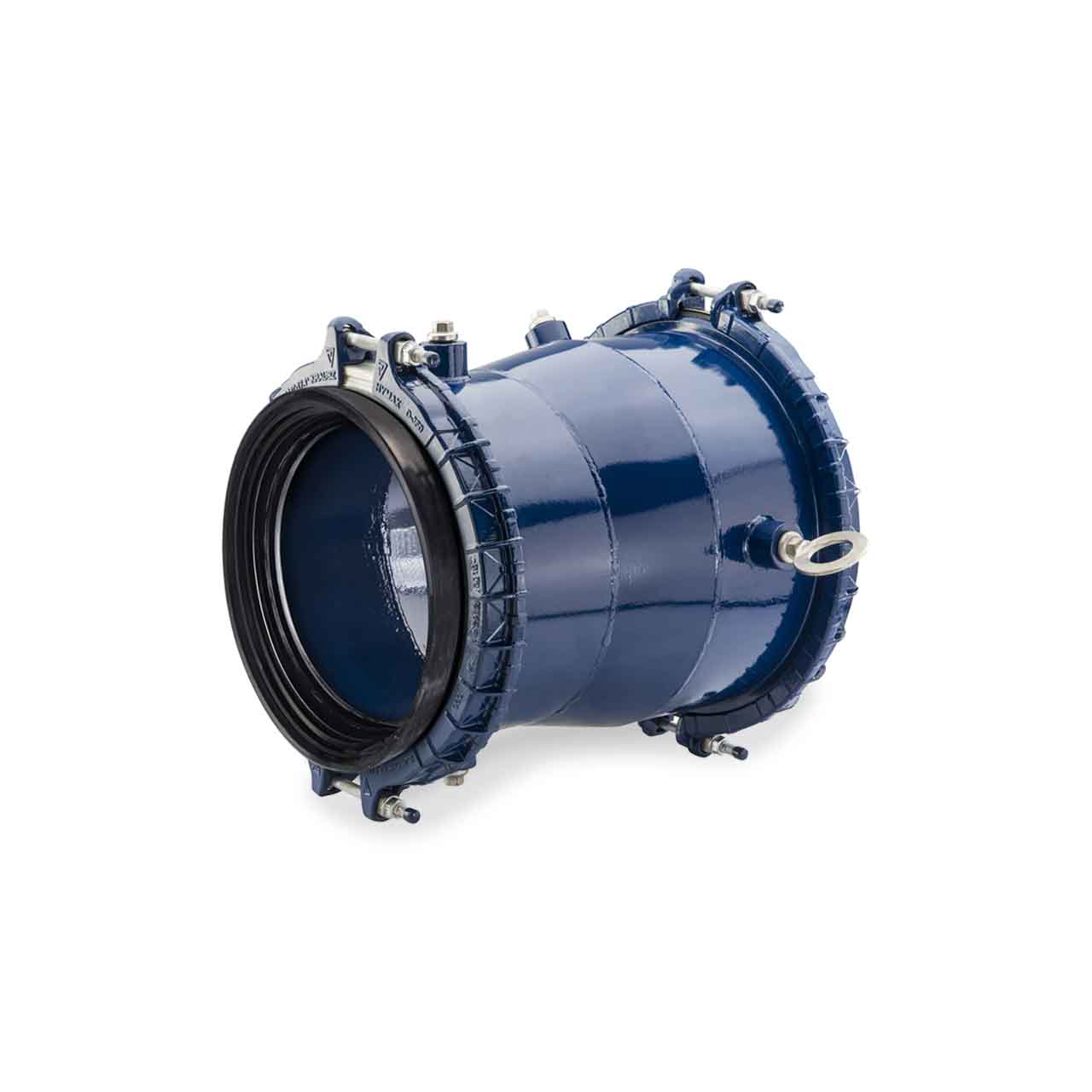

Hymax 861560540060616 20" x 24" EPDM Large Diameter Reducer
Hymax 861560540060616 20" x 24" EPDM Large Diameter Reducer
SKU : HMX861560540060616
In Stock Quantity:0
:
Brand
:
Regular price
$8,490.07 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
The HYMAX Large Diameter (HLD 2) Reducer is the next generation of wide-range couplings. HLD2 feature a complete line of products in sizes 14”-60” with only 4 top-facing bolts and flip-gasket for faster, safer and more efficient installations.
The HLD2 Flip Gasket offers a new level of innovation that makes installers’ jobs easier and safer:
The Large Diameter’s patented flip gasket can be easily flipped in or out to accommodate different pipe ODs between 14 to 60 inches (14″-24″ standard and 26″-60″ MTO with one-layer gasket).
Hymax Large Diameter Reducer Features
- 861560540060616; 20" X 24" EPDM Large Diameter Reducer
- Using the Game-Changing Hymax Technology, Proven in Over 1M Installation in the US
- Suitable for all Types of Pipes - Ductile Iron, Cast Iron, Steel, Copper, PE, PVC, AC, GRP
- Patented No-Tear Flip Gasket for Easy Installation (in sizes 14"-24")
- Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
- Lightweight Construction Enables Fast and Easy Installation
- Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage
Specifications
Specifications
Hymax Large Diameter Reducer Specifications
- Meets or Exceeds Standards AWWA C-219, NSF 61 and NSF 372
- PIPE SIZE: 20" x 24" Nominal Diameter Pipe Size
- OVERALL RANGE OUTLET 1: 21.25 - 23.35
- OVERALL RANGE OUTLET 2: 23.85 - 25.95
- WORKING PRESSURE: 232 PSI
- RATED PRESSURE: 350 PSI
- TORQUE SIDE 1: 150 FT-LBS
- TORQUE SIDE 2: 150 FT-LBS
- MATERIALS:
- END RINGS: ASTM A283/A283M Grade C Steel
- CENTER RING: ASTM A283/A283M Grade C Steel
- GASKETS: EPDM and NBR Available, Both are Compounded for Water and Sewage. Meets International Standards for Contact with Drinking Water
- BRIDGE: AISI 304 Stainless Steel
- SPHERICAL SPACERS: AISI 304 Stainless Steel
- COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14MIL
- NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax Large Diameter Reducer Product Resources
Download HYMAX Large Diameter Coupling Brochure
