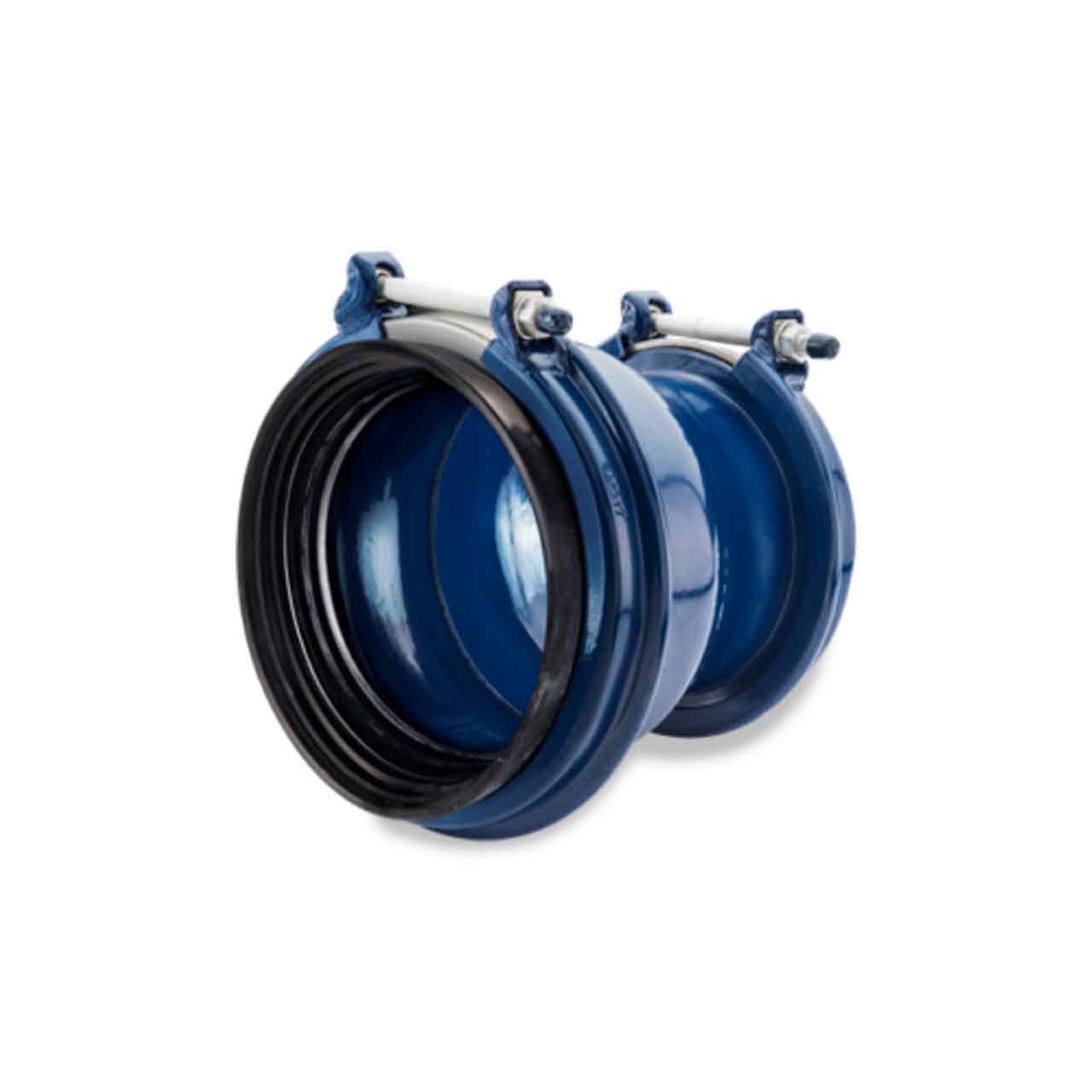

Hymax 861560334037816 12" x 14" EPDM Reducer
Hymax 861560334037816 12" x 14" EPDM Reducer
SKU : HMX861560334037816
In Stock Quantity:0
:
Brand
:
Regular price
$4,249.42 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Wide-Range HYMAX Reducer joins different nominal sizes and materials. Each side has a tolerance of up to 2.1" in joining pipes made of a variety of materials.
Hymax Reducer Features
- 861560334037816; 12" X 14" EPDM Reducer
- Suitable for all Types of Pipes - Ductile Iron, Cast Iron, Steel, Copper, PE, PVC, AC, GRP
- Joins Pipes of Different Sizes
- Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
- Lightweight Construction Enables Fast and Easy Installation
- Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage
- One Product can Connect Pipes of Two Different Materials
Specifications
Specifications
Hymax Reducer Specifications
- Meets or Exceeds Standards AWWA C-219, NSF 61 and NSF 372
- PIPE SIZE: 12" x 14" Nominal Diameter Pipe Size
- OVERALL RANGE OUTLET 1: 13.15 - 14.41
- OVERALL RANGE OUTLET 2: 15.00 - 17.10
- WORKING PRESSURE: 260 PSI
- RATED PRESSURE: 390 PSI
- TORQUE SIDE 1: 65 FT-LBS
- TORQUE SIDE 2: 150 FT-LBS
- MATERIALS:
- END RINGS: ASTM A283/A283M Grade C Steel
- CENTER RING: ASTM A53 Grade A Steel
- GASKETS: EPDM and NBR Available, Both are Compounded for Water and Sewage. Meets International Standards for Contact with Drinking Water
- BRIDGE: AISI 304 Stainless Steel
- SPHERICAL SPACERS: AISI 304 Stainless Steel
- COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14MIL
- NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
