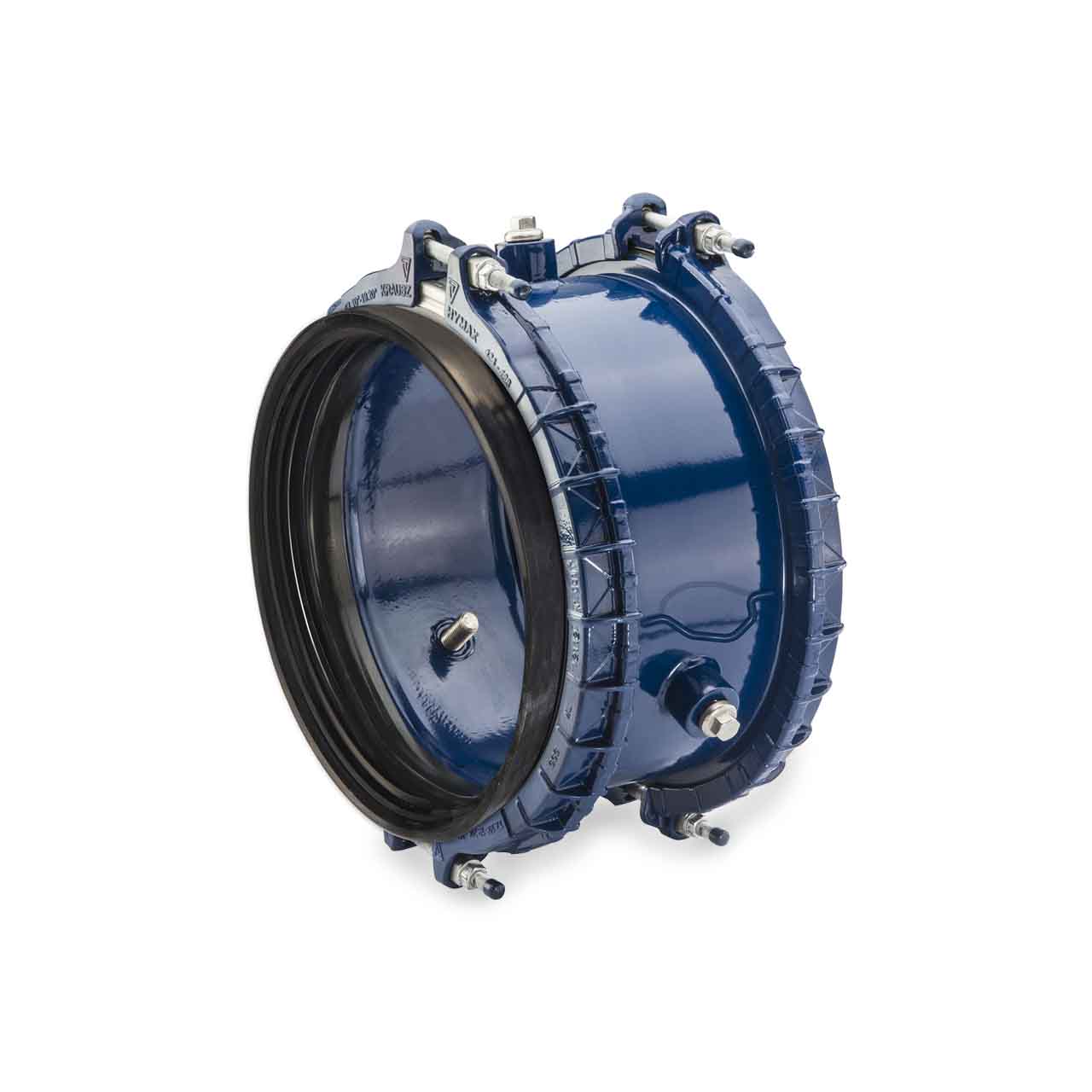

Hymax 860-56-0930-12P ND 30" EPDM Coupling 36.60-38.70 O.D.
Hymax 860-56-0930-12P ND 30" EPDM Coupling 36.60-38.70 O.D.
SKU : HMX860-56-0930-12P
In Stock Quantity:0
:
Brand
:
Regular price
$8,338.70 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
HYMAX® HLD COUPLING 14″-60″ offers innovative engineering and design, enabling fast stab-on installation, improving workers’ safety and eliminating under-digging and losing bolts in the mud.
Featuring:
- Only 4 Bolts!
- Extra Wide Range of 2.1"
- Up to 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage
- Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
- Suitable for Most Types of Pipes - Ductile Iron, Cast Iron, Steel, PE, PVC, AC
- Maximum Working Temperature of 125°F
Its unique advantages, along with its outstanding flexibility and extreme durability, make the HYMAX® HLD the cost-effective, high-performance choice for a wide range of field applications. HYMAX game-changing wide-range couplings have been proven in millions of installations in North America.
Hymax Large Diameter Coupling Features
- 860-56-0930-12P; 36" EPDM Coupling
- Game-Changing Wide-Range Coupling, Proven in Over 1M Installations in the US
- Suitable for all Types of Pipes - Ductile Iron, Cast Iron, Steel, Copper, PE, PVC, AC, GRP
- Lightweight Construction Enables Fast and Easy Installation
- Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage
- One Product can Connect Pipes of Two Different Materials
Specifications
Specifications
Hymax Large Diameter Coupling Specifications
- Meets or Exceeds Standards AWWA C-219, NSF 61 and NSF 372
- SIZE: 30" Nominal Diameter Pipe Size
- PIPE O.D. RANGE: 36.60 - 38.70
- WORKING PRESSURE: 232 PSI
- RATED PRESSURE: 350 PSI
- TORQUE: 150 FT-LBS
- MATERIALS:
- END RINGS: ASTM A283/A283M Grade C Steel
- CENTER RING: ASTM A283/A283M Grade C Steel
- GASKETS: EPDM and NBR Available, Both are Compounded for Water and Sewage. Meets International Standards for Contact with Drinking Water
- BRIDGE: AISI 304 Stainless Steel
- SPHERICAL SPACERS: AISI 304 Stainless Steel
- COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14 MIL
- NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax Large Diameter Coupling Product Resources
Download HYMAX Large Diameter Coupling Brochure
Download HYMAX Large Diameter Coupling Specifications
Download HYMAX Large Diameter Coupling Installation Instructions
