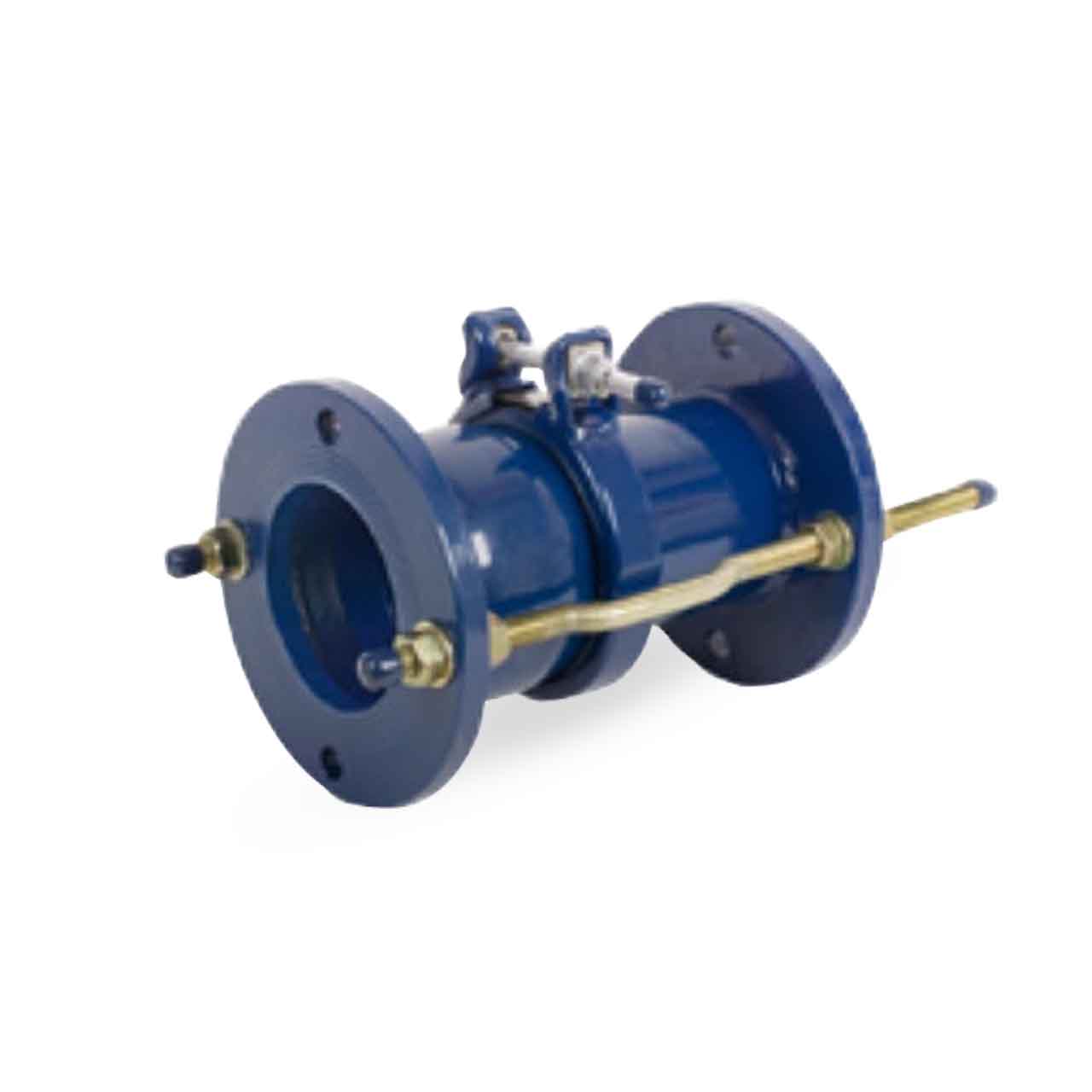

Hymax 811-56-0018-12 ND 18" EPDM Dismantling Joint
Hymax 811-56-0018-12 ND 18" EPDM Dismantling Joint
SKU : HMX811-56-0018-12
In Stock Quantity:0
:
Brand
:
Regular price
$4,127.94 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Hymax Dismantling Joint (2.0" to 24" pipe nominal size) is a user-friendly tool that connects to valves, pumps, meter and pipe assemblies and adjusts to various lengths per nominal size. The Dismantling Joint's patented hydraulically-assisted gasket features two-stage sealing and offers fast and easy maintenance with up to 60% fewer bolts. The product meets or exceeds standards NSF-61 and NSF-372.
Hymax Dismantling Joint Features
- 811-56-0018-12; 18" EPDM Dismantling Joint
- The Most User-Friendly Dismantling Device Available
- Connects Valves, Pumps, Meters and Pipe Assemblies
- Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
- Adjusts to Various Lengths Per Nominal Size
- Fast, Easy Maintenance - Up to 60% Fewer Bolts
- Easy Opening and Closing Via Radial Closure
Specifications
Specifications
Hymax Dismantling Joint Specifications
- Meets or Exceeds Standards AWWA C219. NSF 61 and NSF 372
- SIZE: 18" Nominal Diameter Pipe Size
- WORKING PRESSURE: 175 PSI
- RATED PRESSURE: 262 PSI
- TORQUE: 80 FT-LBS
- MATERIALS:
- END RINGS: ASTM A283 / A283M Grade C Steel
- CENTER RING: ASTM A283 / A83M Grade C Steel
- GASKETS: EPDM Compounded for Water and Sewage, Meets International Standards for Contact with Drinking Water
- BRIDGE: AISI 304 Stainless Steel
- FLANGE: Meets AWWA Class D
- COATING: 100% Fusion Bonded Epoxy for Enhanced Corrosion Protection. Average Thickness 14 MIL.
- NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Hymax Dismantling Joint Product Resources
Download HYJOINT Coupling Family Brochure
