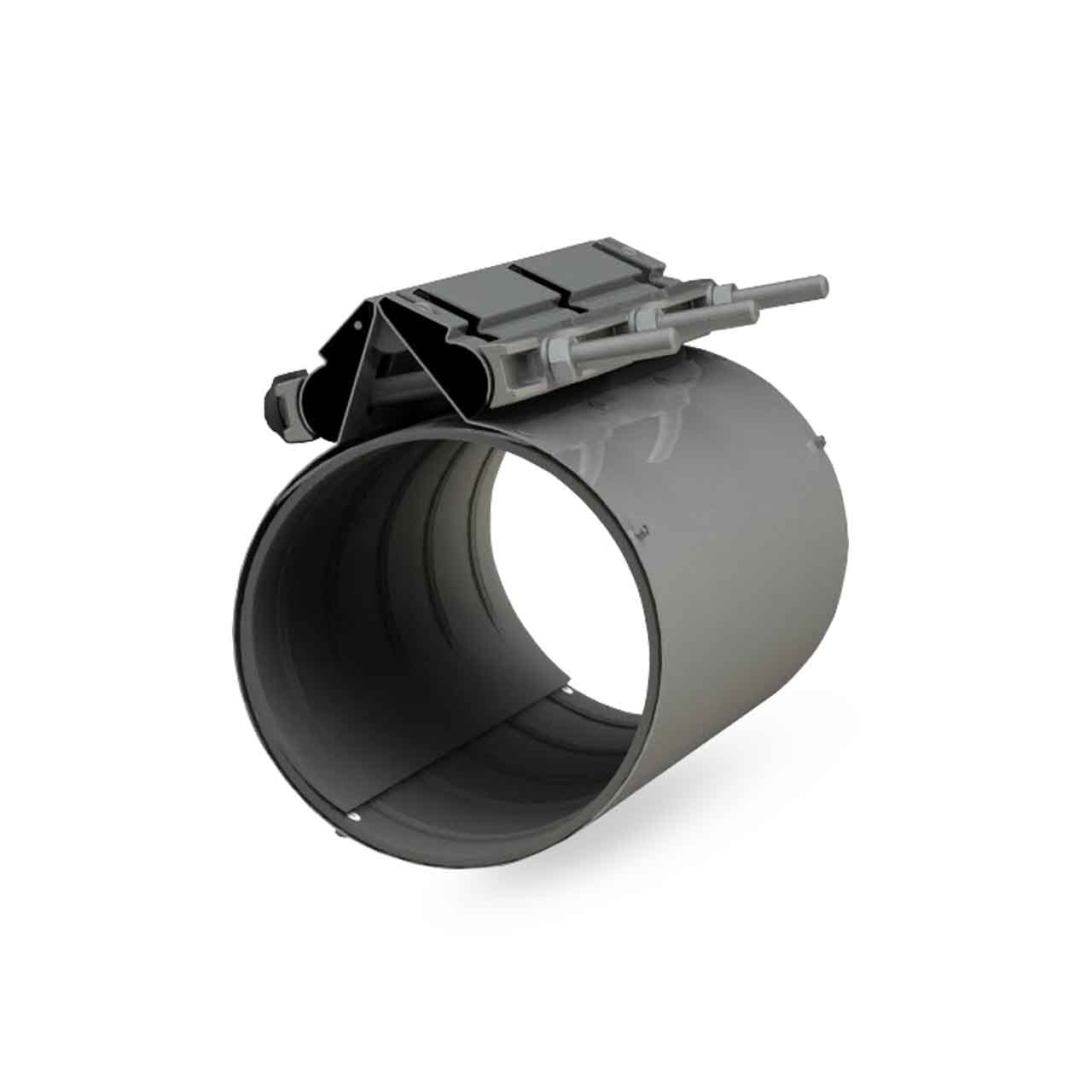

Hymax 274-56-0139-10W ND 6.0" EPDM 15" Stainless Steel Clamp Repair Solution
Hymax 274-56-0139-10W ND 6.0" EPDM 15" Stainless Steel Clamp Repair Solution
SKU : HMX274-56-0139-10W
In Stock Quantity:0
:
Brand
:
Regular price
$333.97 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
The HYMAX Clamp wide-range stainless steel clamps are excellent for repairing holes as well as longitudinal cracks in water pipes. Their special design substantially reduces inventory and on-vehicle product stock since one HYMAX Clamp can be used to replace up to three traditional competitors' clamps.
HYMAX Clamp is extremely efficient and cost effective, reliable and easy to install. With only two bolts to tighten (in lengths up to 12"), HYMAX Clamp is one of a kind. The enforced bolt holders (registered patent) enable easy installation by one person working alone.
Hymax Clamp Repair Solution Features
- 274-56-0139-10W; 6.0" EPDM 15" Stainless Steel
- Easy to Install-Starting with Only 2 Bolts
- Stainless Steel, Lightweight Monoblock Design
- Wide-Range, Replaces up to 3 Standard Products
- Strong and Anti-Corrosion Resistant
- Suitable for All Pipe Types
- Durable EPDM Gasket
Specifications
Specifications
Hymax Clamp Repair Solution Specifications
- Meets or Exceeds Standards AWWA C230, NSF-61 and NSF-372
- SIZE: 6.0" Nominal Diameter Pipe Size
- LENGTH: 15"
- PIPE O.D. RANGE: 5.50 - 6.30
- WORKING PRESSURE: 150 PSI
- RATED PRESSURE: 225 PSI
- TORQUE: 80 FT-LBS
- MATERIALS:
- BODY: AISI 304 Stainless Steel
- PRESSURE-ASSISTED GASKET: EPDMA Compounded for Water and Sewage. Meets NSF-61 and NSF-372 for Contact with Drinking Water.
- GASKET BRIDGE: AISI 304 Stainless Steel
- COMPRESSION BEAM: AISI 304/304L Casting (ASTM-A351-CF8)
- ADJUSTING PIN: AISI 304/304L Casting (ASTM-A351-CF8)
- LUGS: Polycarbonate
- NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Zinc-Based Anti-Galling Coating.
