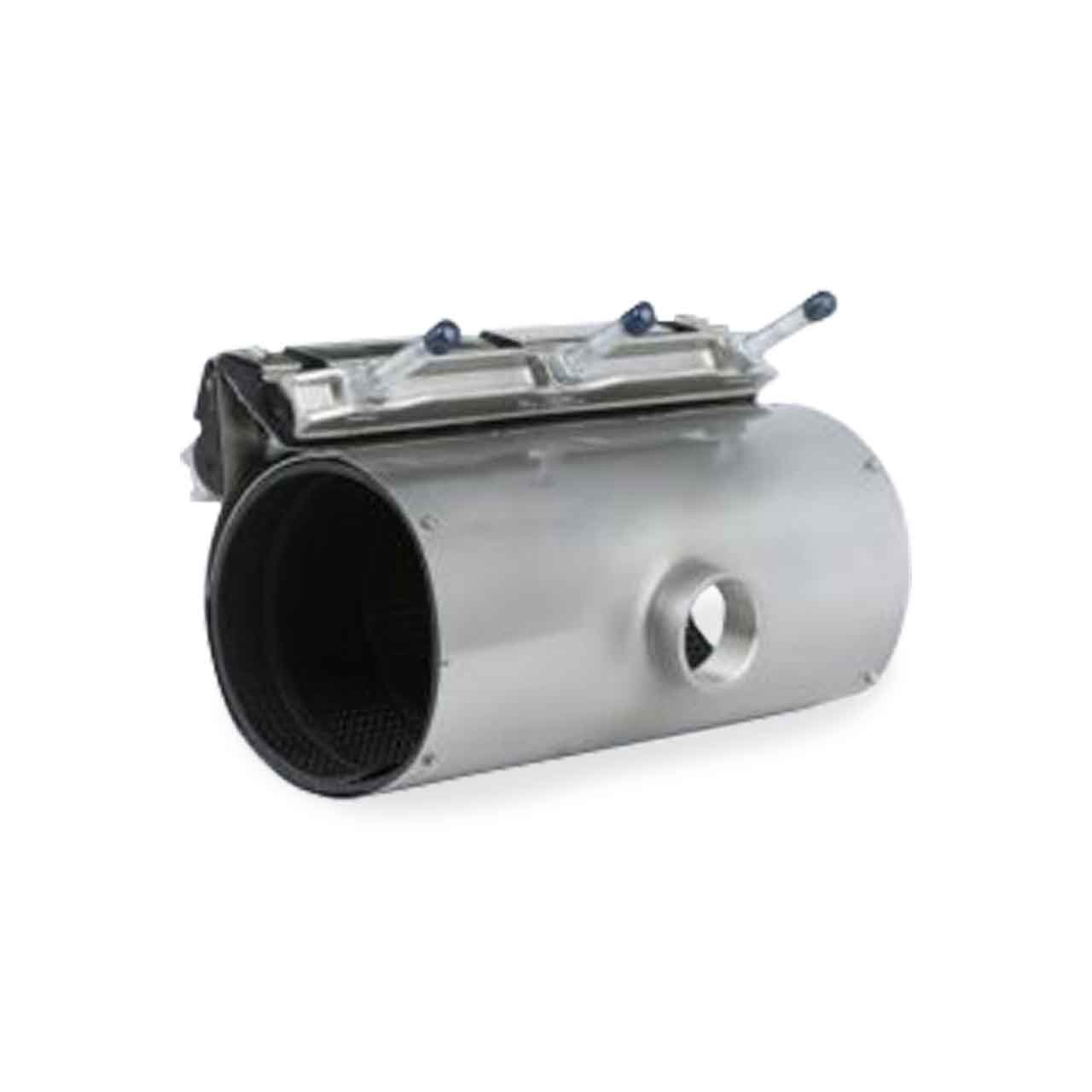

Hymax 238-56-0218-100C-10 ND 8.0" EPDM 15" Tapped Clamp w/ Outlet
Hymax 238-56-0218-100C-10 ND 8.0" EPDM 15" Tapped Clamp w/ Outlet
SKU : HMX238-56-0218-100C-10
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Hymax
There are two product types in the HYMAX CLAMP family - HYMAX CLAMP Wraparound Repair Clamp and new HYMAX TAPPED CLAMP.
HYMAX CLAMP wide-range stainless steel clamps are excellent for repairing holes as well as longitudinal cracks in water pipes. Their special design substantially reduces inventory and on-vehicle product stock since one HYMAX pipe repair clamp can be used to replace up to three traditional competitors' clamps.
HYMAX Tapped Clamp connects to other applications off the main, underground and above ground.
Both HYMAX CLAMP products are extremely efficient and cost effective, reliable and easy to install. With only two bolts to tighten (in lengths up to 12"), HYMAX Clamp is one of a kind. The enforced bolt holders (registered patent) enable easy installation by one person working alone.
Hymax Tapped Clamp Features
- 238-56-0218-100C-10; 8.0" EPDM 15" Tapped Clamp w/Outlet
- Easy to Install-Starting with Only 2 Bolts
- Stainless Steel, Lightweight Monoblock Design
- Wide-Range, Replaces up to 3 Standard Products
- Strong and Anti-Corrosion Resistant
- Suitable for All Pipe Types
- Durable EPDM Gasket
Specifications
Specifications
Hymax Tapped Clamp Specifications
- Meets or Exceeds Standards AWWA C230, NSF-61 and NSF-372
- SIZE: 8.0" Nominal Diameter Pipe Size
- LENGTH: 15"
- PIPE O.D. RANGE: 8.60 - 9.40
- CC OUTLET SIZE: 1.0"
- WORKING PRESSURE: 150 PSI
- RATED PRESSURE: 225 PSI
- WORKING TEMPERATURE: -20°F up to +180°F
- TORQUE: 95 FT-LBS
- MATERIALS:
- BODY: AISI 304 Stainless Steel
- PRESSURE-ASSISTED GASKET: EPDM Compounded for Water and Sewage. Meets NSF-61 and NSF-372 for Contact with Drinking Water.
- GASKET BRIDGE: AISI 304 Stainless Steel
- COMPRESSION BEAM: AISI 304/304L Casting (ASTM-A351-CF8)
- ADJUSTING PIN: AISI 304/304L Casting (ASTM-A351-CF8)
- LUGS: Polycarbonate
- NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Zinc-Based Anti-Galling Coating.
- THREAD TAP CC: AISI 304 Stainless Steel
