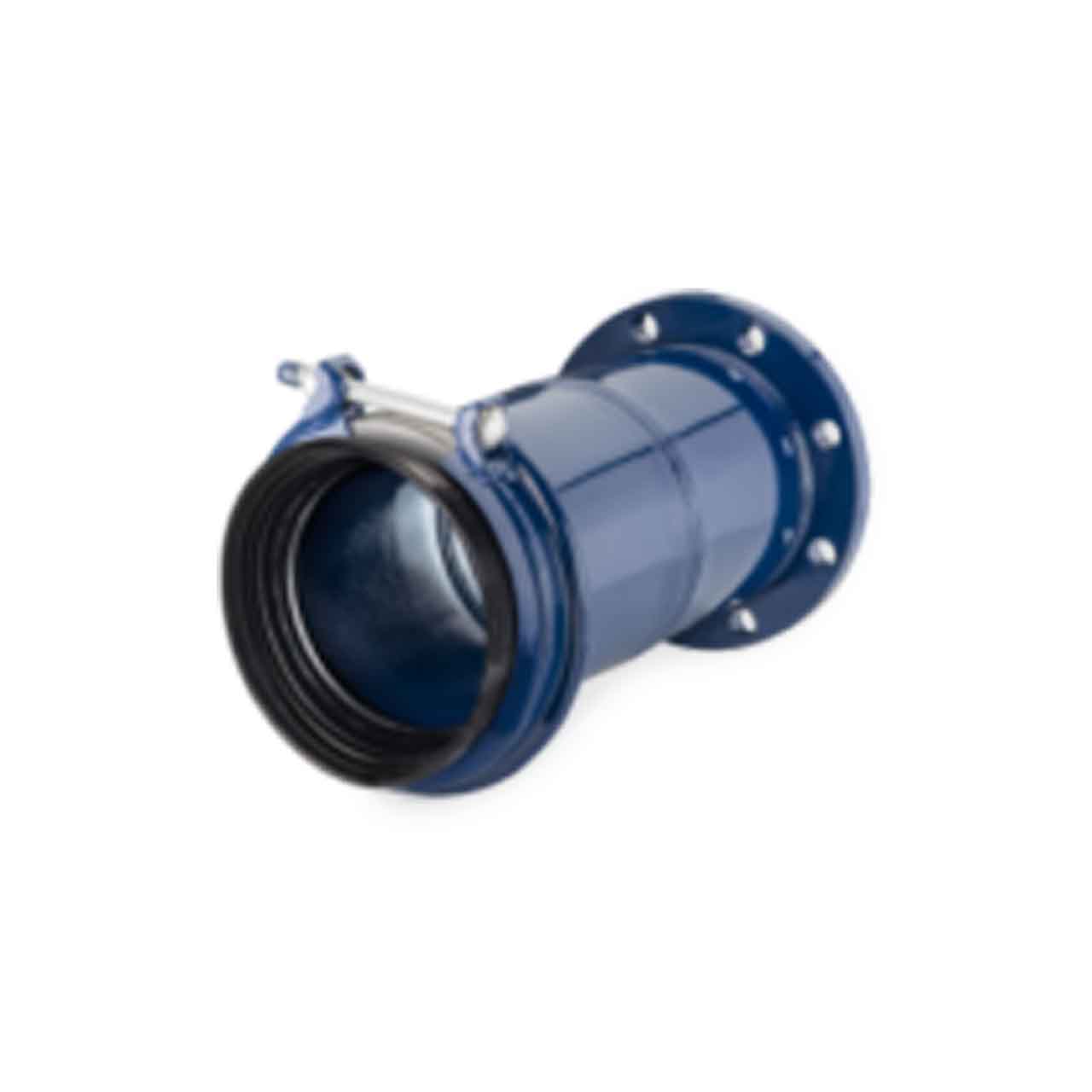

Hymax 2 974-54-03008812 ND 3.0" Flange Adapter Long Body EPDM 3.46-4.33 O.D.

Hymax 2 974-54-03008812 ND 3.0" Flange Adapter Long Body EPDM 3.46-4.33 O.D.

Usually ships within 1 week

SKU : HMX974-54-03008812

In Stock Quantity:0

:
Brand : Hymax
$632.75 USD
Shipping calculated at checkout.

Description

Wide-Range HYMAX Flange Adapter Long Body connects to any flanged device such as valves, pumps and other devices with a variety of pipe circumferences and materials up to 2.1" range.

They connect to any flanged device, such as flanged PVC pipe, flanged steel pipe, flanged valve and more.

Long Flange Adapter couplings are typically used when there is uncertainity regarding the gap between the pipes.

Hymax 2 Flange Adapter Long Body Features

  • 974-54-03008812; 3.0" Flange Adapter Long Body EPDM
  • Advanced Wide-Range Coupling with A Patented Flip Gasket
  • Eliminates Gasket Removal Mistakes and Maximizes Installer Work Efficiency
  • Using the Game-Changing Hymax Technology, Proven in over 1M Installations in teh US
  • Suitable for all Types of Pipes - Ductile Iron, Cast Iron, Steel, Copper, PE, PVC, AC, GRP
  • Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
  • Lightweight Construction Enables Fast and Easy Installation
  • Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage

Specifications

Hymax 2 Flange Adapter Long Body Specifications

  • Meets or Exceeds Standards AWWA C-219, NSF 61 and NSF 372
  • PIPE SIZE: 3.0" Nominal Diameter Pipe Size
  • FLANGE SIZE: 3.0"
  • PIPE O.D. RANGE: 3.46 - 4.33
  • WORKING PRESSURE: 175 PSI
  • RATED PRESSURE: 262 PSI
  • TORQUE: 50 FT-LBS
  • MATERIALS:
    • FLANGED BODY: ASTM A53 Grade A Steel
    • FLANGE: Meets ANSI B16.5
    • END RINGS: ASTM A283/A283M Grade C Steel
    • SPHERICAL SPACERS: AISI 304L Stainless Steel
    • GASKET: EPDM Compounded for Water and Sewage, Meets International Standards for Contact with Drinking Water
    • BRIDGE: AISI 304 Stainless Steel
    • COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14MIL
    • NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Hymax 2 Flange Adapter Long Body Product Resources


Download HYMAX 2 Family Brochure

Download HYMAX 2 Flange Adapter Long Body Specifications

Download HYMAX 2 Flange Adapter Long Body Installation Instructions
