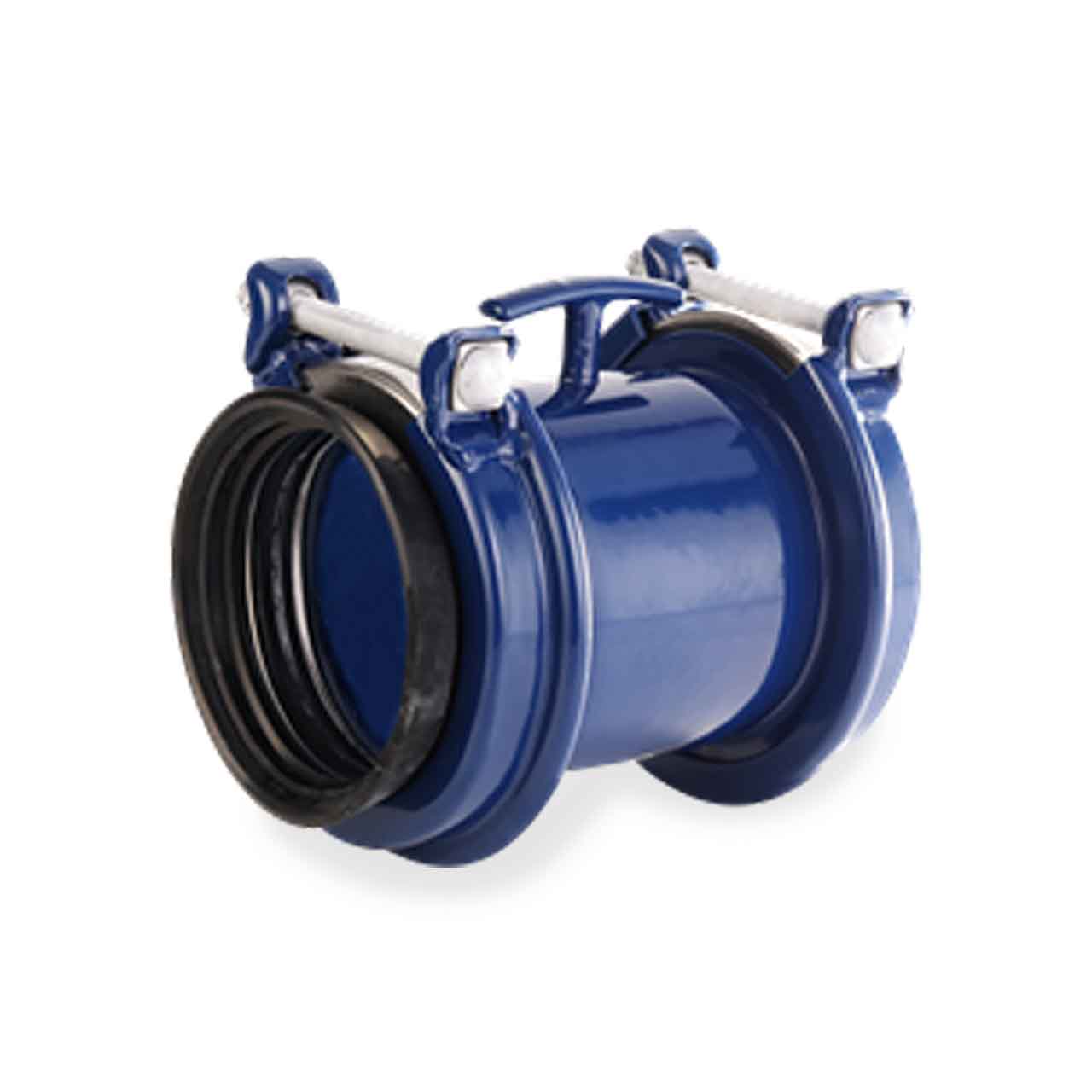

Hymax 2 888-54-0108-16 ND 4.0" EPDM Cathodic Protection Coupling 4.25-5.63 O.D.

Hymax 2 888-54-0108-16 ND 4.0" EPDM Cathodic Protection Coupling 4.25-5.63 O.D.

Usually ships within 1 week

SKU : HMX888-54-0108-16

In Stock Quantity:0

:
Brand : Hymax
$741.64 USD
Shipping calculated at checkout.

Description

Wide-Range HYMAX 2 Coupling's with anti-corrosion cathodic protection feature connects two pipes of the same or different OD circumferences and materials. With only 2 bolts to close, it provides the fastest option of joining pipes.

Hymax 2 Cathodic Flip Coupling Features

  • 888-54-0108-16; 4.0" EPDM Cathodic Protection Flip Coupling
  • Eliminates Gasket Removal Mistakes and Maximizes Installers' Efficiency
  • Hymax Coupling with Cathodic Protection
  • Using Game-Changing Hymax Technology, Proven in Over 1M Installations in the US
  • Suitable for all Metal Pipes
  • Patented Hydraulically-Assisted Gasket with 2-Stage Sealing
  • Lightweight Construction Enables Fast and Easy Installation
  • Allows 4° Dynamic Deflection on Each End, Reducing Future Pipe Damage
  • One Product can Connect Pipes of Two Different Materials

Specifications

Hymax 2 Cathodic Flip Coupling Specifications

  • Meets or Exceeds Standards AWWA C-219, NSF 61,and NSF 372
  • SIZE: 4.0" Nominal Pipe Size
  • PIPE O.D. RANGE: 4.25 - 5.63
  • WORKING PRESSURE: 260 PSI
  • RATED PRESSURE: 390 PSI
  • TORQUE: 65 FT-LBS
  • MATERIALS:
    • END RINGS: ASTM A283/A283M Grade C Steel
    • CENTER RING: ASTM A53 Grade A Steel
    • GASKET: EPDM Compounded for Water and Sewage, Meets International Standards for Contact with Drinking Water
    • BRIDGE: AISI 304 Stainless Steel
    • SPHERICAL SPACERS: AISI 304 Stainless Steel
    • COATING: 100% Fusion Bonded for Enhanced Corrosion Protection. Nominal Thickness 14MIL
    • NUTS AND BOLTS: AISI 304 Stainless Steel. Rolled Thread and Anti-Galling Coating
    • PROTECTION PARTS CATHODIC: AISI 304 Stainless Steel

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Hymax 2 Cathodic Flip Coupling Product Resources


Download HYMAX 2 Family Brochure

Download HYMAX 2 Cathodic Coupling Specifications

Download HYMAX 2 Cathodic Coupling Installation Instructions
